Digital pressure sensor, pressure transducer,cheap air pressure sensor
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Hunan, China | Brand Name: | F&C | Model Number: | FKP60P-011N-F3 |
Usage: | Pressure Sensor | Theory: | Current Sensor | Output: | Analog Sensor |
Product Description
Feature of FKP60 Series pressure sensor
1.Three-color dual digital LCD display
2.The unit displayed directly on the screen.
3.Two-way switch and one analog output.
4.Using the connector type and outler.
5.Provide positive,negative,and even pressure product.
I can be reached by cellphone:86-15173188970 and Skype:Lulu_Lu1995
Product Application
Specification
FKP Series air pressure sensor | |||
Types | FKP60P-011N-F3 | FKP60V-011N-F3 | FKP60C-011N-F3 |
Rated pressure range | 0Mpa~1.0Mpa | -100Mpa~0Mpa | -100Mpa~100Mpa |
Set pressure range | 0Mpa~1.0Mpa | -100Mpa~0Mpa | -100Mpa~100Mpa |
Resistance to pressure | 1.5Mpa | 500kpa | 500kpa |
Type of pressure | Standard position pressure | ||
Applicable gas | Non-corrosive gases | ||
Power supply voltage | 12~24VDC±10% | ||
Current consumption | 24V 25mA Max 12V 45mA Max | ||
Compare output | NPN.NO.NC output:80mA/24VDC Max | ||
PNP.NO.NC output:80mA/24VDC | |||
Repeatability | ±0.5%FS | ||
Reaction time | 2.5ms,5ms,10ms,25ms,50ms,100ms,250ms,500ms,1000ms,5000ms | ||
Analog voltage output | Positive/negative)output voltage:1.0~5.0VDC(or smaller),zero:1.0V±5%F.S margin:4V±5%F.S linearity of ±1%F.S output impedance:1KΩ | ||
Composite pressure)output voltage:1.0~5.0VDC(or smaller),zero:3.0V±5%F.S margin:4V±5%F.S linearity of ±1%F.S output impedance:1KΩ | |||
External input | NO | ||
Temperature range | Opreating temperature:0~55°C Storage temperature:-10°C-+60°Cwithout icing or condensation | ||
Humidity range | 35%-85% Relative humidity | ||
Temperature characteristics | ±1%F.S (25°C) | ||
Degree of protection | IP40 | ||
Meterial | Shell:Nylon +fiverglass LCD:LCDpropylene pressure port:SUS303 ring:H-NBR switch:Sollicone Rubber | ||
Dimensions size | 30*30*25mm (Plastic part)/30*30*43(including connectors) | ||
Weight | About 80g (barometer body+user connection port connector) | ||
Standard | Terminal wire 2.0m,1 manual,1 box | ||
Option | 1 Mouning bracket |
Digital pressure sensor, pressure transducer,cheap air pressure sensor

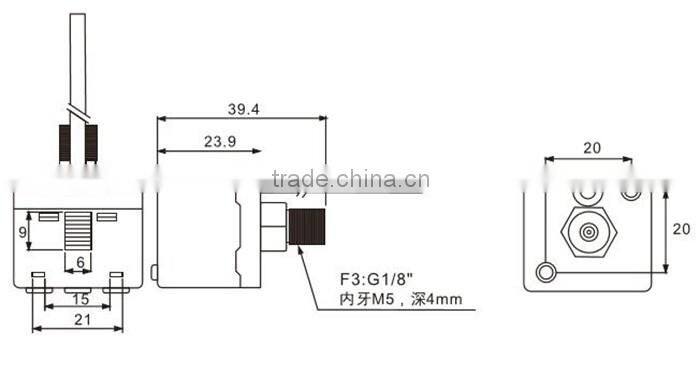

Dimension Drawing
Certifications
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging&Shipping
1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
