Dual axis solar tracking system with high quality

Specifications

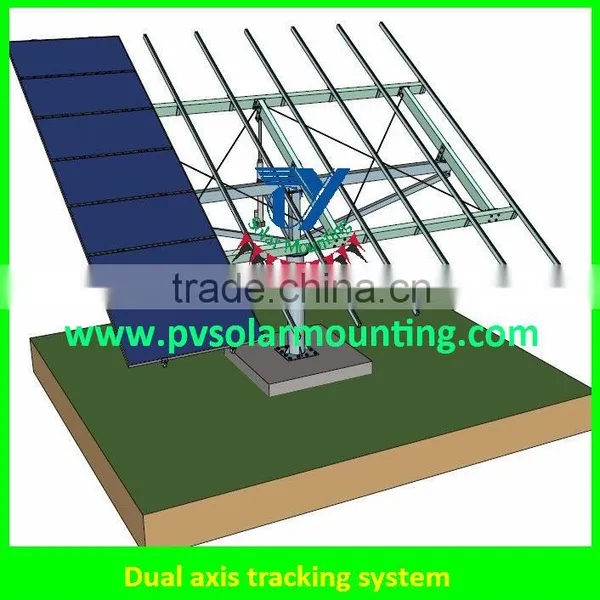

Dual axis solar tracking system
1.Competitive price
2.Professional and concise design
3.High quality
4.Quick delivery

Dual axis solar tracking system

This  Dual axis solar tracking system is designed based on mechanics and is made of high-quality aluminum and hot dip galvanized steel, so it can have 25-year service life. Besides, we promise with 10 years of warranty. The generating efficiency will be improved by 30%-40%. Because when the sun is changing, the tracker is also changing accordingly, the absorption of the solar radiation will be improved. Besides, because of the emergency device, if the wind is larger than the wind resistance of the Dual axis solar tracking system , it can adjust the angle to horizontal automatically in order to decrease the wind load. Finally, our engineer will calculate the suitable panel capacity for you according to your panel dimension.









Dual axis solar tracking system

Technical data:





Azimuth control	Drive	Worm drive(Roller bearing)
	Control Angle (Horizontal)	270°
	Motor	2,800PRM(120W/DC240V)
Elevation	Drive	Liner actuator
	Control Angle (Vertical)	-45 °to +45 °
	Motor	2,800RPM(120W/DC240V)/(Ration288:1→10.4RPM)
Max. Power consumption		160W
Main Materials		Galvanized steel
Tracking method		Standard: Solar-Sensor  tracking/Optional: Data-tracking
Controller		Auto mode/Manual mode
Tracking accuracy tolerance		±0.1°
Min. sunlight for tracking		300W/m²
Foundation		Concrete foundation
Max. Wind load	Normal operation	14m/s(50km/h)
	Safety mode(0°)	35m/s(126km/h)
	At45°angle(Constant)	25m/s(90km/h)
	At 45°angle(Instant)	66.5m/s(230km/h)
Night mode(Horizontal idling mode		1)Below300W/m²over2hours.  2)Warnings from sensors
Generating efficiency improved		30% - 40%
Warranty		Mechanical parts:10years Electrical parts: 1 year







 Dual axis solar tracking system ——CY-ZJ12



1. Install the panels:







2. Lifting the solar table:



3.  Panoramagram:





Why choose our CY Dual axis solar tracking

system ?







1. Easy installation.



The professional and concise design makes this  Dual axis solar tracking system install very easily. Some of the components have been pre-assembled at our factory. So it not only saves your installation time but labor. Your schedule will be shortened and budget will also be decreased accordingly.







2. High quality.



This  Dual axis solar tracking system has the certificates of RoSH, CE and ISO9001 with 25-year service life. Also we provide the 10 year of warranty.







3. Competitive price.



As we are a manufacturer, our price is very competitive in this market.







4. Design.



We have a professional engineering team who can provide you with the most economical and suitable design for your project according to your requirements.







5. Quick delivery



The safety package and quick delivery.
