Solar tracking:1. Easy installation.
2. Competitive price
3. Concise and professional design
4. Quick delivery
Solar tracking 5kw
This solar tracking is designed for large solar plants. The substructure of it is ground screw. So you do not have to pour the concrete foundation at the installation site. The pile machine will save your installation time and labor. Because of the ground screw substructure, it only suit for the soil which do not have large rocks underground. Besides, some components have been pre-assembled at our factory, so it can also save your installation time and labor. So your project schedule will be shortened and your budget will also be decreased accordingly.
This solar tracking is made of high-quality aluminum and hot dip galvanized steel which can aviod corrosion. Because of the high quality, it can reach 25 years of service life and furthermore, we promise with 10-year warranty.
This solar tracking has a emergency device. When the wind is larger than the wind load it can sustain, it will change the inclination to horizontal in order to lower the wind load.
The panel capacity of our solar tracking system 5kw can be changable.

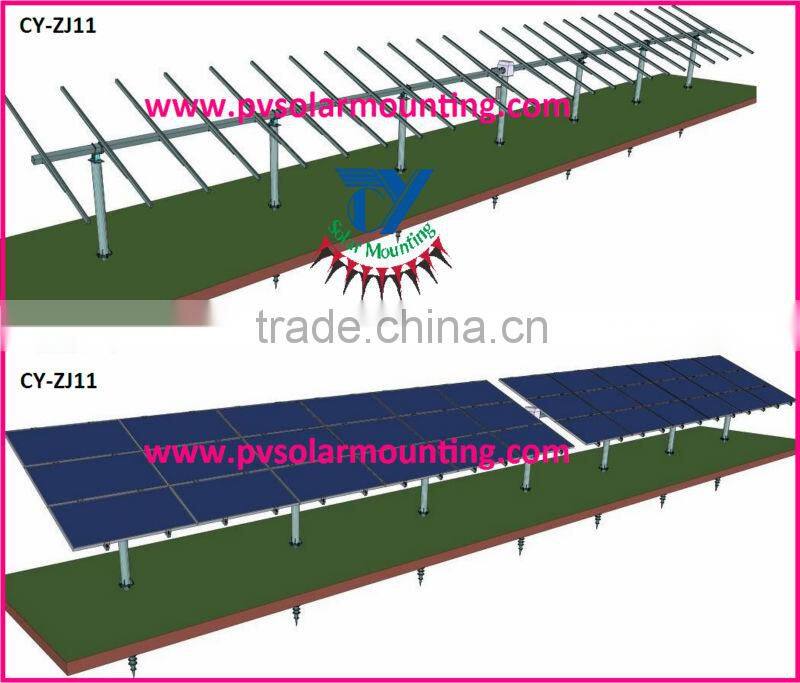

Solar tracking with ground screw
Technical data:
|
Azimuth control |
Drive |
||
Control Angle (Horizontal) |
|||
Motor |
|||
|
Elevation |
Drive |
Worm drive (Roller bearing ) |
|
Control Angle (Vertical) |
-45 °to +45 ° |
||
Motor |
2,800RPM(120W/DC240V)/(Ration288:1→10.4RPM) |
||
Max. Power consumption |
120W |
||
Main Materials |
Galvanized steel |
||
Tracking method |
Standard: Solar-Sensor tracking/Optional: Data-tracking |
||
Controller |
Auto mode/Manual mode |
||
Min. sunlight for tracking |
300W/m² |
||
Foundation |
|
||
|
Max. Wind load |
Normal operation |
14m/s(50km/h) |
|
Safety mode(0°) |
35m/s(126km/h) |
||
At45°angle(Constant) |
25m/s(90km/h) |
||
At 45°angle(Instant) |
66.5m/s(230km/h) |
||
Night mode(Horizontal idling mode |
1)Below300W/m²over2hours. 2)Warnings from sensors |
||
Warranty |
Mechanical parts:10years Electrical parts: 1 year |
||
Why choose our CY solar tracking system?
1. Easy installation.
The professional design makes this solar tracking system 5kw install very easily. So it not only saves your installation time but labor. Your schedule will be shortened and budget will also be decreased accordingly.
2. High quality.
This solar tracking system has the certificates of RoSH, CE and ISO9001 with 25-year service life. Also we provide the 10 year of warranty.
3. Competitive price.
As we are a manufacturer, our price is very competitive in this market.
4. Design.
We have a professional engineering team who can provide you with the most economical and suitable design for your project according to your requirements.
5. Quick delivery
The safety package and quick delivery.
Certificate of solar tracking system:
