Help CenterSolar Tracking System Based on Concrete Foundation
Related Products
-
Solar 2 Axis Tracker With Concrete Foundation Quality ChoiceUS$ 1,000 - 2,000MOQ: 500 Kilowatts -
Solar Dual Axis Tracker With High QualityUS$ 1,000 - 2,000MOQ: 500 Kilowatts
-
Solar Panel Tracking System Based on Concrete FoundationUS$ 0.2 - 0.35MOQ: 500 Kilowatts
-
Dual Axis Solar Tracking System With High QualityUS$ 0.5 - 0.7MOQ: 500 Kilowatts
-
Solar Tracking System 10kwUS$ 0.5 - 0.7MOQ: 500 Kilowatts
Specifications
Solar tracking system:1. Easy installation.
2. Competitive price.
3. Concise and professional design.
4. Quick delivery
Solar tracking system
This solar tracking system is designed for large solar plants. The substructure of it is concrete foundation. So you have to pour the concrete foundation at the installation site. Because of the concrete foundation substructure, it can suit for all types of soil. Besides, some components have been pre-assembled at our factory, so it can also save your installation time and labor. So your project schedule will be shortened and your budget will also be decreased accordingly.
This solar tracking system is made of high-quality aluminum and hot dip galvanized steel which can aviod corrosion. Because of the high quality, it can reach 25 years of service life and furthermore, we promise with 10-year warranty.
This solar tracking system has a emergency device. When the wind is larger than the wind load it can sustain, it will change the inclination to horizontal in order to lower the wind load.
The panel capacity of our single axis tracker can be changable.
Solar tracking system based on concrete foundation

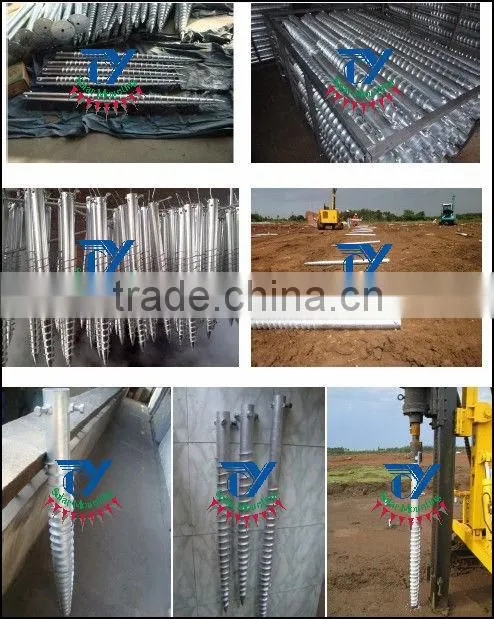

The top 7 advantages of ground screw:
| Advantage | Ground screw |
| 1. Single processes | There are several steps including construction alignment, digging, concrete formwork, wiring reinforcement and so on. |
| 2.Quick contruction speed | A 1MW project needs 18 individuals woking 20 days. |
| 3.Low cost | The installation at leastt costs 0.02USD/watt which costs twice as much as. |
| 4.Assured processing quality | Extensive construction can not make sure appearance, size of the fundation. |
| 5.Low requirement on environment | It can't be constructed on snowy or extremly cold days and also has requirements on water. |
| 6.Low demands on workers | The construction work must need professional and experienced people to handle with. |
| 7.flexible configuration of workers | It needs a lot of worker for the construction work is difficult. |
Technical data:
|
Azimuth control |
Drive |
||
Control Angle (Horizontal) |
|||
Motor |
|||
|
Elevation |
Drive |
Worm drive (Roller bearing ) |
|
Control Angle (Vertical) |
-45 °to +45 ° |
||
Motor |
2,800RPM(120W/DC240V)/(Ration288:1→10.4RPM) |
||
Max. Power consumption |
120W |
||
Main Materials |
Galvanized steel |
||
Tracking method |
Standard: Solar-Sensor tracking/Optional: Data-tracking |
||
Controller |
Auto mode/Manual mode |
||
Min. sunlight for tracking |
300W/m² |
||
Foundation |
|
||
|
Max. Wind load |
Normal operation |
14m/s(50km/h) |
|
Safety mode(0°) |
35m/s(126km/h) |
||
At45°angle(Constant) |
25m/s(90km/h) |
||
At 45°angle(Instant) |
66.5m/s(230km/h) |
||
Night mode(Horizontal idling mode |
1)Below300W/m²over2hours. 2)Warnings from sensors |
||
Warranty |
Mechanical parts:10years Electrical parts: 1 year |
||
Solar tracking system based on concrete foundation
Why choose our CY solar tracking system?
1. Easy installation.
The professional design makes this solar tracking system install very easily. So it not only saves your installation time but labor. Your schedule will be shortened and budget will also be decreased accordingly.
2. High quality.
This solar tracking system has the certificates of RoSH, CE and ISO9001 with 25-year service life. Also we provide the 10 year of warranty.
3. Competitive price.
As we are a manufacturer, our price is very competitive in this market.
4. Design.
We have a professional engineering team who can provide you with the most economical and suitable design for your project according to your requirements.
5. Quick delivery
The safety package and quick delivery.
