Machine Features:

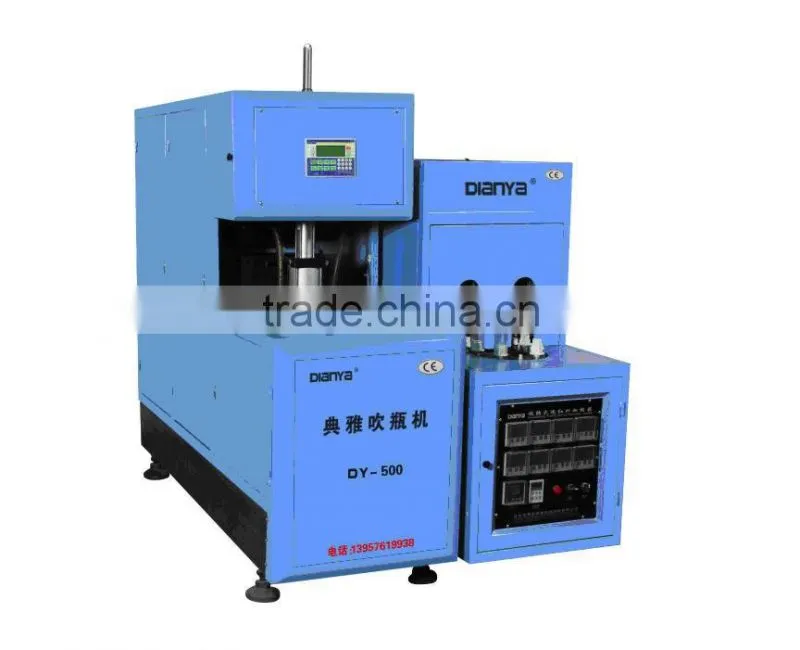

1. DY-500 Semi automatic blow moulding machine,is CE standard |

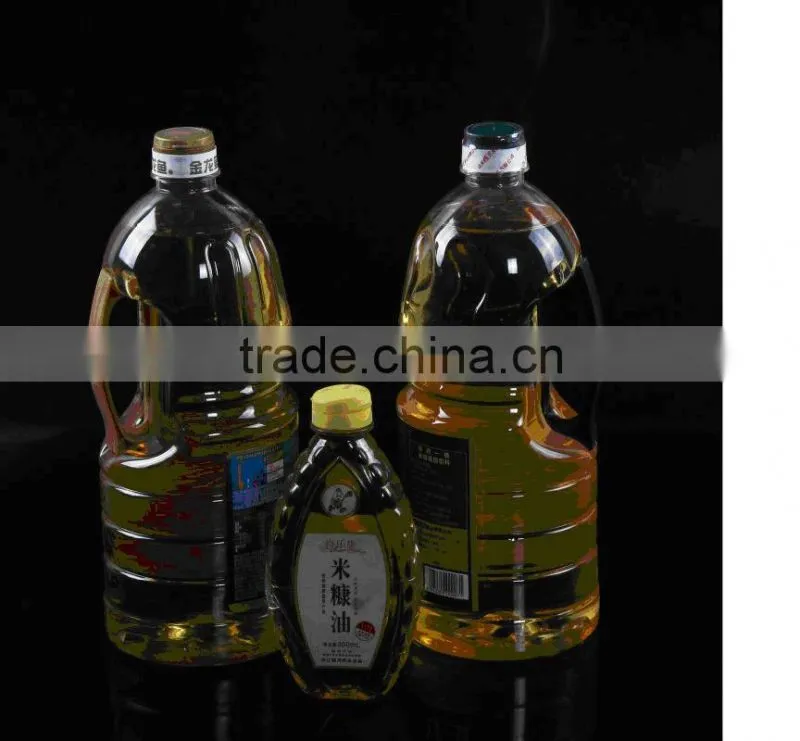

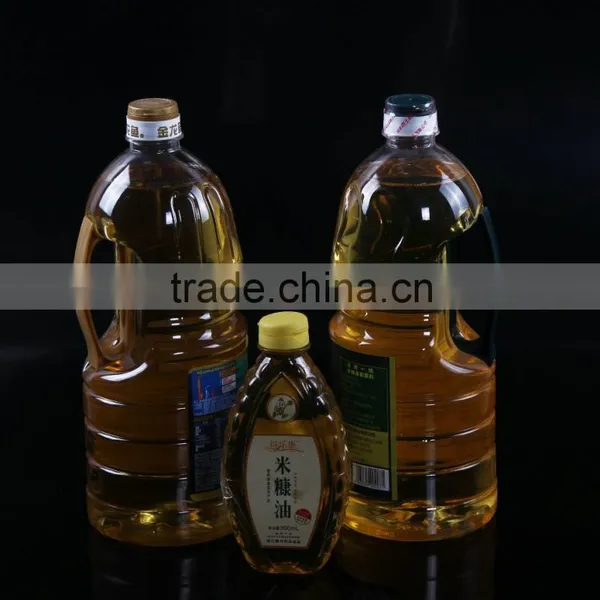

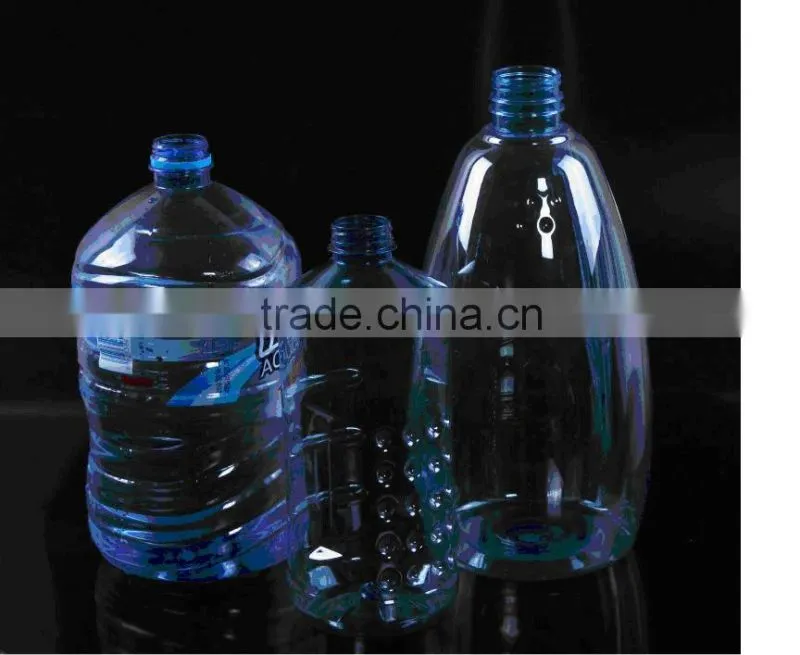

2. Produce bottle from 0.1L to 5L(1-cavity),PET bottle,for mineral water bottles,soda bottles,cola bottles ,and hot fill bottles |
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01 second |
4. Use infrared heating lamps,penetrating power strong,embryo heated while rotation, orbital revolution,heating uniformity,rapid and reliable |
5. Independent Temperature Control for different heating lamp to get ideal preform heating results |
6. Each machine has a saftey self-locking device,when a process have problem,the program will automatically switch to a safe state |
7. The bottle scrap rate less than 0.2% |
8. Operated only by one person without special training |
9. Simple installation & startup adjustment |
Manufacturing Process:
Technical parameter:
Type |
DY-500 |
|
Output |
For 5L bottle 550pcs/h |
|
Product Specifications |
Bottle neck size |
15mm-80mm |
Bottle body diameter |
30mm-100mm |
|
Bottle height |
50mm-350mm |
|
|
Mold Specifications |
Cavity |
1cavity |
Mold thickness |
100~250mm |
|
Max stretching distance |
350*520mm |
|
Power |
Power Voltage |
380v 3Phase /220v 3Phase 50/60HZ |
|
Installed power / Actual power |
18kw/10kw |
|
Air Source |
High pressure air compressor |
1.2m3/min 3.0MPa |
Air dryer |
2.0m3/min 3.0MPa 1set |
|
Water chiller |
Chilled water yield |
15L/min |
Main machine size |
Length*width*height/weight |
1850*650*1750mm/850kg |
Heater size |
Length*width*height/weight |
1850*650*1650mm/350kg |
1.your inquiry related to our product & price will be replied within 24hours.
2.Well-trained & experienced staff are to answer all your inquires in English of course
3.Your business relationship with us will be confidential to any third party.
4.Good after sale service offered, please get back if you got question
1] Q:Are you a trading company or a manufactory? For example- blow molding machine
A: We own a factory ourselves, and we can assure the quality we manufactured.
[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, is located in Huangyan,Taizhou,Zhejiang and
3 hours by train from Shanghai, 2 hours by air from Guangzhou.
[3] Q:What packaging of machines after inspection before delivery?
A: 1. standard film packing
2. wooden case packing is available
3.one machine and some auxiliary equipment are in one container
4.check by clients before packing and shipment
5.clients' special packing request is available.
