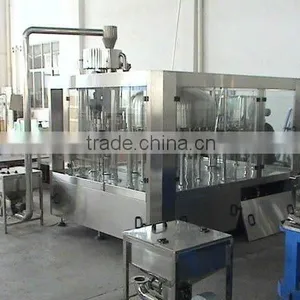

Rinser Filling Capping 3 in 1 Machine

Specifications

The equipment is used in production of minerals and pure water packed in polyester bottles Washing-filling and capping

  Product details

 The equipment is used in production of non—soda drink of minerals and pure water packed in polyester bottles Washing-filling and,capping are integrated in one machine The most advanced technology from Japan and Germany is employed in the design The gravity fixed liquid surface filling is used The filling is fast,the amount of liquid is accurately controlled and the dropping and leakage are avoided . Spring cramps are used in the bottle washing process The empty bottles can be turned over 180°along the conveying rail There a re two times 0fInternal and external washing ,the efficiency of bottle washing is high .The magnetic torque is used for screw capping .The power of screw capping can be adjusted without steps .The power of the screw capping can also be fixed ,and the caps will not be damaged ,the capping is reliable .The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed ,and the caps will not be damaged , the capping is reliable .The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically.The filling and capping will be stopped automatically when there is no bottle When bottles are cramped wrongly or when caps a re not available ,the machine Can be stopped automatically . The frequency changing technology is used to adjust the operation speed Sleeplessly The production capacity can be displayed digitally and can be displayed and can be adjusted conve.



Model	CGF16-12-6	CGF18-18-6	CGF24-24-8	CGF32-32-10
Production Capacity(500mal)(b/h)	2000-4000	4000-6000	8000-10000	12000-15000(0.5L)
Filling Precision	≤±5mm(Liquid level)
Polyester Bottle Standard(mm)	Bottle DiameterΦ40-Φ80 Height  130-280	Bottle DiameterΦ50-Φ100,Height  150-320
Suitable Cap Shape	Plastic Screw Cap
Water Pressure of Washing Bottle(Mpa)	0.18
Water Consumption for Water Bottle(kg/h)	800	1600	2500	3500
Spraying Position	5	5	6	12
Dripping Bottle Position	3	3	3.5	7
Gas Source Pressure (Mpa)	Pressure
Gas Consumption(m³/min)	0.3	0.3	0.4	0.5
Total Power(Kw)	4.23	5.03	6.57	8.63
Total Weight(Kg)	2000	3500	5500	8000
Dimension(L*W*H)mm	2100*1500*2200	2450*1800*2200	2750*2180*2200	3500*2200*2250
