Help CenterProfessional Manufacturer SLNS Series Inflow Pressure Screen
Related Products

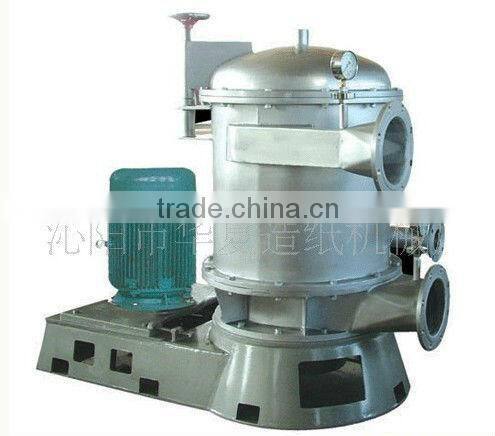

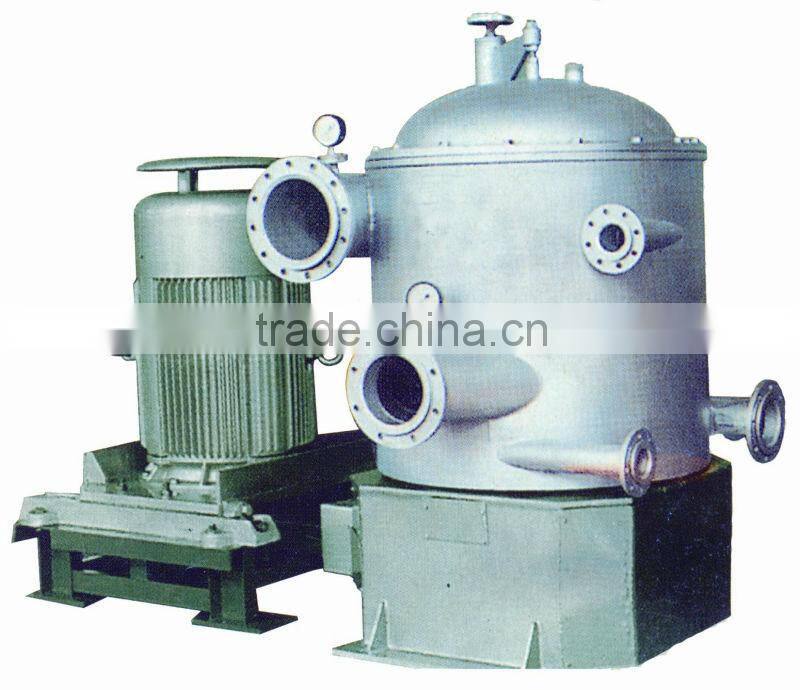

The SLNS Series pressure screen
Use: Because the slurry enters into sieve with high pressure tangential. In the effect of centrifugal force, before entering the sieve drum, the fibers and the coarse impurities have been carried separation. Qualified fibers rely on the pressure difference of into and out of the pulp mouth to pass sieve drum. Meanwhile, the high-speed rotation of the flap can purities the sieve drum surface slits. Therefore, in the same power, the same screening area equal conditions, the sieve has high screening efficiency and better quality of the pulp than other types of screening equipment.
Technical parameters:
Model |
SLNS-1 |
SLNS-2 |
SLNS-3 |
SLNS-4 |
Drum sieve area(m2) |
0.6 |
1.2 |
2 |
3 |
Drum sieve slit width(mm) |
0.15-0.55 |
|||
Into the slurry pressure(mpa) |
0.1-0.25 |
|||
Out of the slurry pressure(mpa) |
0.01-0.04 |
|||
Screening concentration(mpa) |
1.0-2.0 |
|||
Production capacity(t/d) |
20-60 |
25-90 |
40-150 |
50-250 |
Motor Power(kw) |
15-18.5 |
22-30 |
37-45 |
55-75 |
