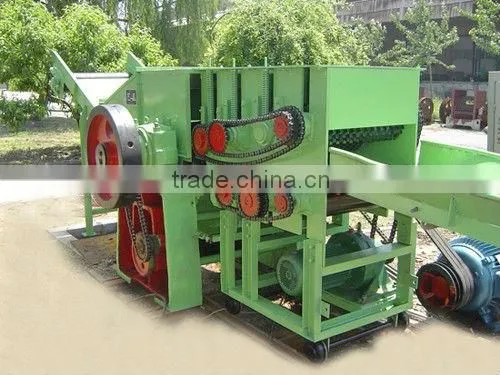

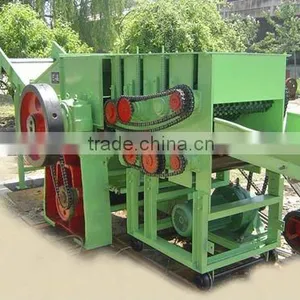

Help CenterGood Quality ZZQ Series Knife Roll Bamboo Cutter
Related Products
.
Usage:
Knife roll and bamboo cutter matched with deduster and dust collecting equipment and electrical control devices are the first process in process flows. The raw materials after processing are sent to cooking equipment through the conveyor (or prepreg machine) and then cooking again.
Technical parameters:
Item |
Model |
||
ZZQ3 |
ZZQ5 |
ZZQ6 |
|
production capacity(t/h) |
6-10 |
16-20 |
30-35 |
knife roll rotate speed (r/min) |
300 |
500 |
500 |
knife edge tactical diameter(mm) |
φ425 |
φ600 |
φ730 |
|
fly-cutter numbers( pieces) |
3 |
3 |
4 |
bed knife numbers |
1 |
1 |
1 |
cutting materials length(mm) |
20-25 |
20-25 |
20-25 |
machine weight(kg)(without motor) |
6700 |
11500 |
22500 |
overall dimension(mm) |
10295×2900×1850 |
31020×3650×220 |
22612×4147×3168 |
