Specifications
STEEL COIL SLITTING LINE1.Easy control
2.Nice appearance
3.Low noise
4.High speed
Automatic and high speed slitting line

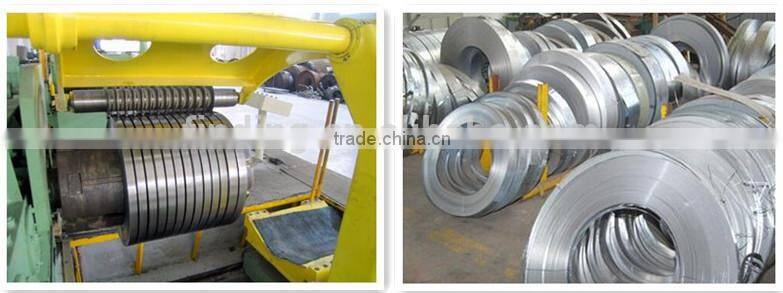

This line is used for coil with different specifications,through uncoiling-slitting-recoiling to needed width coil for the application of all kinds of stamping line.This line is reasonable in layout,easy operation,high level of automation,high productivity which could processing all kinds of CR and HR coil,silicon,stainless coil,colored coil,aluminum coil,galvanized coil or painted coil.
This line is broadly applying in metal plate processing industry,like car,container,household,appliance,packing,construction material,etc.

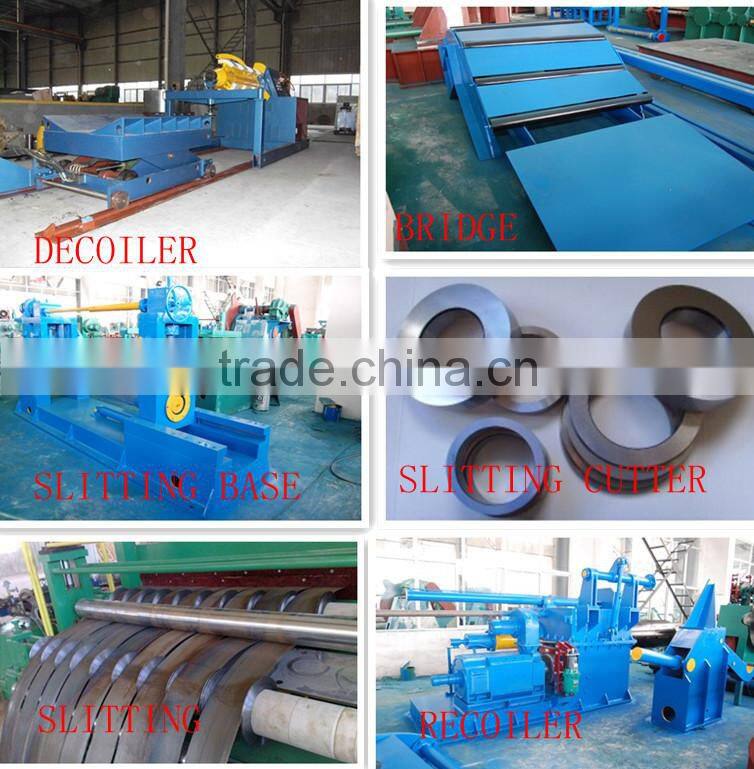

This line is composed of coil car,uncoiler,slitter,scrap,winder,shearer cutting coil head or tail,tension pad recoiler,etc.as well as pendulum middle bridge,pinch device,steering device.
This line is an auto coil processing equipment which integrate mechanical,electrical,hydraulic,pneumatic all together.
Main technical parameter:
Model 2x1300 2x1600 3x1300 3x1600
Coil thickness(mm) 0.3-2 0.3-2 0.5-3 0.5-3
Coil width(mm) 600-1300 600-1600 600-1300 600-1600
Slitting strips 2-30 2-30 2-15 2-15
Strip width precision(mm) ±0.1 ±0.1 ±0.15 ±0.15
Line speed(mm) 10-120 10-120 10-120 10-120
Coil weight(T) 10 15 20 30
Coil I.D.(mm) Φ508 Φ508 Φ508 Φ610 Φ508 Φ610
Recoiling I.D.(mm) Φ508 Φ508 Φ508 Φ610
Main shaft Dia 205 240 240 240
we also make all kinds of roll forming machinery .
