Specifications
1.automatic extrusion blowing and printing at same time.2.printing in both side
3.inverter motor and hard tooth reduction

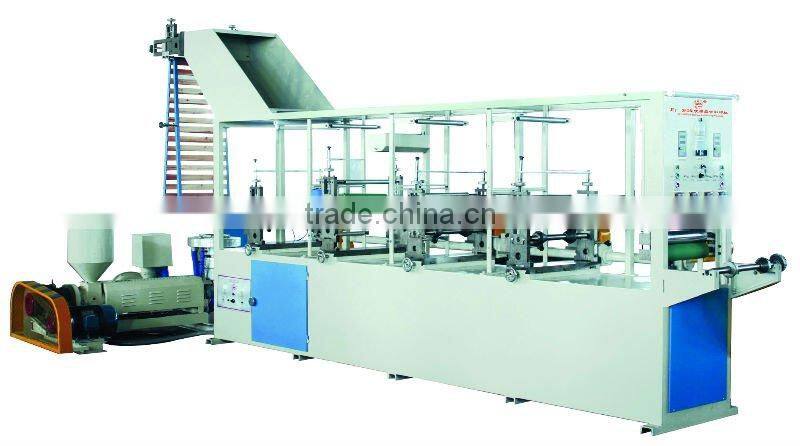

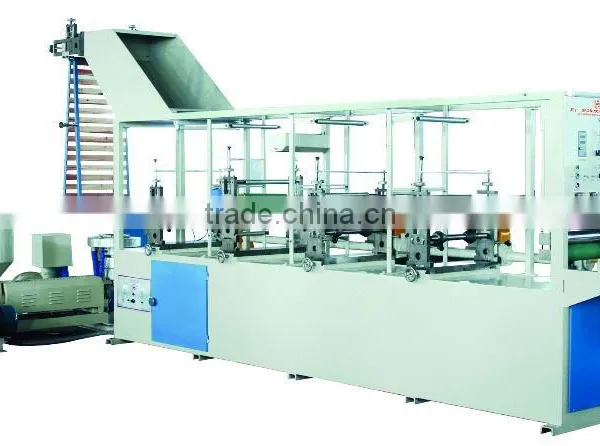

this machine can blowing and priting plastic film at sametime with prniting in both side. it suitable for PE and PP
Main technical parameter
| 1. Screw: pole | φ45, L/D: 28:1 |
| 2. Blowing and printing width | 100~350(mm), printing width: 420mm |
| 3. Film thickness | LDPE: 0.015~0.08mm, HDPE 0.01~0.03mm |
| 4. Production capacity | 10~35 kg/h |
| 5. Printing speed | 0~40m/min |
| 6. Gravure installation size | length 420 mm, diameter:75~180(mm). |
| 7. gear box | High strength hard tooth surface reduction gear box. |
| 8. corona | Intellectualized digital corona treatment |
| 9. total power | 25kw |
| 10 total weight | 1500 kg |
| 11. Overall size(L×W×H) | 6000×1300×2500mm. |
| 12. tempreture controler | digital tempreture controlling systerm |
Main feature and performance
1. Wide application, several purposes(It can blow HDPE and LDPE, blowing and printing at the same time, or single blowing and single printing);
2. Advanced structure, easy operation, correct overprint, easy maintenance;
3. Saving Raw material, reliable quality. It has following advantages which we compared with same line machines:
a. Bright color, strong fastness;
b. Blowing and printing at the same time, exact overprint;
c. Less power consumption, less labor, saving working time, less cost, etc.
YOUR SUCCESS OUR BUSINESS ,
BEST REGARDS!
JIANGYIN CITY HONGHUA MACHINERY AND EQUIPMENT CO.,LTD
