Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > JSY-350 Film Extrusion Blowing and Printing Machine (vest Bags)

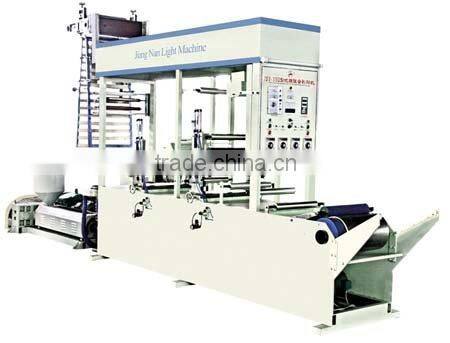

JSY-350 Film Extrusion Blowing and Printing Machine (vest Bags)
US$ 10,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
PORT OF SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Extruding PE PP Film Pictured Shopping Bags Extruding and Rotogravure Printing MachineUS$ 9,500 - 13,000MOQ: 1 Set -
Mini PE PP Film Pictured Shopping Bags Extruding and Rotogravure Printing MachineUS$ 9,500 - 13,000MOQ: 1 Set
-
Rotogravure PE PP Film Pictured Shopping Bags Rotogravure Printing MachineUS$ 9,500 - 13,000MOQ: 1 Set
-
Rotogravure Printing Mini Bags Plastic Film Blowing and Moulding MachineUS$ 9,500 - 13,000MOQ: 1 Set
-
Plastic Film Blowing and Printing by Rotogravure CylinderUS$ 9,500 - 13,000MOQ: 1 Set
Condition
New
Application
Film
Plastic Processed
PE
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
Place of Origin
Jiangsu, China
Brand Name
Honghua brand
Model Number
JSY-350
Voltage
380v
Power(W)
50kw
Dimension(L*W*H)
6000*1300*2500mm
Weight
2200kg
Certification
ISO 9001
Warranty
13 month
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.automatic extrusion blowing and printing at same time.2.printing in both side
3.one person can operate two or more machine
this machine can blowing and priting plastic film at sametime with prniting in both side. it suitable for PE and PP
Main technical parameter
| 1. Screw: pole | φ45, L/D: 28:1 |
| 2. Blowing and printing width | 100~350(mm), printing width: 420mm |
| 3. Film thickness | LDPE: 0.015~0.08mm, HDPE 0.01~0.03mm |
| 4. Production capacity | 10~35 kg/h |
| 5. Printing speed | 0~40m/min |
| 6. Gravure installation size | length 420 mm, diameter:75~180(mm). |
| 7. gear box | High strength hard tooth surface reduction gear box. |
| 8. corona | Intellectualized digital corona treatment |
| 9. total power | 25kw |
| 10 total weight | 1500 kg |
| 11. Overall size(L×W×H) | 6000×1300×2500mm. |
| 12. tempreture controler | digital tempreture controlling systerm |
Main feature and performance
1. Wide application, several purposes(It can blow HDPE and LDPE, blowing and printing at the same time, or single blowing and single printing);
2. Advanced structure, easy operation, correct overprint, easy maintenance;
3. Saving Raw material, reliable quality. It has following advantages which we compared with same line machines:
a. Bright color, strong fastness;
b. Blowing and printing at the same time, exact overprint;
c. Less power consumption, less labor, saving working time, less cost, etc.
YOUR SUCCESS OUR BUSINESS ,
BEST REGARDS!
JIANGYIN CITY HONGHUA MACHINERY AND EQUIPMENT CO.,LTD
