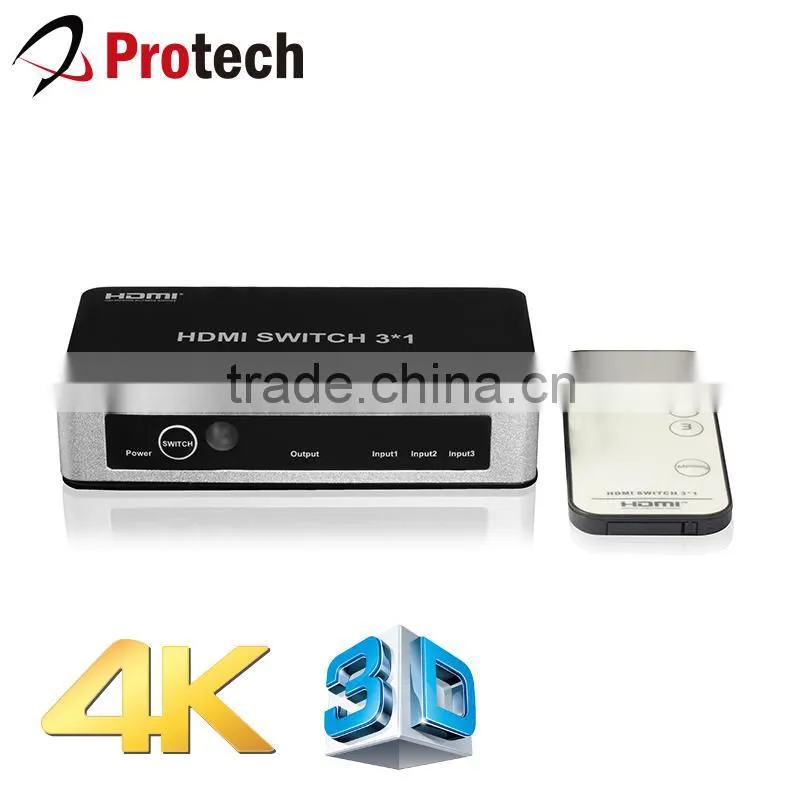

Help CenterPremium 4K HDMI Switcher 3 Ports 3 in 1 Out Wireless Remote IR
Related Products
-
HDMI 5X1 HDMI Switcher 4K@30Hz With IR Wireless RemoteUS$ 14.2 - 19MOQ: 100 Units -
Home Solar Systems 2.0 5 Port HDMI Switch 5x1 Hdmi Matrix Switch Support 4kx2k 1080p 3D for Home Theater Sound SystemUS$ 8 - 13MOQ: 50 Pieces
-
HDMI 3X1 HDMI Switcher 4k@30Hz With MHL, Extract Audio and ARCUS$ 22.5 - 29MOQ: 100 Units
-
4x1 Switcher 4 Out 1 in Hdmi Switch With Remote Control Support 1080P/3D PET0401SUS$ 5.7 - 7.8MOQ: 100 Units
-
HDMI1.4 3 Ports Switcher 3X1 4k@30Hz With Audio and ARCUS$ 19.9 - 29MOQ: 100 Units
New 3x1 HDMI Switcher with audio output
1.0 Introduction
I. Smart Function Introduction
* Sense the input source ports automatically, and bypass the port without signal loss.
* Switch to the last plugged input source port automatically when hot plug.
* Remember the active input source port while pressing “MEMORY” on the remote control, and select this input source port automatically when restart.
II. Remote Control Introduction
* Pressing the number to select the input source accordingly.
* Pressing to select the previous or next input source.
* Pressing “MEMORY” to get the switch remember the active input source, and select this input source port automatically whenrestart.
III. LED Indication
* Red LED indicates “Signal Not Selected”.
* Blue LED indicates “Active Signal Path”.
* No LED indicates “No Input Signal”.
2.0 Feature
* Support HDMI 1.4
* Support manual control and remote control.
* Enables the most recently activated video source to be displayed automatically.
* Support digital audio output simultaneously: Stereo, Toslink and Coaxial
* Support resolution up to 4Kx2K@30Hz
* Support 300MHz/3Gbps per channel (9Gbps all channels) bandwidth
* Support 12bit per channel (36bit all channels) deep color.
* Support HDCP
* Support uncompressed audio such as LPCM 7.1
* Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
* Support ARC (Audio Return Channel) Receiving
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Output Video |
HDMI1.4 signal |
Output S/PDIF Signal |
Toslink and Coaxial |
Video Amplifier Bandwidth |
3Gbps/300MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4Kx2K@30Hz |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Extend Power Supply |
5V DC@2A |
Power Consumption (Max) |
5W |
Switch Unit Cert |
FCC.CE,RoHS |
Power Supply Cert |
CE,FCC, RoHS |
User Manual |
English Version |
Note: Specification is subject to change without notice.
4.0 Package Content
1) Main Unit
2) 5V DC Power Adaptor
3) User Manual
4) Remote Control
