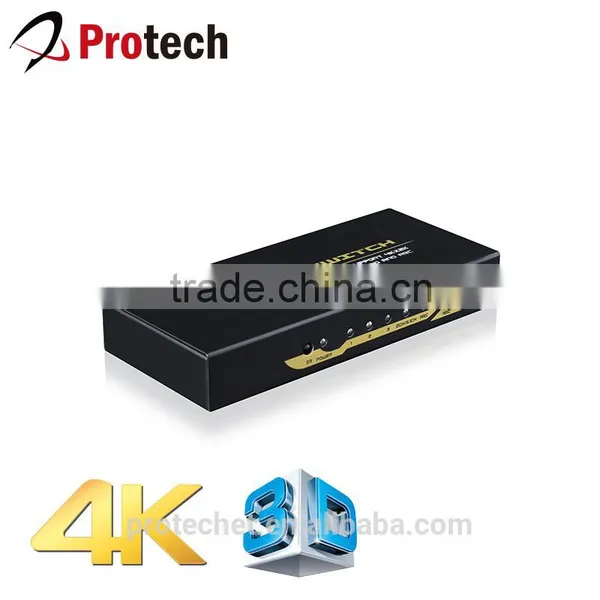

New 3x1 HDMI Switcher with audio output
1.0 Introduction
The 3 port HDMI 4K switch lets you share a display with three HDMI-enabled A/V devices.The switch features three independent inputs that each support 4K resolution and 7.1 surround sound audio. You’ll be amazed at how this video switch maintains Ultra HD picture quality. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the switch is backward compatible with high-definition 1080p, you can assure any video source will look great in your digital signage application.
Also,the audio embedded in HDMI can be extracted via Toslink or Coaxial and the switch can return the audios to AV receivers with audio return channel (ARC) function.
2.0 Feature
* Support HDMI 1.4
* Support manual control and remote control.
* Enables the most recently activated video source to be displayed automatically.
* Support digital audio output simultaneously: Stereo, Toslink and Coaxial
* Support resolution up to 4Kx2K@30Hz
* Support 300MHz/3Gbps per channel (9Gbps all channels) bandwidth
* Support 12bit per channel (36bit all channels) deep color.
* Support HDCP
* Support uncompressed audio such as LPCM 7.1
* Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
* Support ARC (Audio Return Channel) Receiving
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Output Video |
HDMI1.4 signal |
Output S/PDIF Signal |
Toslink and Coaxial |
Video Amplifier Bandwidth |
3Gbps/300MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4Kx2K@30Hz |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Extend Power Supply |
5V DC@2A |
Power Consumption (Max) |
5W |
Switch Unit Cert |
FCC.CE,RoHS |
Power Supply Cert |
CE,FCC, RoHS |
User Manual |
English Version |
Note: Specification is subject to change without notice.
4.0 Package Content
1) Main Unit
2) 5V DC Power Adaptor
3) User Manual
4) Remote Control
