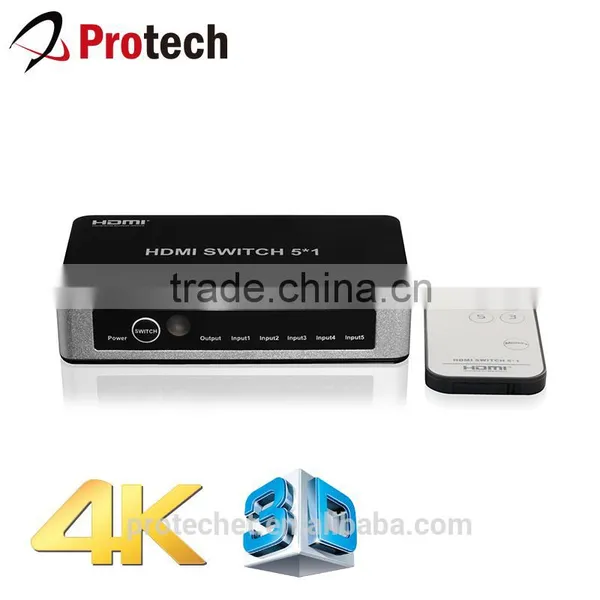

HDMI 5X1 HDMI Switcher 4K@30Hz With IR Wireless Remote
1.0 Introduction
I. Smart Function Introduction
* Sense the input source ports automatically, and bypass the port without signal loss.
* Switch to the last plugged input source port automatically when hot plug.
* Remember the active input source port while pressing “MEMORY” on the remote control, and select this input source port automatically when restart.
II. Remote Control Introduction
* Pressing the number to select the input source accordingly.
* Pressing to select the previous or next input source.
* Pressing “MEMORY” to get the switch remember the active input source, and select this input source port automatically whenrestart.
III. LED Indication
* Red LED indicates “Signal Not Selected”.
* Blue LED indicates “Active Signal Path”.
* No LED indicates “No Input Signal”.
2.0 Feature
* HDMI Stylish switches with remote control
* Support bit rates up to 3.0Gbpsper channel
* Support deep color up to 36-bit
* Support HDMI 3D video
* Support Dolby True HD and DTS-HD master audio
* Support Full-HD 4KX2K cascade above 3 layers
* Automatic switching (smart function), IR controlled switching or manual switching
* Support HDCP repeater
* Support CEC
* Compliant with HDMI 1.4b
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Input TMDS Signal |
0.5-1.0 volts p-p |
Maximum Single Link Range |
4KX2K/30Hz |
Product Size |
117mm x 64mm x 25mm |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
3.0Gbps/300MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4KX2K/30Hz |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +85℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Extend Power Supply |
5V DC |
Power Consumption (Max) |
5W |
User Manual |
English Version |
Note: Specifications are subject to change without notice.
4.0 Package Content
1) Main Unit
2) 5V DC Power Adaptor
3) User Manual
4) Remote Controller
