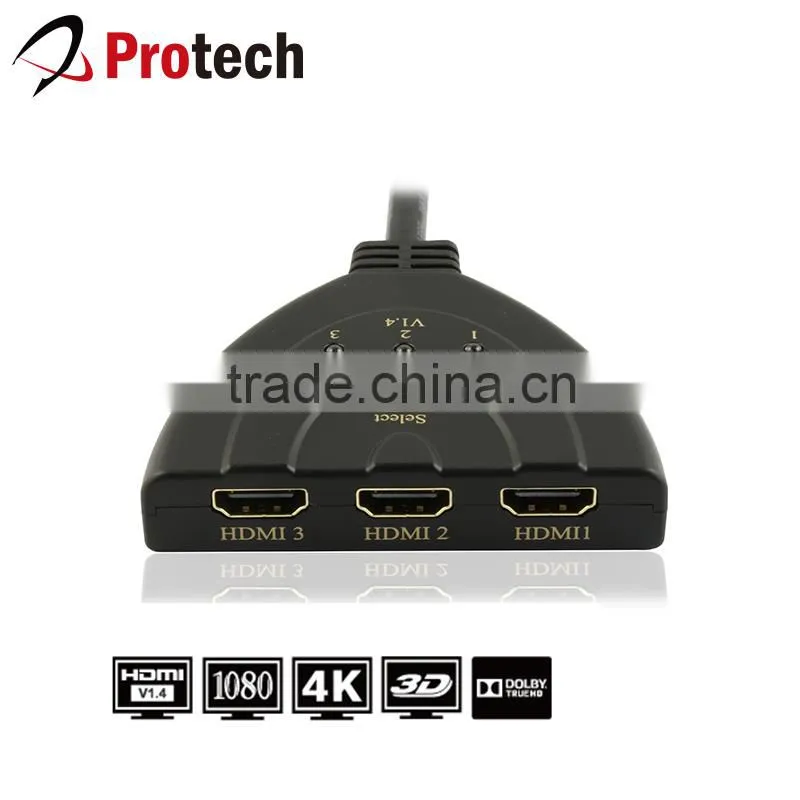

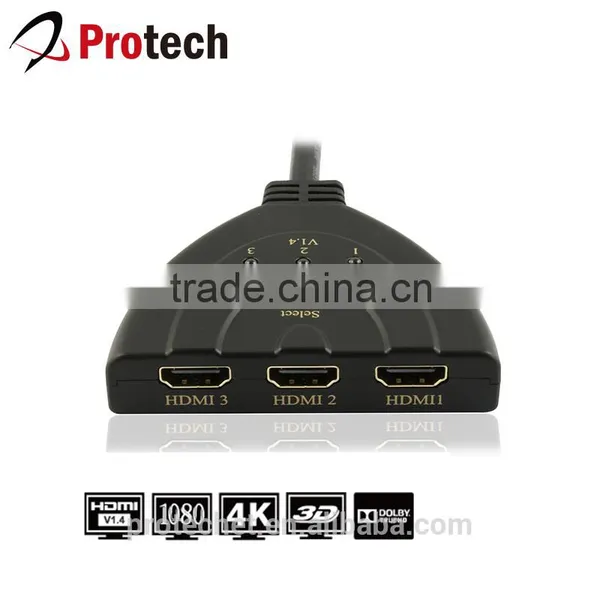

Bi-direction 3X1 HDMI Pigitail Switcher/1X3 Splitter 4K@30Hz with USB Cable
1.0 Introduction
This is a kind of high performance HDMI Switcher. It can easily switches three sources to one display. It not only has the key-press-switching function, but also has intelligent function. With one fixed HDMI cable (pigtail) this converter not only reduces cost but also save time for consumers.
Intelligent Funtion
- Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.
- Once the source device is turned off or plugged out, the switcher will select the next power-on source depending on the sequence automatically.
2.0 Feature

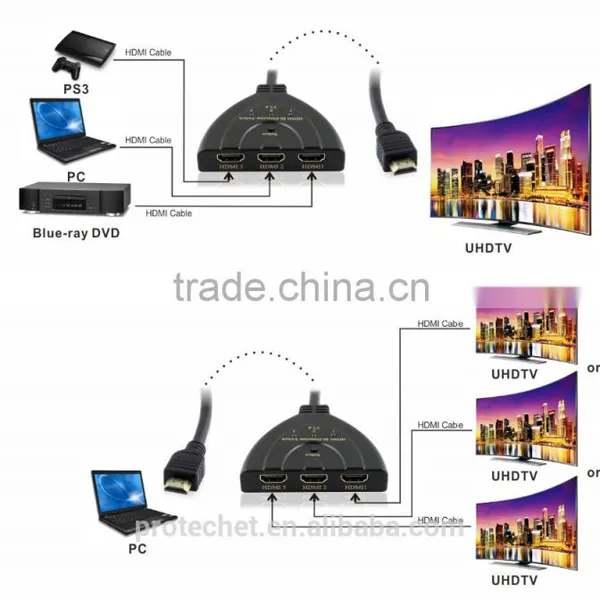

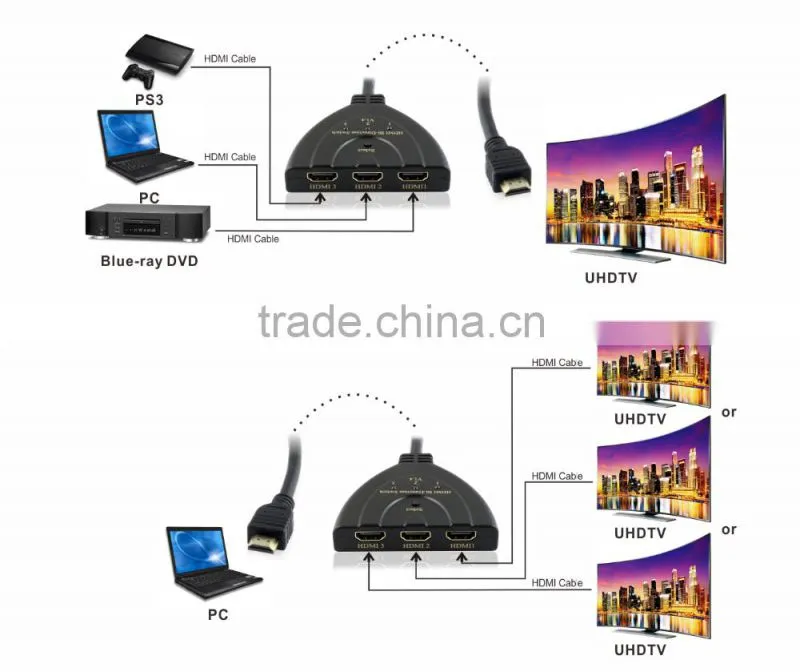

* 3 HDMI-Host (DVD player or PS3/PS4) to 1 HDMI Monitor or TV
* 1 HDMI-Host (DVD player or PS3/PS4) to 3 HDMI Monitors or TV
* Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3,V1.4
* CEC pass-through
* Support 1080p@60Hz, 4k x2k@24Hz/25Hz/30Hz.
* High performance up to 3.4Gbps
* Support 16 bit per channel (48 bit all channels)
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD)
* Support 3D
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
4K X 2K |
Output Video |
HDMI V1.0,V1.1,V1.2,V1.3,V1.4 |
Vertical Frequency Range |
24/25/30/50/60Hz |
Video Amplifier Bandwidth |
3.4Gbps/340MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p, 4K X 2K |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
USB Power Cable (optional) |
Power consumption (Max) |
5W |
User Manual |
English version |
Note: Specifications are subject to change without notice.
1) Specification is subject to change without notice.
2) A USB Power cable is needed when the input Voltage or Current is too low to support the switch.
4.0 Package Content
1) Main unit.
2) User's Manual
3) USB Power Cable
