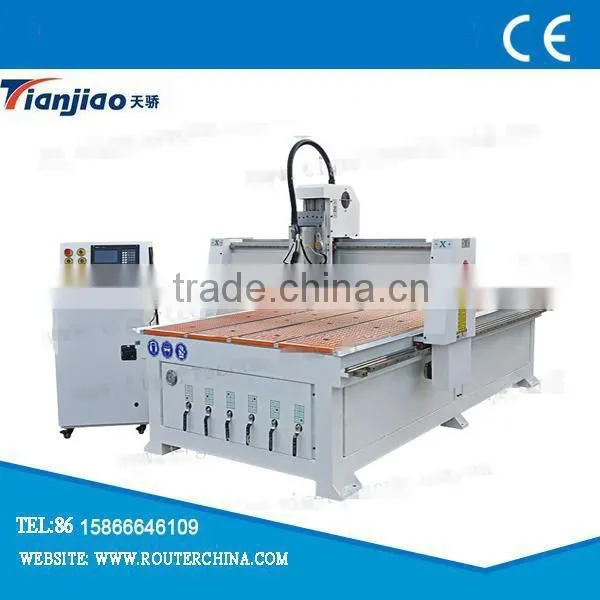

High speed cnc wood cutting router machine with tangential knife for cutting carton/PP/sandwich panel for sale
Specification:
Japan Yaskawa servo motor
tangential knife
vacuum table
130*2500mm size
video link:
http://youtu.be/3hbqhIaoMZQ
1. pictures:
2. application:
It enable the machine can work on different materials; corrugated paper, gray board, white cardboard, plastic sheets, composite materials, textiles, leathers, foam board, sponge etc at option of 40mm maximum cutting height.
3.spotlights:
A. Using Servo-motor from Yaskawa,to control up,down and turn of Vibration Cutting head and creasing head independently.With computerized conttrol,the depth of cutting and creasing can be adjusted precisely according to the need of box designer and makers.
B. The machines have The machines have three types of functional heads:vibration cutting head,creasing wheels,V-Cutter,high speed milling Router,with drawing pen
C. Table mat are imported from USA,the fiber board are durable,with good,permeability,very stable in thickness and shape.
D. Machine can ruu at the maximum speed of up to 1500mm per second.
E. Red Ultra-light positioning device for printed work can be cut accurately in easy and quickest way.
4. parameters:
Table of Technical Information on Carton Color Box Proofing Computerized Cutting Machines-V series | ||||
Technical information/model |
TJ1410 |
TJ1325 |
TJ2516 |
|
Operation properties |
Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations |
|||
Cutting speed |
Maxi 1500mm/s |
|||
|
Cutting Thickness
|
0.5-60mm |
|||
Cut materials |
Corrugated materials,sponge and foam board,lvory cardboard, gray paper, corrugated paper,plastic sheets,composite materials and leather materials maximum cutting thickness at 40mm |
|||
Number of pens |
8 different groups of strokes,half blades,full blades and pressure wheel setup |
|||
Positioning device |
Red Ultra-Light |
|||
Method for fixing paper |
Vacuum absorption |
|||
Cutting tolerance |
±0.2mm |
|||
|
Repeat accuracy
|
<=0.05mm |
|||
Minimum circle |
>=5mm diameter |
|||
Transmission interface |
Ethernet port |
|||
Format compatible |
Compatibility format AI software,Autocad,Coraldraw and all box software |
|||
Direcive system |
HP-GL and GP-GL |
|||
Digital control panel |
Directly connected to computer operation, there is no operation panel. |
|||
Transmission materials |
Straight-line guide rails and imported synchronous belts |
|||
Supply voltage |
AC 220V 380V ±10%,50HZ |
|||
Vibration blade |
Vibration cutter head motor at 25000rpm |
|||
|
Cutting area
|
1400mm*1000mm |
1300mm*2500mm |
2500mm*1600mm |
|
Overall dimension |
2160*1680*1600mm |
2000*3080*1600mm |
3300*2250*1600mm |
|

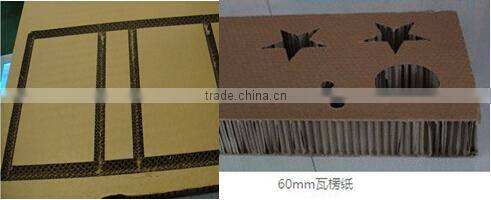

5.Samples:
Before sale
1.Patient introduce and professional suggest buying selection
2.Real time report production situation
3.Take pictures and make videoes with your done machine
4. Strict test and debugg machine quality before shipping
After sale
24 hours on line service and phone on
2 years gurantee term
During gurantee term, repair or change damaged parts for free
Exceed gurantee term, offer at cost price
Manager: Isabella
skype: xihong61
Trademanager: cn209782924
qq: 2417071086
Phone: 86 15866646109

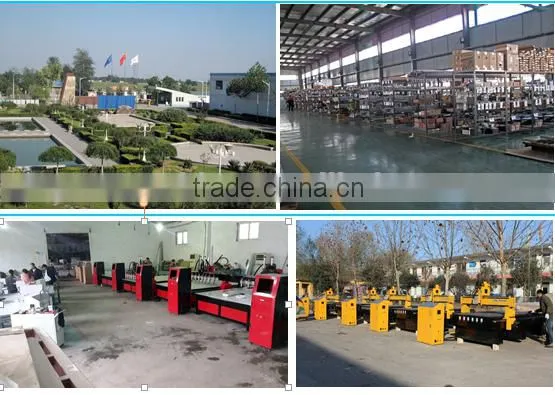

Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
