wood carving tools/wood cnc routers TJ-1325A
Applications:
1. Woodworking Applications: Ordinary wood board, Composite panels, insulation boards, color plates, wood flooring, aluminum panels, solid wood panels, plywood, laminates, waving board, various types of artificial plate-shaped, MDF board and other panel furniture or decoration materials' engraving and cutting.
2. Advertising Applications: Logo, Sign, department nameplate, chest badge, architectural model,ABS plate, acrylic engraving and cutting.
3. With the water tank and the bit cooling system, the machine can do jade ,glass and marble engraving well.
4. With the rotary axis, the machine also can do 3D engraving. Such as arts and crafts making, wooden pen holder engraving, bamboo and gift boxes engraving, handrails and railings engraving, table legs and bed legs engraving and so on.
Features:
1. Whole machine steel structure, after high-temperature tempering, good rigidity and stability.
2. 3KW water-cooling variable brushless spindle and application of high performance subdivision drive ensure good working speed and precision.
3. Vertical bracket, removable gantry, imported rack gear and ball screw transmission, Taiwan round orbit, can engrave 2mm-3mm little letter.
4. Adopt advanced CNC system (NCstudio or DSP control system), has break point memory mode to make sure continuous working after electronic drop or other postpone situation.
5. Professional high flexibility anti-bending cable, the number of anti-bending can be up to 70,000 times.
6. Automatic oil lubrication system is easy to operate by one key press, make the maintenance operation easily.
Technical parameters:
Model |
TJ-1325A |
Machine body |
Whole steel structure |
Work dimensions |
1300*2500*100mm(51.2*98.4*3.9 inch) |
Max. feeding height |
200mm or bigger |
Working table |
Aluminum T-slot PVC table |
Guide way |
Taiwan Cylinder linear guideway |
Driving mode |
Imported ball screw |
Mechanical precision |
0.01mm |
Repositioning accuracy |
0.03mm |
Max. Speed |
18m/min |
Working speed |
0-10m/min |
Driving motor |
Stepper motor 450B |
Drive |
Leadshine 860 |
Max. Power consumption |
3.5KW |
Software |
Original Type 3 software or Ucancam software |
Voltage |
AC380V/50Hz or 240V/50Hz |
Spindle |
3KW variable speed, water-cooling spindle |
Spindle speed |
0 - 24,000rpm/min |
Blade diameter |
3.175mm/4mm/6mm/8mm/12mm |
Control system |
NC-Studio control system (or DSP controller system with USB interface) |
Command |
G code, u00, mmg, plt |
Package Dimension |
3250mm*2050mm*1900mm |
Gross weight |
1500kg |
Auxiliary devices |
Oil lubrication system, Dust collector |
Certification |
CE, FDA,ISO |
Options:
1. Taiwan HIWIN square linear orbit--more load-bearing performance and service life
2. Bigger Water cooling spindle or Italy HSD air cooling spindles, bigger power, large force.
3. Rotary axis-for cylindrical materials engraving or 3D engraving.
4. Stianless steel water tank--for hard materials engraving, such as glass, marble and so on.
5. DSP handle control system with USB interface, can work without connecting with computer, easy to control.
6. Vacuum table (contain vacuum pump and vacuum pipes)--For fixing the materials on the working table, especially for bigger working table. After added vacuum table, the voltage will need to be 3 phase/380V.

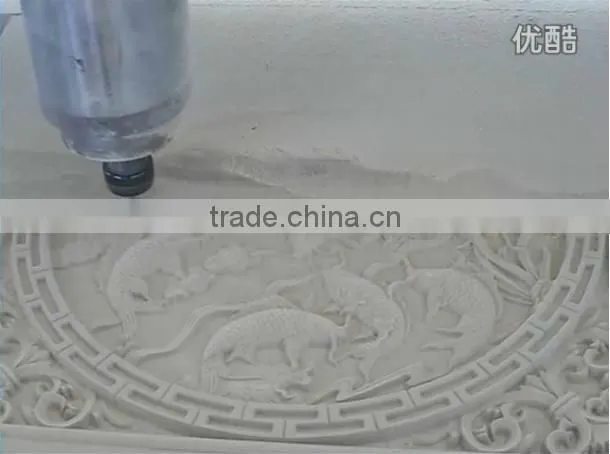

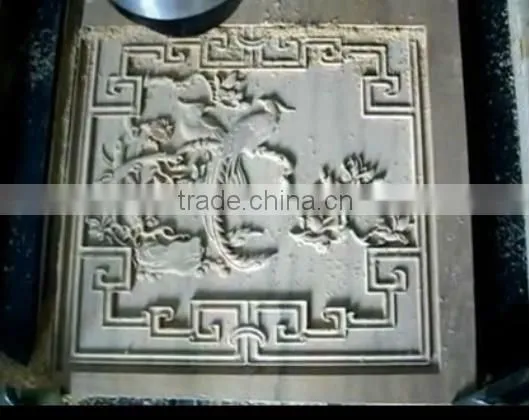

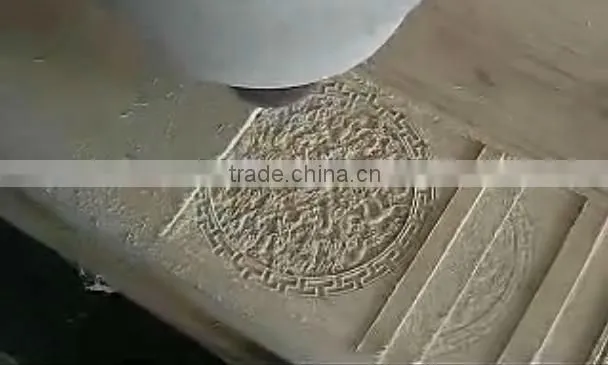

Samples:
Warranty and after-sales service
1.All machines are debugged before shipment.
2.One year machine warranty.
3.Lifetime technical support and maintenance service.
4.24 hours on line or phone or by email technical support.
5.We offer detailed machine manual,software manual,controller manual and training CD.
6.Free training course at our plant.
7.Welcome to visit our factory to learn machine face to face.
Company information
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and woodworking machines, advertising machines, ATC machines, stone working machines and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Advantages:
1.Our company was set up for many years and we have lots of experience.
2.All the parts of our machines are famous brand in China or in international,so it make sure our machine have high quality and long lifetime.
3.Our worker have experience,they can produce machines professional and skilled,so make the machine with high quality and can work well.
4.Perfect after-sales service.
