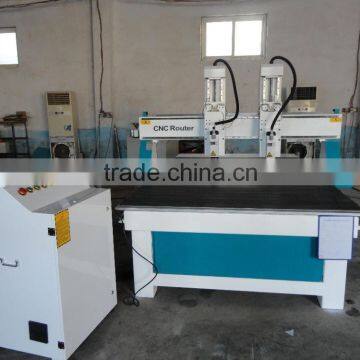

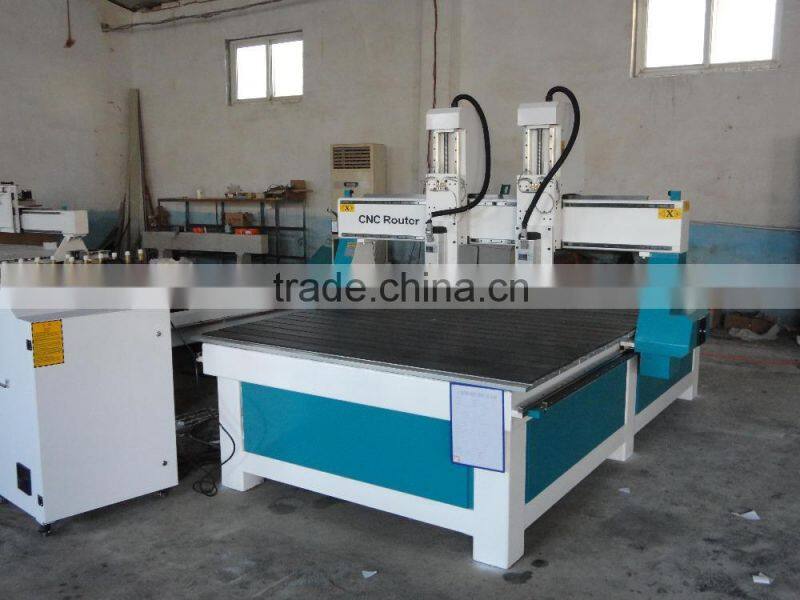

Double head woodworking machine with TJ-1325
1.Application industry
Classical mahogany furniture furniture industry, furniture decorate industry, woodworking decoration , wooden crafts, carving can be all kinds of shadow engraving, embossment, widely used in craft gifts industry
2.Products Description
1. Machine body is industrial production model, heavy all steel welded structure, tempering aging treatment, strong Non-deformation.Durable in use.

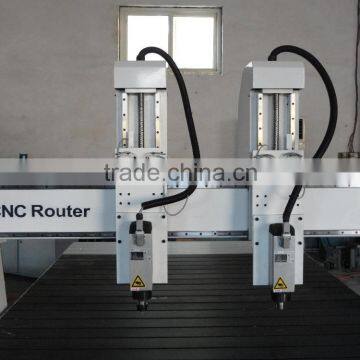

2, Gantry mobile, guide bearing surface stability.Rack drive smoothly, ensure long time high-speed operation not deformation, not shake.
3, Adopts high speed drive and stepper motor drives, Y axis adopt double motor drive, speed can reach more than 18 meters.
4.With a vacuum cleaner, the working environment clean and tidy
5, Main configuration chooses import, joint venture brand components, stable and reliable performance
6, Have breakpoints,power failure continued carving function.
3.Technical Parameter
| Model | TJ-1325 | |
| 1 | working area | 1300*2500*200mm |
| 2 | gantry | steel gantry |
| 3 | spindle | 3kw water cooling spindle(the spindle power is depand on the material and the thickness you want to process) |
| 4 | spindle speed | 24000r/min |
| 5 | rail | Taiwan TBI square rail |
| 6 | screw | Taiwan ball screw |
| 7 | transmission way | x/y gearwhell,z axis ballscrew |
| 8 | table structure | vacuum table or aluminum prifile table option |
| 9 | max moving speed | 32m/min |
| 10 | max working speed | 18m/min |
| 11 | control system | DSP control system or NC-studio option |
| 12 | drive motor | stepper motor or servo motor option |
| 13 | driving system | Yako 2811 driving system or Detal/panasonic driving system option |
| 14 | software | type3, ucancam v9 ,Artcam |
| 15 | working voltage | 380V 50Hz, 220V 50Hz |
| 16 | precision | +-0.05mm |
| 17 | net weight | 1500kgs |
| 18 | gross weight | 1650kgs |
| 19 | packing size | 185*200*160cm |
4.Engraving/Cutting sample
5.Our customer
6.Our factory
7.FAQ
1.Payment terms: 50% T/T downpayment, 50% T/T upon copy of bill of lading in one week.
2.MOQ:one set for end users,5sets for agent.
3.How to get the exactly quotation? Please tell me more questions as below
a,working area
b,what kind of work do you want to do?cutting or engraving?
c.the material and the thickness you want to process.
d.what kind of sample do you want to engraving or cutting?
8.After-sales service
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4.Spare parts replacement and repair service provided.
