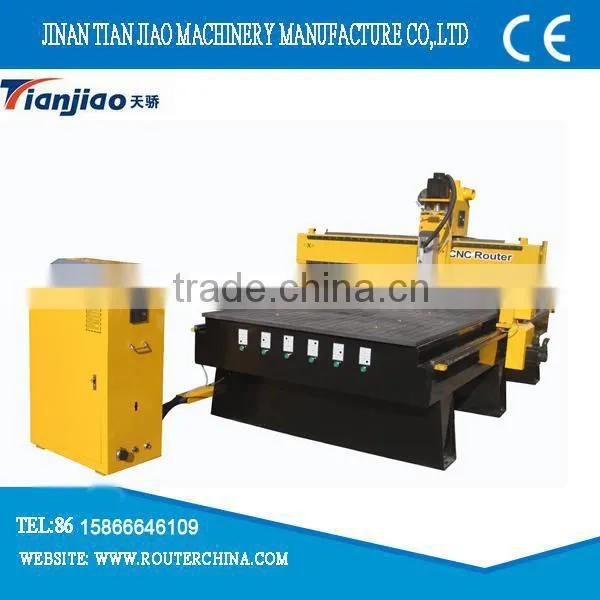

Italy HSD spindle 6kw 1325 cnc wood carving/cutting machine on MDF
Specific:
1. 1300*2500*200mm size
2. Delta servo motor and driver
3. DSP control system
4. Taiwan Hiwin/PMI orbit
5. Italy HSD 6kw spindle
6.Vacuum table
s:
2.Application:
woodworking industry
Furniture making industry
Advertising industry
Crafts industry
3. Spotlight of the machine
A. thick steel tube welding
B. Original Italy HSD 6kw spindle
C. Taiwan Delta servo motor and driver
D. DSP control system
E. vacuum table
F. all use air plug
4. parameters:
Model |
CNC Router Machinery TJ1325 |
Name |
CNC Router Machinery |
Standard Configuration | |||
Item |
Specification |
Remarks |
|
Table size (mm) |
|
||
Traveling size X-Y-Z (mm) |
1300X2500X200 |
||
Max. working piece height(mm) |
200 |
||
Weight (Kg) |
1800 |
||
Systemic resolution (mm) |
±0.0025 |
||
Repositioning resolution (mm) |
±0.02 |
||
Max. running speed (m/min) |
35 |
||
Max. cutting speed(m/min) |
25 |
||
Working voltage (V/PH/HZ) |
380/3/50 |
||
Cabinet |
Big cabinet with single door+CE |
||
Spindle (KW) |
6KW |
air cooling |
|
Spindle Speed (r/min) |
18000 |
||
Table design |
Vacuum table with T-slot |
||
Vacuum Pump |
5.5KW/160m3/tongyou pump |
Including non-return valve and filter |
|
Positioning Cylinder |
Can be added |
||
Driving system |
Delta servo motor |
Taiwan |
|
Software |
Artcam(English) China CAM(England)-for drilling |
||
Optional | |||
Item |
Specification |
Remarks |
|
Spindle(KW) |
4.5 |
China air cooling |
|
Table Design |
Pure adsorption 2 zones(2 stations working ) |
Double layer30mm |
|
Vacuum Pump |
4KW/140m3/h Becker |
Including non-return valve and filter |
|
Driving System |
Servo |
Yaskawa |
|
Operation System |
Syntec 10A+PC |
||
Pneumatic drill |
5V/7V/9V/7V2H/9V3H1S/9V2H2S etc |
FAM |
|
Tool magazine |
Disc plastic steel 12 tools |
||
Protection Device |
Protection fence/safe carpet/laser light curtain |
||

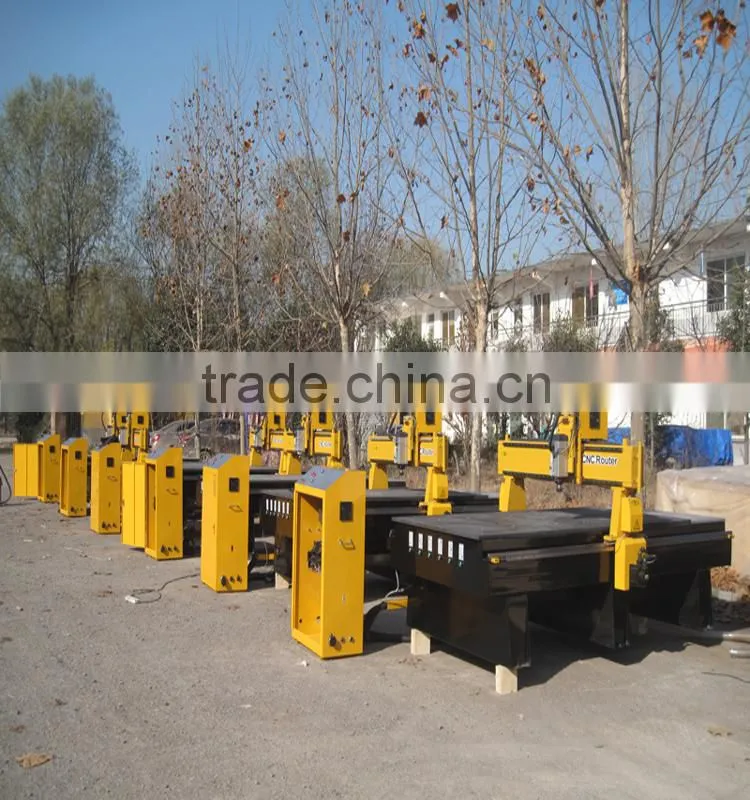

5. samples:

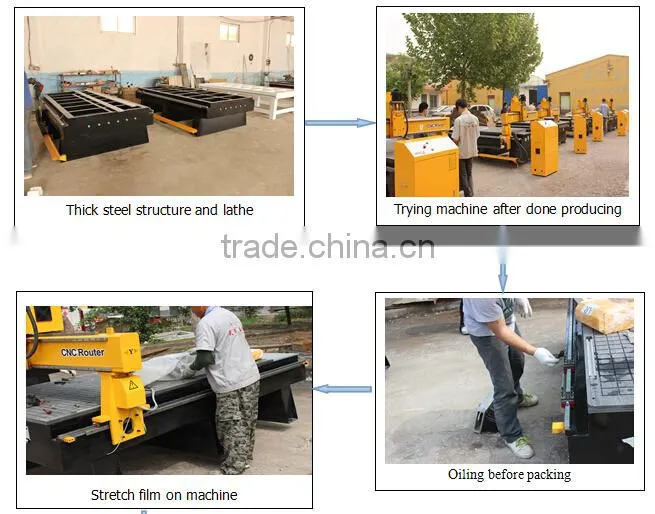

6. packing
Before sale
1.Patient introduce and professional suggest buying selection
2.Real time report production situation
3.Take pictures and make videoes with your done machine
4. Strict test and debugg machine quality before shipping
After sale
24 hours on line service and phone on
2 years gurantee term
During gurantee term, repair or change damaged parts for free
Exceed gurantee term, offer at cost price
