3 axis spindle cnc 1325

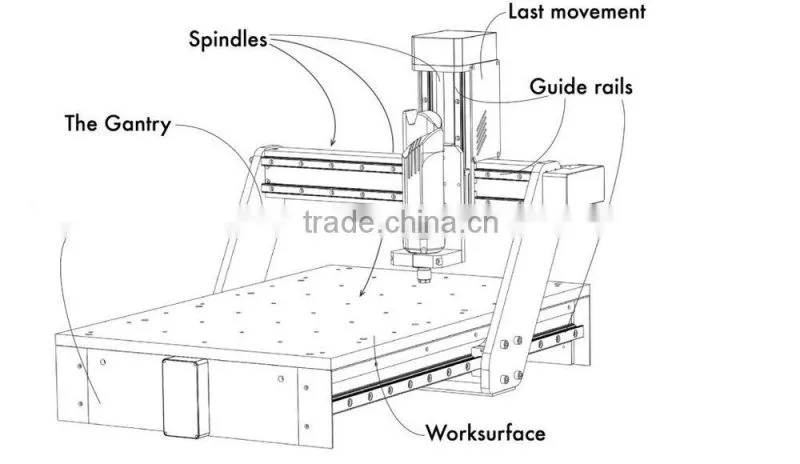

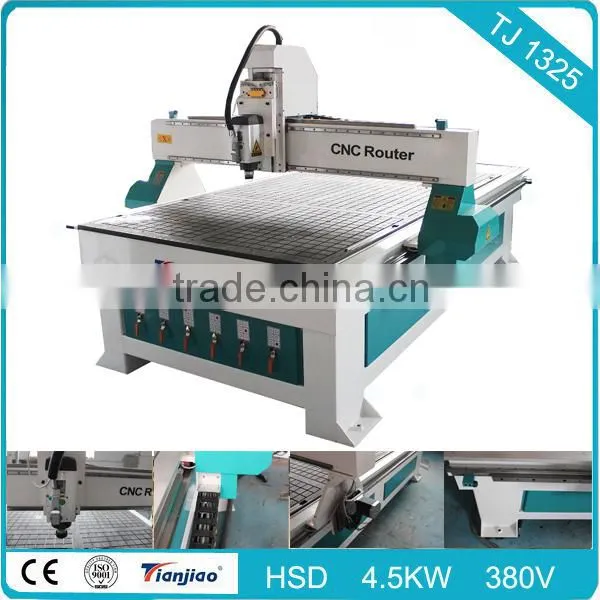

This type wood cnc router TJ1325 is a CNC router tool that creates objects from wood. CNC stands for computer numerical control. The CNC works on the cartesian coordinate system (X, Y, Z) for 2D 3D motion control. Parts of a project can be designed in the computer with a CAD/CAM program or other G code software, and then cut automatically using a router or other cutters to produce a finished part.
Wood cnc router is ideal for hobbies, engineering prototyping, product development, art, and production work.

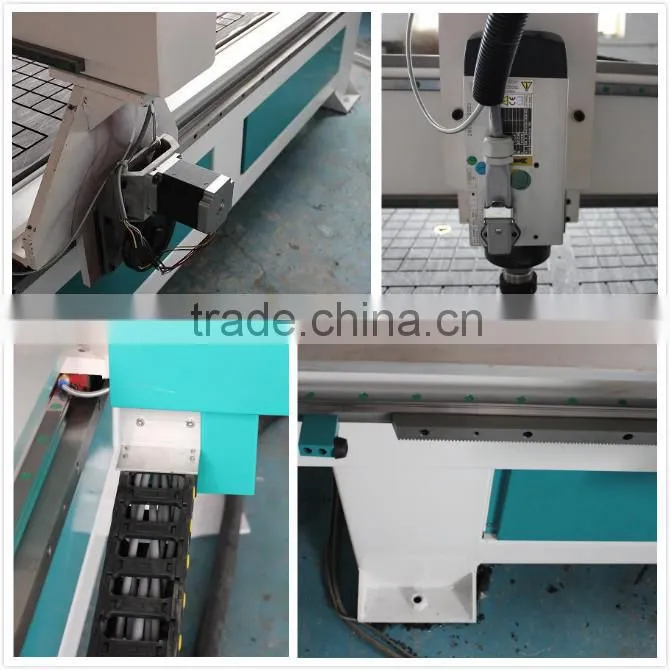

- Whole steel structure adopt 6mm steel tube .
- Imported Italy HSD air cooling spindle , 18000 rpm
- Original Taiwan HIWIN square orbit 20#
- vacuum table , easy to load and unload MDF , HDF workpiece.
- each electric wire use WEIPU to connect
Machine model |
TJ 1530 |
XY working area |
1500*3000 mm |
Z working area |
200 mm |
Table size |
1700*3500 mm |
Max. speed |
60 m/min |
Max. working speed |
30 m/min |
Working delicacy |
0.05 mm |
Table |
vacuum table with vacuum pump |
Command |
G code*u00* mmg*plt |
Surrounding for software |
Windows98/2000/xp |
power |
AC380 3 phases |
Spindle |
4.5KW Italy HSD |
Speed of spindle |
0-18000 rpm/min |
Work mode |
stepper motor , Y axis adopt double motors to drive . |
Structure |
Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle |
Engraving software |
Option |
Control software |
DSP / Ncstudio |
A wood CNC router can be used in the production of many different items, such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture, and so on. In addition, wood CNC router helps in the thermoforming of plastics by automating the trimming process. CNC routers can help ensure part repeatability and sufficient factory output
Application sample :
more information pls refer to :
