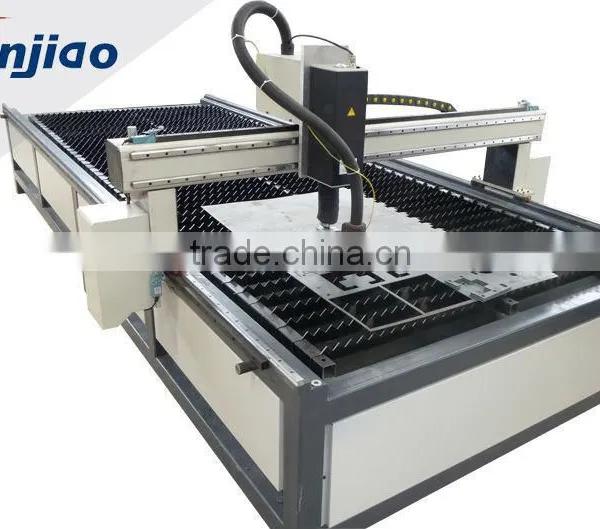

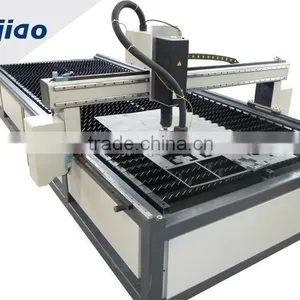

CNC Pipe Profile Plasma Cutting Machine-- Plasma Cut Gas Cut TJ-1655

Name: CNC Pipe Profile Plasma Cutting Machine-- Plasma Cut Gas Cut TJ-1655
Brand: Tian Jiao
SKU: 124357977
Availability: InStock

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

US$ 2,000 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Tian Jiao

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Tian Jiao

Model Number TJ-1655

Input Voltage 220v/380v 50Hz

Rated Current 60A

Power(W) 6kw

Dimensions 1600*5500mm

Usage metal

Certification CE

After-sales Service Provided Overseas third-party support available

CNC pipe profile plasma cutting machine-- plasma cut gas cut TJ-1655

1. Main Features

1.Structure: Taiwan Hiwin square orbits, X Y gear-wheel, Z ballscrew

2.Drive motor: stepper motor

3.Arc high control, capacitance adjustable high

4.Power supply: Huayuan 63 Amps

5.Software: Nest software: Fastcam software(Australia)

6.Control system: Shanghai Communication University control system

2. Configurations

Item	Quantity	Unit	Note
Plasma cutting machine TJ1655	1	Set
cutting size			1600*5500mm
Driving way	2	sets	X axis drive, Y axis double drive, Z axis lifting system
Real cutting width	1	mm	1600mm
Real cutting length	1	mm	5500mm
Driving system	3	sets	stepper motor
Cnc system	1	set	Shanghai Communication University control system
Adjustable block	1	set	Arc high and capacitance adjustable high
Longitudinal guide rail	2	sets	Taiwan Hiwin guide rail
Connect cable	1	set	Shielded cable
Cutting torch			Plasma
Working voltage			220v/380v 50Hz
Moving speed			0-3500mm/min
Plasma cutting thickness			0.5-6mm

3. Parameters

Automatic lift precision	±0.5mm
Linear positioning accuracy	±0.1mm/10m
Linear repeat precision	±0.4mm/10m
Cut torch trip	≤170mm
Cutting speed	0-8000mm/min
File transfer	USB interface
Processing materials	Carbon steel plate, stainless steel, aluminium sheet
