Specifications
1.thick square tube welding structure column2.square orbits, gear-wheel transmission
3.DSP control system
Advertising Plasma Stainless Steel Cutting Machine TJ1325
1.thick square tube welding structure column
2.square orbits, gear-wheel transmission
3.DSP control system
www.routerchina,com
1.Application:
It is mainly designed for cutting small metal sheet such as Iron sheets, Aluminum sheets, Galvanized sheets,
Tianium Plates.And the valid cutting range is 1300*2500mm.The working area is 1300*2500mm.
2.Configuration:
1.Thicken square tube welding structure column
2.Square orbit gea-rwheel
3.Import Hypertherm and Thermadyne power supply.
3.Features:
1.Gantry structure,double motor driver of Y axis.Light beam design,linear guide rail,high accuracy,stable transmission.
2.Untouched plasma head,small cutting edge,no cutting residue. Water cooling system avoids the distortion of
metal board. High cutting speed,high accuracy,low cost.
3.Advanced numeral control system,stable performance. Software compatability: Ucancam,Type3,Artcam,etc.
Success ratio of arc striking can be over 99%.
Powersupply: Imported Hypertherm or Thermadyne series or
Control system: DSP Control system
Structure: 3 axises square orbits, Gear-wheel
Software: UCANCAM software
4.Parameters:
Working area |
1300*2500mm |
Applications |
Iron sheets, Aluminum sheets, Galvanized sheets, Tianium Plates. |
Working thickness |
0.5-15mm |
Cutting speed |
0-8000mm/min |
Power |
8.5KW |
Input voltage |
3phase 380V |
Frequency |
50Hz |
Current |
60A or 100A |
File transfer |
USB interface |
Working mode |
None touching Arc |

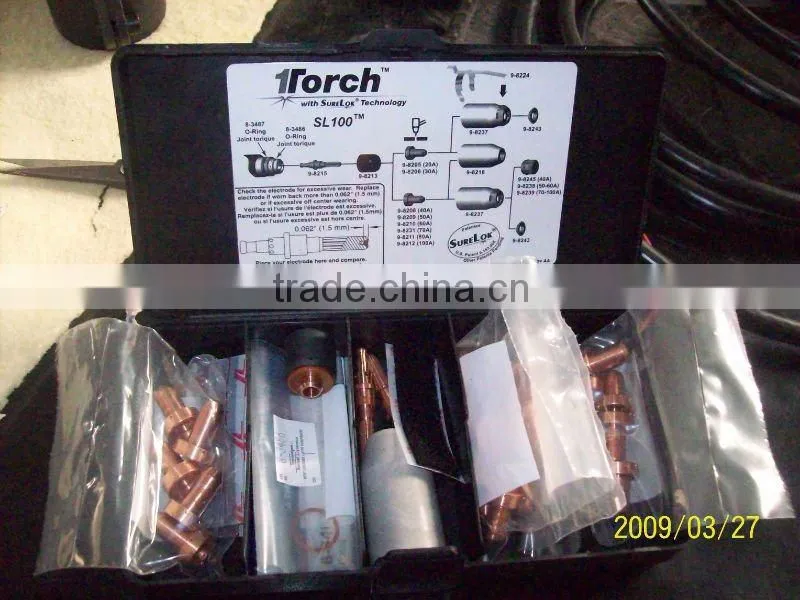

5.Parts:

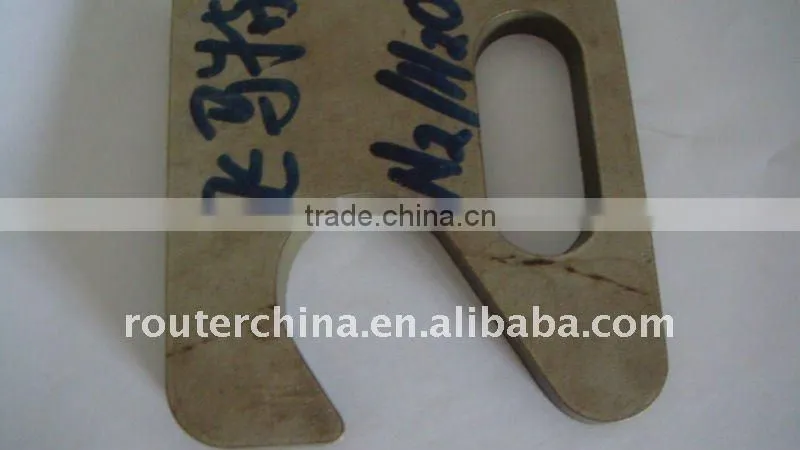

6.Samples:
