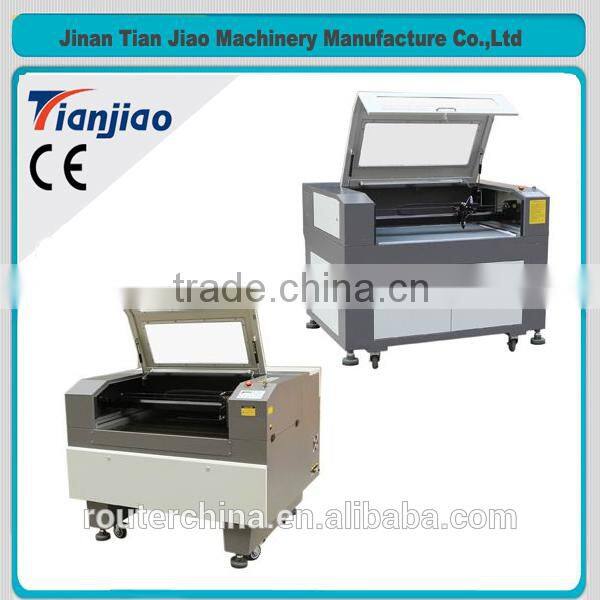

laser engraving machine eastern

Specifications

laser engraving machine eastern
1.CE certificate
ing area is 900*600mm
3.DSP control system

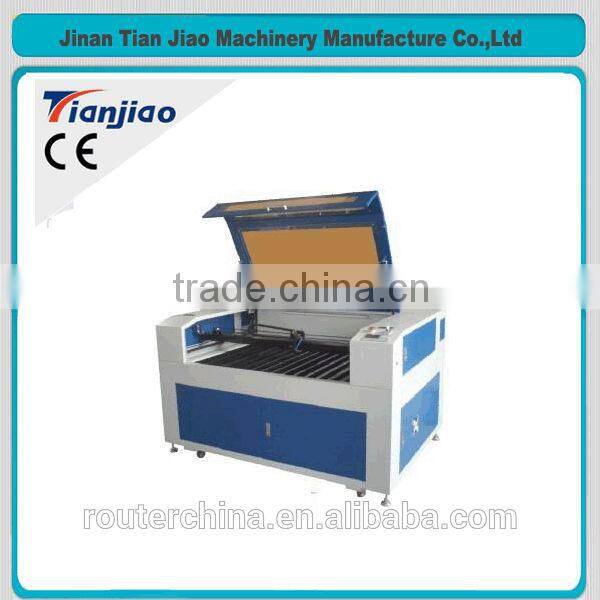

laser glass engraving machine 6090

Applications:

•     Arts and crafts, bamboo and wood products, advertisement and upholstery, cloth, leather, plate making, construction moulds

Material:

• cloth, leather, rubber, bamboo strip, crystal, organic glass, ceramic tile,      marble, thin wood, hardboard, bowlder, plastic and other non metal material.



Machine feature



• DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
• Owns functions of restoring from power off, continuation on break point.
• USB(off-lie) control system
• Compatible with CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc
• 0.01mm locating precision
• Engraving depth can be easily adjusted with high precision
• Noise free and dust free



Why choose TJ Serial laser product?



• TJ product is widely used in almost all the materials which you can think of
• TJ Company is specialized in laser machine manufacturing and selling. There is no middle man and no agent, so the price of JQ products is best
• TJ laser machine with high precision and high reputation is the most reliable goods you can choose
• TJ Company has all kinds of laser machines in store, the delivery time is much shorter than other companies
• TJ Company has international tech service office and provides 24 hours online service and tech support for customers



Optional accessory



• worktable:honeycomb for soft materials; up-down for thick materias
• red dot: make the laser path visible
• rotary attachment: for cylinder item like bottles process
• Air compressor: for materials inflammable





Product introduction

Item	Data	Note
Laser tube power	60W made in China
Working area	900*600mm
Motor Drive	stepper
Speed control	0-100%  stepless control,	can setup different powers according to different colors
Max. speed	1000MM/S
Software	WENTAI, CORELDRAW, PHOTOSHOP
Laser tube cooling	water cooling
Min character	Chinese: 2mm  Letter:1mm
Repositioning accuracy	±0.01mm
Power supply	AC200V±10%50HZ
Total power	:<1000W
Working temperature	0-45 degree
Working humidity	5%-95%(without condensed water)
Figure form	BMP, PLT, DXF, DST





 some parts:

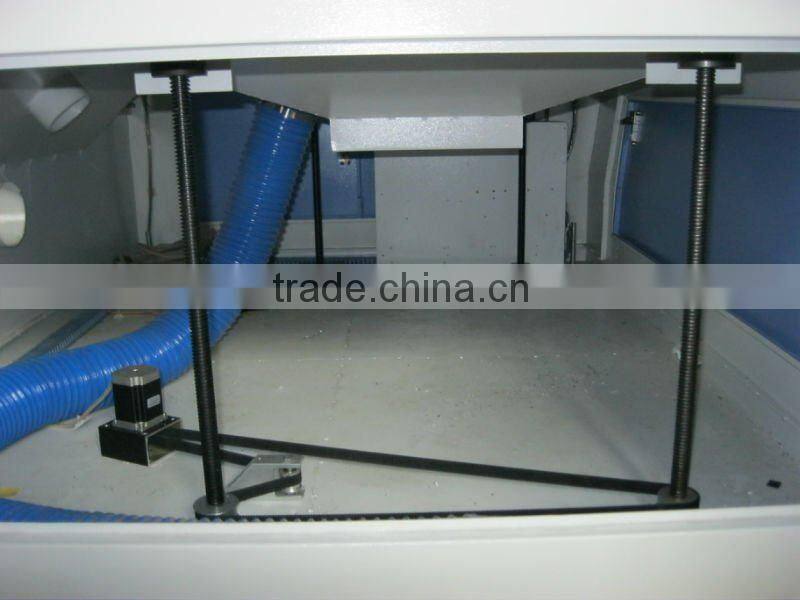

auto lifting table

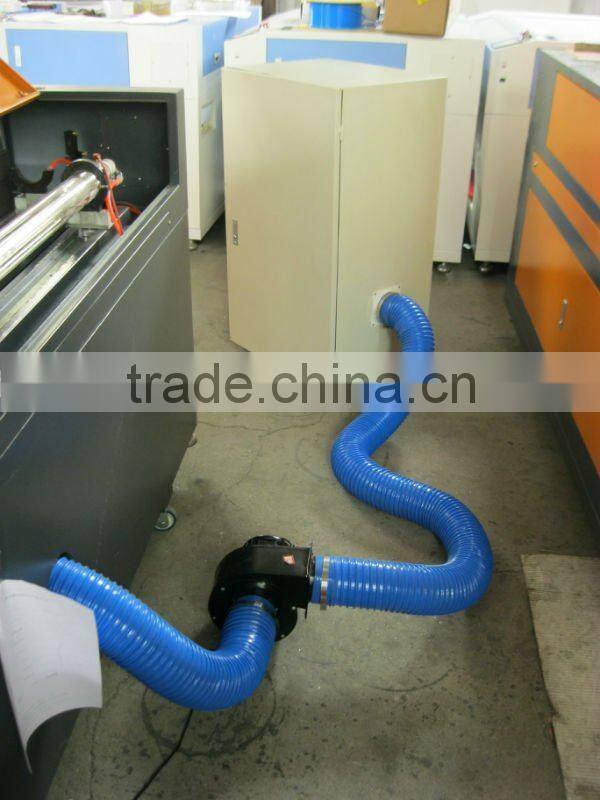

Filter

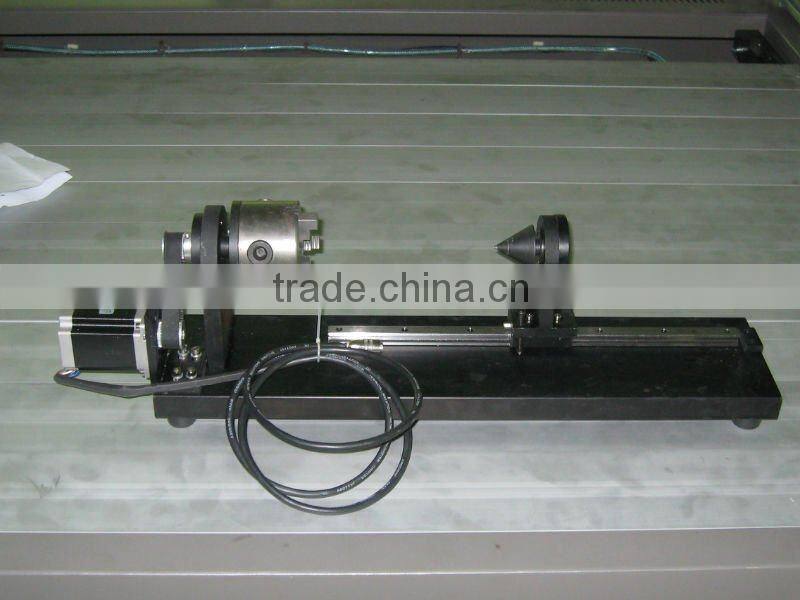

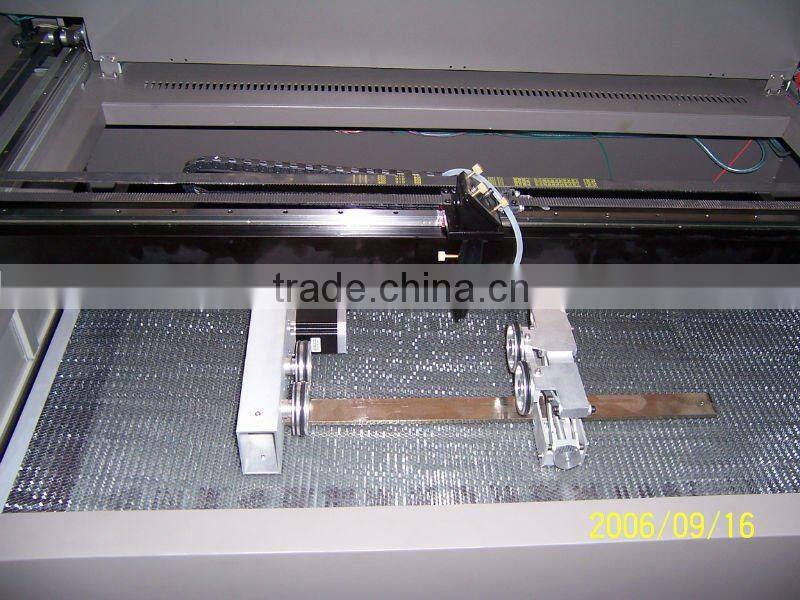

Rotary





sample:

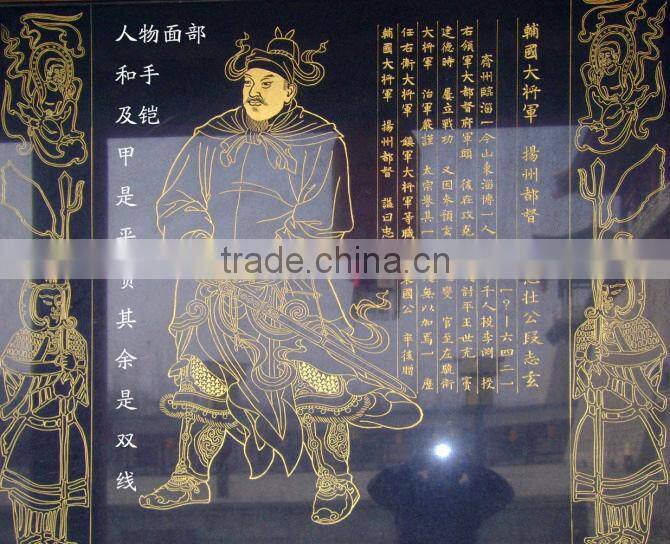

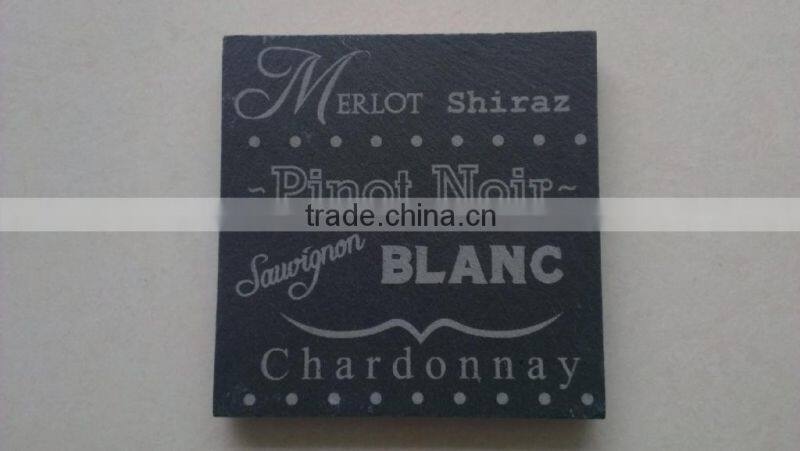

Stone engraving

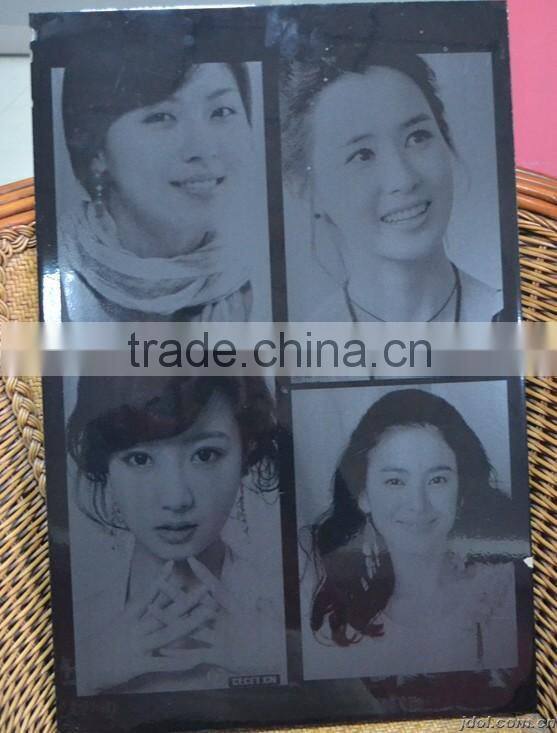

Phone engraving

Other model 6090:
