Portable Laser Engraving and Cutting Machine/Laser Cutter
Application:
stainless steel, carbon steel and other metal materials precise cutting, suitable for aerospace technology, roket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing indudtry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.

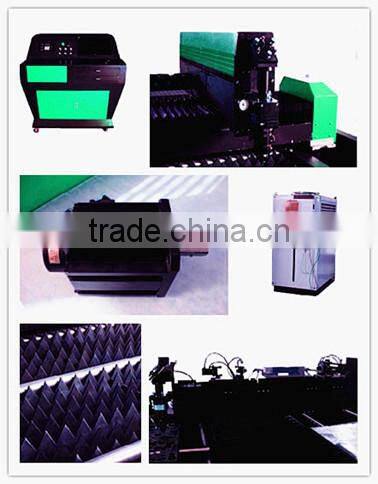

Main parts:
Features:
1. Reasonable Gantry Structure, stable laser path.
1)This Laser Cutting machine adopts Gantry Structure, cast Cross Beam, the whole
structure is very firm, and it changes the old Cantilever formation, has smaller body,
lighter weight, durable structure and high precision.
2)Laser device of this laser cutting machine includes two assemblies: mechanical
following cutting head and laser device path. Laser Path of mechanical following head and
laser device is a whole independence laser path system. This laser path system uses Germany
technology design and has stable path, high efficiency. Laser Path of Gantry is more stable
than that of cantilever.
2. Mechanical Following laser cutting head imported from USA, has high sensitivity and good stability.
This laser cutting machine uses USA imported mechanical following cutting head. Cutting
head laser nozzle locking ring touch the metal sheet materials surface, cutting head move up
and down, and it can achieve same focal cutting. The cutting head has high sensitivity,
stable running and good reliability. When cutting metal sheet, there is no obvious sparks
flying phenomenon, and avoids the lower sensitivity and failure caused by air dielectric
changing and electromagnetic field interference which affect working piece cutting quality
and cutting head collision damage. (Traditional ranging cutting head can not avoid this).
This mechanical following system adopts USA advanced equipment which can ensure stability
and sensitivity.
3. Power supply controlled by control cabinet, easy to operate.
Control cabinet a unique design, including the entire operating system, change the past,
independent power operation of complex design, and can control the system on the current,
frequency, pulse width and other parameters.
4. Precise and rational design, optical adjustment for easy lamp and rod replacement.
The laser cutting machine make use of cantilever structure therefore just move
beam body to nailbed edge during adjustment of laser path, the operator can replace the
side lights and rods behind the beam body
5. Japanese Panasonic servo motor to improve the cutting speed and stability.
XY axes with two 1500W Panasonic servo motor, the moving parts of Z-axis equipped with a 200W Panasonic servo motor, the three combination ensure the stability and efficiency.
6. The combine of high precision ballscrews drive system and advanced feed system.
The movement system adopt the drive system of high precision ballscrews and servo motor, and this assure the high precision of the cutting. Serrate platform and trim strip are very
suitable for cutting metal sheets. The user can put in and take out the materials faster and
easily. There is a feeding shaft on the serrate platform, this special worktable can meet special
requirements, enlarge the application of this machine, and operate more easily.
7. High power and big refrigerating capacity water chiller.
This water chiller adopt high power 5P water chiller, and it can cool the laser system
continuately, adjust the temperature automatically, ensure working for a long time. The
temperature of the water can be kept within plus-minus 5 degree. The constant temperature of water can keep the the laser power stable, work more steady and fast.
Advantages:
1. High precision in cutting, excellent in stability.
Adopting the high precision ball screw intransmission system. The optimized CNC control
system, which can meet the processing demand in high precision accessory.Themotatio
systemis excellent, that suit for the long hours constantly working
2. High quality in cutting edge.
Adopting the U.S.A imported follow-up cutting head system with high sensitivity and
stability. The cutting head moving with the vary of the plate. The cut-off point
position willremain unchanged. The kerf is flat and smooth enough no need to handle it
again. Meanwhile, the machine can be use to cut both of the flat materials and curving
materials.
3. Cutting large format and suitable for cutting more material.
The machine can cut metal sheet within the thickness of 8mm and not larger than the size of
1500mm*3000mm. We could make the size as your requirment. The applicable materials include: ordinary carbon steel, stainless steel, Alloy steel, Aluminum, copper, titanium plate etc.
4. With drawer to collect the garbage,easy to change the gas valve.
5. High performance-price ratio.
For thin sheet it could instead of CO2 laser cutting machine, CNC punch press and
shears etc. But the cost of the whole machine is equivalent of CO2 laser machine 1/4, CNC
punch press 1/2. We assure that with the normal cost you could get the cutting precision
near fiber laser, exceed the axial flow laser cutting quality. TJ-500W with low cost while
high efficiency will be your best choice.
6. Low cost for using.
It adopts YAG solid laser equipment, the main consumables is electricity, cooling water,
auxiliary gas and laser lamp. The average cost is 4 dollars every hours.
7. Higher cutting speed and efficiency.
The largest speed for cutting carbon steel with this machine is 2m/min., ccording to
average speed 1m/min, 1.2 U.S. dollars per meter and except for auxiliary processing time,
it could create the value of 58.56 U.S. dollars per hour averagely, net profit up to around
51.24 U.S. dollars. With the resonable cost, get the higher profit, we assure the
performance will be the same with USA or Germany equipment.
8. Low fees for the future maintain.
This laser machine with simple structure, is easy to operate with high stability.
Standard Technical parameters:
| 1 | Model | YAG-500W-1530 |
| 2 | Laser wavelength | 1064nm |
| 3 | Laser pulse frequency | 0.1 - 500Hz |
| 4 | Width of pulse | 0.2 - 20ms |
| 5 | Working current | 100 - 400 A |
| 6 | Laser rated power | 500W |
| 7 | Laser power source | 18kw |
| 8 | Chiller | 5KW |
| 9 | Working size | 1500*3000*50mm |
| 10 | Processing precision | 0.05mm/m |
| 11 | Repositioning precision | 0.05mm/m |
| 12 | Min line width | 0.2mm |
| 13 | Located apparatus | Red light direction |
| 14 | Way of air protection | Coaxial |
| 15 | Suitable file format | dxf, ai, plt |
| 16 | Driving way | Japanese servo motors |
| 17 | Continuous working time | 24h |
| 18 |
Max cutting thickness
(Carbon steel) |
8mm |
| 19 | General power | 12-20KW |
| 20 | Electrical source voltage | 380V±10%/50Hz/100A |
| 21 | Spare parts | Xe lamp, water, auxiliary gas(N2, O2) |
| 22 | Grade of laser | Class IV |
| 23 | Packaging size |
Machine:450*248*155cm
Control box:140*140*150cm
Chiller:130*120*150cm |
samples
Warranty and after sales service
- One year machine warranty ,during the warranty period , if any parts broken, we change a new part for you freely.
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Company information
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
