Specifications
eastern fabric laser cutting machine 12251.auto feeding system
2.laser power is optional
3.for fabric,cloth,textile

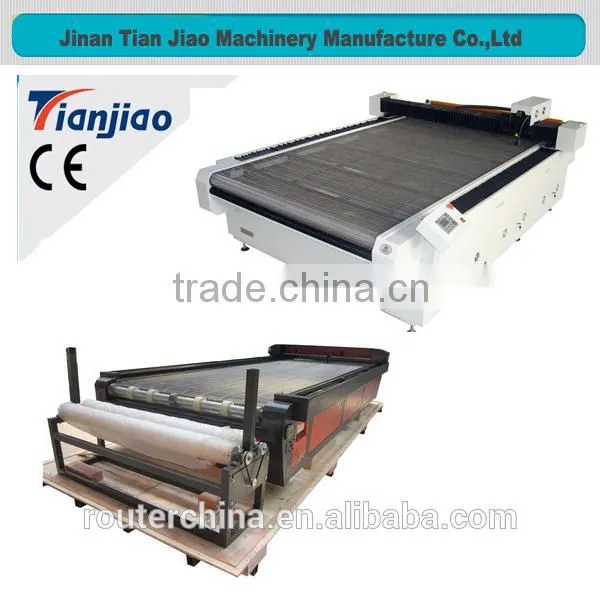

eastern fabric laser cutting machine 1225
>> Brife introduce>>
This model can used for large materials, like colth, leather, wood board, acrylic, paper and other fields to engrave and cut.
special for the rolls material
>> Application>>
This model mainly used for cutting cloth,silk,textile,paper, plastic,leather, rubber, other rolls materials. It can used in the fields of advertising, arts and crafts making, leather processing, textile industry ,package making and so on.
with auto feeding system, can save working time, advance working efficiency high, avoid material waste.
>> Parameters >>
Description |
Parameter |
Working area |
1200mm×2500mm |
Whole machine size |
3000×1600×990cm |
Laser tube power |
60W |
Max. scan precision |
2500dpi |
Min. character |
English 1mm×1mm |
Position precision |
<±0.01mm |
Support figure form |
BMP PLT DST DXF , and AI |
Drive motore |
Stepper |
Working temperature |
545 |
Working humidity |
595without condensed water |
Cooling mode |
Water cooling |
Control system |
DSP control system |
Software |
Coreldraw AutoCAD Photoshop |
>> Machine features >>
1. CO2 Glass sealed laser tube
China famous brand (Reci, EFR, Weiju), good beam mode stability, service time over 1500~8000 working hours.
2. Laser Power
40W~180W, good quality and stable output to extend the laser tube service time.
3. Singapore imported lens and mirrors
High transmittance, good focusing, reflecting effect.
4. DSP control system, Leetro Controller
Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission
6. Aluminium blade table
7. Taiwan Linear guide rails
8. Lasercut 5.3 software, user’s manual
9. Tool box
>> Equipment coming together with machine >>
Industrial chiller air pump exaust fan tool box
laser tube(one piece if not spare another) software Pipe
1. Industrial Cooling System
Constant water temperature ensures laser tube a longer service time and high stability
2. Exhaust Fan
Exhaust fan removes dust and smoke to protect the optical parts and the users.
3. Electromagnetic air pump
The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.
>> Options >>
Knife table honeycomb table auto lifting table rotary
1. Red dot
The laser is invisible. Red dot shows the position of the laser on the material. It’s more convenient for location.
2. Honeycomb or blade table optional
Aluminum blade table is for processing acrylic, wood and other hard materials;
Honeycomb table is for processing cloth, leather and other soft materials.
3. Up/down Z-axis
You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.
4. Auto focusing
Auto focusing automatically adjust the focusing distance.
5. Rotary
Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.
>> Warranty >>
1. One year for the machine, except for consumables.
2. Laser tube warranty:
40W: 3 months
60W: 3 months
80W: 6 months;
100W, 150W, 180W: 8 months;
3. Lens and mirrors are not within warranty scope.
>> Applicable Materials >>
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.
Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.
>> Machine details>>
Special table for cloth
Easy Auto feeding system
>> Sample>>
