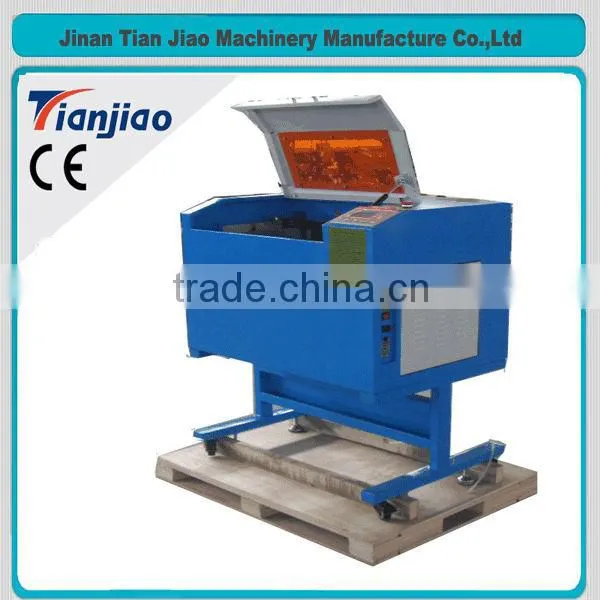

mini size laser cutting and engraving machine

Specifications

mini size laser cutting and engraving machine
1.engrave on flat material
2.engrave on cylinder
3.engrave on stamp
4.in stock



mini size laser cutting and engraving machine



USB interface

power is 40W

sign area is 100*65mm

engraving area is 300*380mm



mini size laser cutting and engraving machine

Applications

Arts and crafts, bamboo and wood products, advertisement and upholstery, cloth, leather, plate making, construction moulds

Material
cloth, leather, rubber, bamboo strip, crystal, organic glass, ceramic tile, marble, thin wood, hardboard, bowlder, plastic and other non metal material.



mini size laser cutting and engraving machine

Product introduction

Motor Drive stepper

Speed control 0-100%  stepless control, can setup different powers according to different colors
Max. speed1000MM/S
Software WENTAI, CORELDRAW, PHOTOSHOP
Laser tube cooling water cooling
Work delicacy0.025mm
Min character  Chinese 2mm  Letter:1mm
Repositioning accuracy ±0.01mm
Power supply  AC200V±10%50HZ
Total power <1000W
Working temperature 0-45
Working humidity 5%-95%(without condensed water)
Figure form  BMP, PLT, DXF, DST

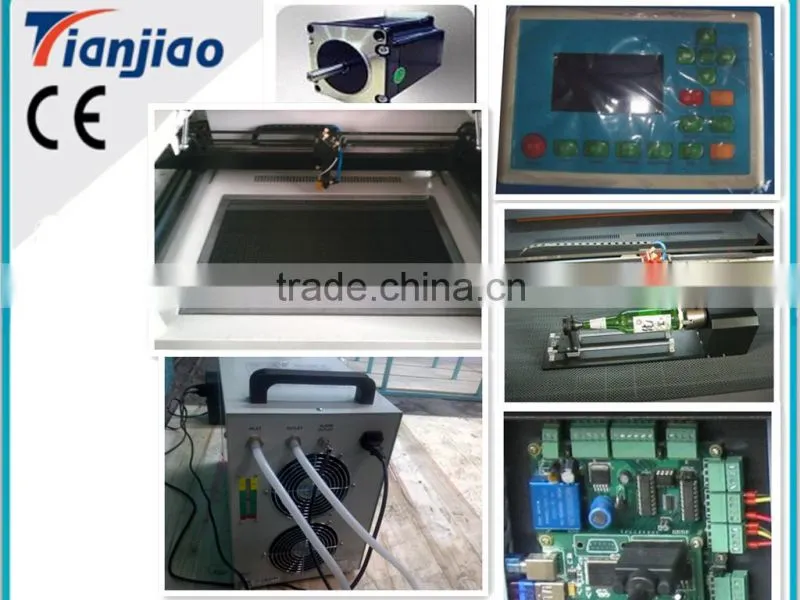

1. multi function type electronic lifting table, can engrave and cut one whole piece of seal material, more suitable for more kinds of nonmetallic seal engraving. With widely use.

2.DSP separate control system, with the advanced continue engraving after power off, prevent wasting material. Higher engraving speed, precision, can work off line. Easy operation and save computer resources.

3.Forcible water break protector, can avoid loss from no water in laser tube.

4.Support plt, bmp, dxf and more exporting type, can design any kinds of drawings and character

5.Exhaust smoke, dust removing, blowing protecting

6.Adopt famous laser system,laser power can be adjusted at any time, long lifespan.

mini size laser cutting and engraving machine

Options

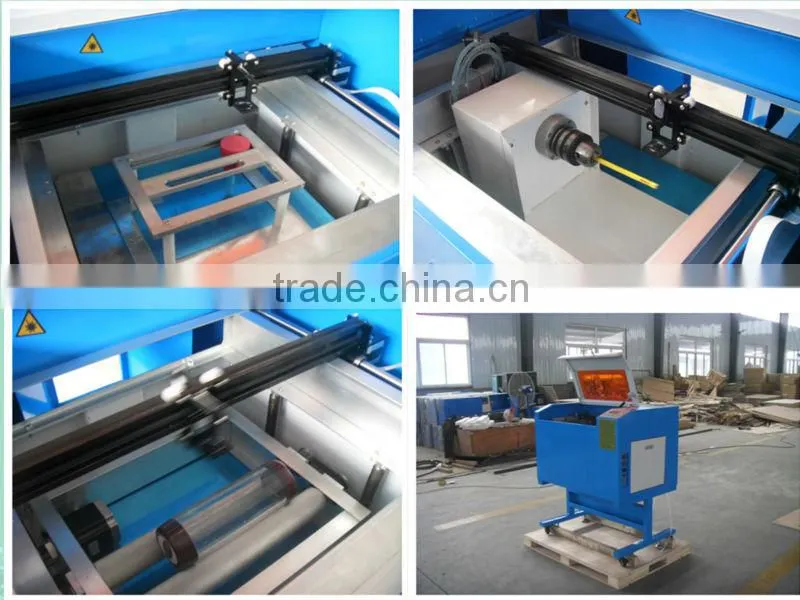

Motorized up and down platform

Rotary attachment











mini size laser cutting and engraving machine

purchasing guids:

1).flat engraving size

2).seal size you want to engrave

3).need to engrave on cylinder, which kind? there are 2 kinds rotary

4).need sparts parts except the parts follow with machine for free(3 reflect mirror,1 lens,1 laser tube,1 software)?







mini size laser cutting and engraving machine

After sale service

1).whole machine for 1 year,except for consumable parts(mirrors,laser tube and power,belts)

2)during guratee term, can change new parts for you

  exceed term,send you parts in cost price.

3)can provide on-site installation and debugging or study in our factory

4)24 hours on line for you
