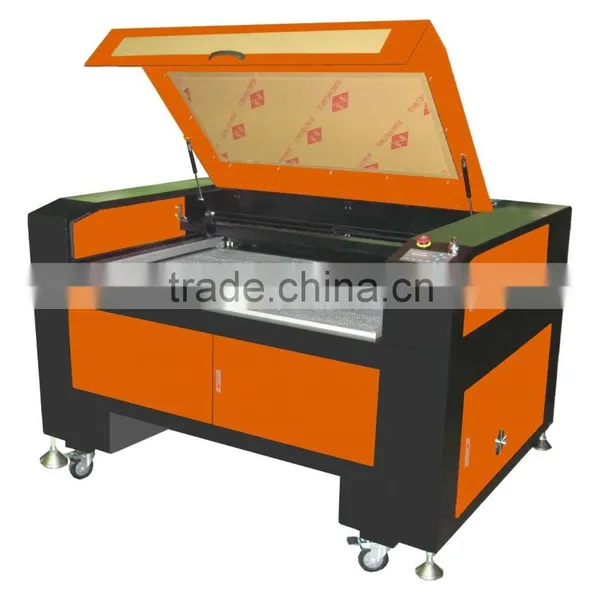

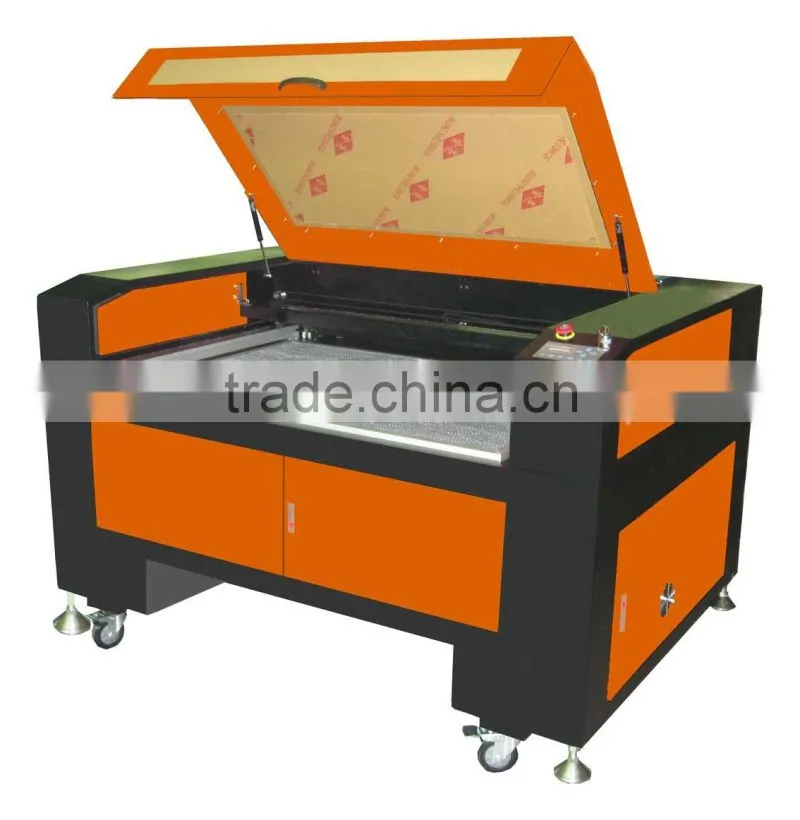

Laser engraving and cutting machine
Applications of Wood Laser Cutting Engraving Machine:
Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
Features of Wood Laser Cutting Engraving Machine:
1. The optimizing and decent new design, good performance, low noise.
2. High quality tapes for transmission , equipingspeed-down structure, ensuring high quality and high stability engraving cutting.
3. Imported Singapore lens and Taiwan HIWIN square orbit, high precision, long lifetime.
4. Beijing RECI laser power can be optional.
Techinicl parameters:
Model |
TJ-9060 |
Working area |
900mm*600mm |
Equipment Dimension |
1450mm*1100mm*1070mm |
Laser power |
60W/80W |
Laser type |
CO2 sealed laser tube,water-cooled |
Orbit |
Square linear orbit( Taiwan HIWIN) |
Lens |
Molybdenum materials (imported from Singapore) |
Driving system |
3 phases stepper motor |
Engraving speed |
0-60000mm/min (0-2362 inch/min) |
Cutting speed |
0-36000mm/min |
Resetting positioning accuracy |
0.1mm |
Minimum shaping character |
English 1x1mm |
Power supply |
220V/50HZ , 110V/60HZ |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Control system |
DSP control system |
Auxiliary equipments |
Exhaust-fans, air-exhaust pipe |
Operating temperature |
0 - 45 ° C |
Operating humidity |
5 - 95% |
Net Weight |
230kg |
Optional equipment:
1. Risedown platform: adjust the height of table, enable the max thickness of material to reach 450mm.
2. Rotary device: to engrave cylindrical material, such as pens, bottles.
3. Chiller unit: coolen circular water(if you choose the machine 80w , we suggest you choose this one).
4. Auto focus: engrave uneven surface.
5. Red pot point of position: realize simulation engraving, fast find the position.
6. Honey comb table: for engrave thin material

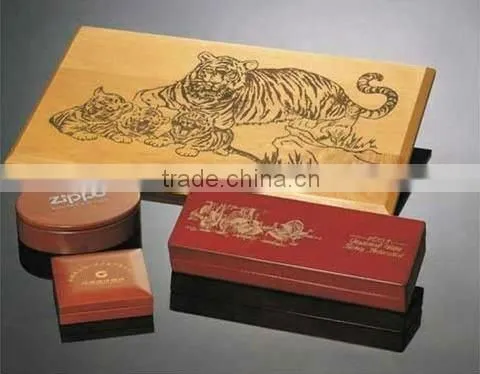

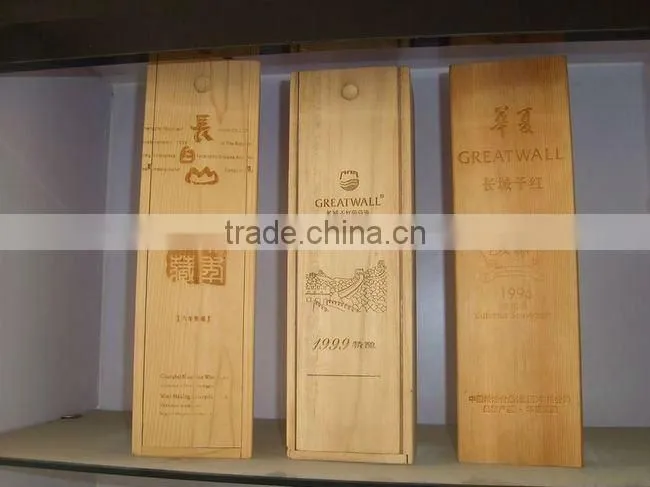

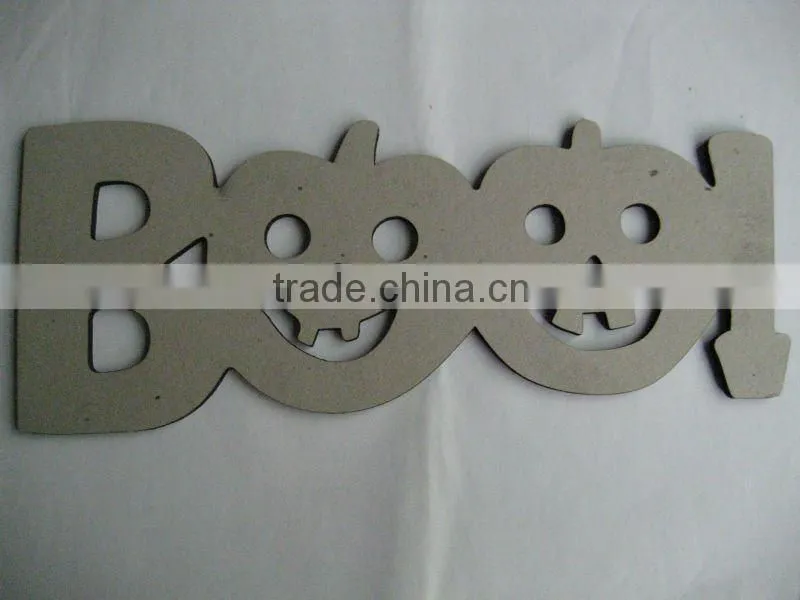

Samples:
Warranty and after sales service
- One year machine warranty ,during the warranty period , if any parts broken, we change a new part for you freely.
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Company information
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Why choose TIANJIAO product?
1. Jinan Tian Jiao Machinery Manufacture Co., Ltd. company is specialized in manufacturing and selling CNC Router and laser machine for many years . We have lots of experience.
2.Our worker have experience,they can produce machines professional and skilled,so make the machine with high quality and can work well.
3.All the parts of our machines are famous brand in China or in international,so it make sure our machine have high quality and long lifetime.
4.Perfect after-sales service.
