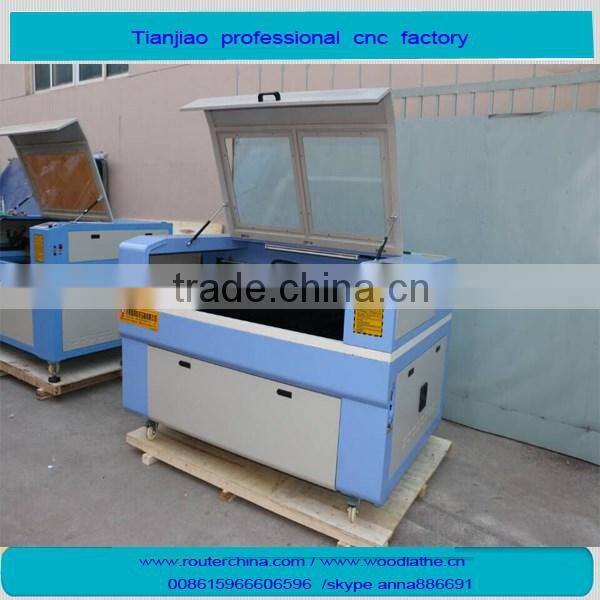

Laser Engraving Machine 1390(51*35'' ) With Rotary up and Down Table

Laser Engraving Machine 1390(51*35'' ) With Rotary up and Down Table thumbnail-1
Laser Engraving Machine 1390(51*35'' ) With Rotary up and Down Table thumbnail-2
Laser Engraving Machine 1390(51*35'' ) With Rotary up and Down Table thumbnail-3
Laser Engraving Machine 1390(51*35'' ) With Rotary up and Down Table photo-1

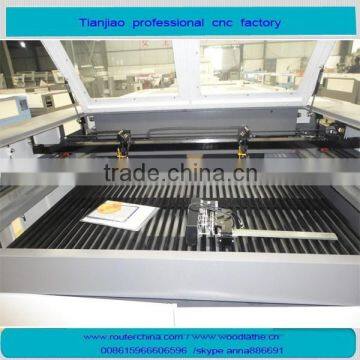

Laser Engraving Machine 1390(51*35'' ) With Rotary up and Down Table photo-2
Laser Engraving Machine 1390(51*35'' ) With Rotary up and Down Table photo-3
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
1300*900mm
Contact Supplier Request Quote Chat Now
Jinan Tian Jiao Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type CO2
Engraving Area 1300*900mm
Engraving Speed 24000rpm
CNC or Not Yes
Cooling Mode Water Cooling
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, PLT
Place of Origin Shandong, China
Brand Name tj
Model Number 1390
Dimension(L*W*H) 197*146*130cm
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas

laser engraving machine 1390(51*35'' ) with rotary  up and down table



laser engraving machine 1390(51*35'' ) with rotary up and down table

video for you reference



/watch?v=y41kN7LWFXQ&feature=youtu.be







Technical Parameter





JQ1390 laser cutting machine

Item  /  Model

JQ1390

cutting area

1300x900mm/51in*35in (L*W)

Laser power

60w/80w



Laser type

CO2 Laser tube

Cutting speed

0-24000mm/min

Resetting positioning accuracy

0.01mm

Power supply

220V/50HZ  110V/60HZ

Operating temperature

0 - 45°C

Operating humidity

5-95%

Min. shaping character

English 1.0x 1.0mm

Graphic format supported

PLT,AI,DXF,BMP,DST

Software supported

CorelDraw, PhotoShop, AutoCAD, TiandaoTajima

Driving system

stepper motor

Cooling mode

Water-cooling and protection system

Equipment Dimensions

185cm*131cm*107cm / 73in*52in*42in (L*W*H)

Net Weight:

420KG

470KG

Shipping Dimensions

1760*1380*1200mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens





Machin parts

laser engraving machine 1390(51*35'' ) with rotary up and down tablelaser engraving machine 1390(51*35'' ) with rotary up and down table

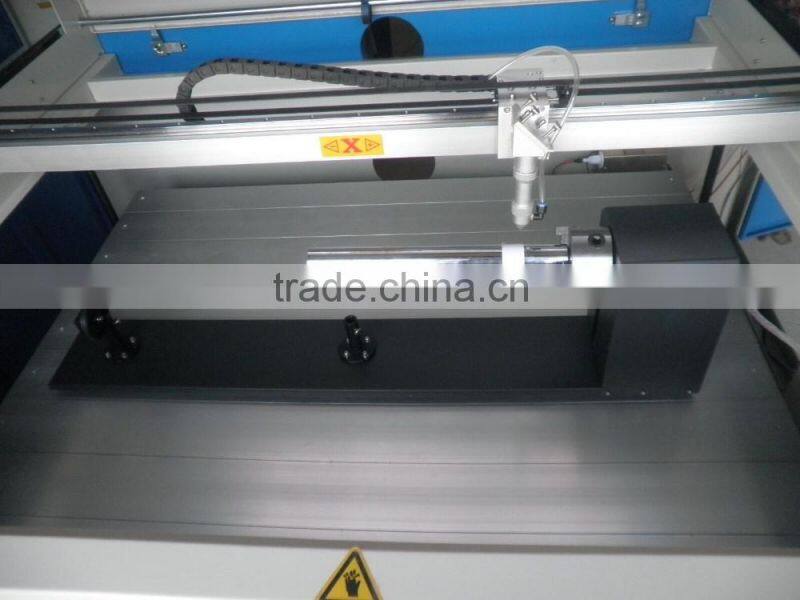

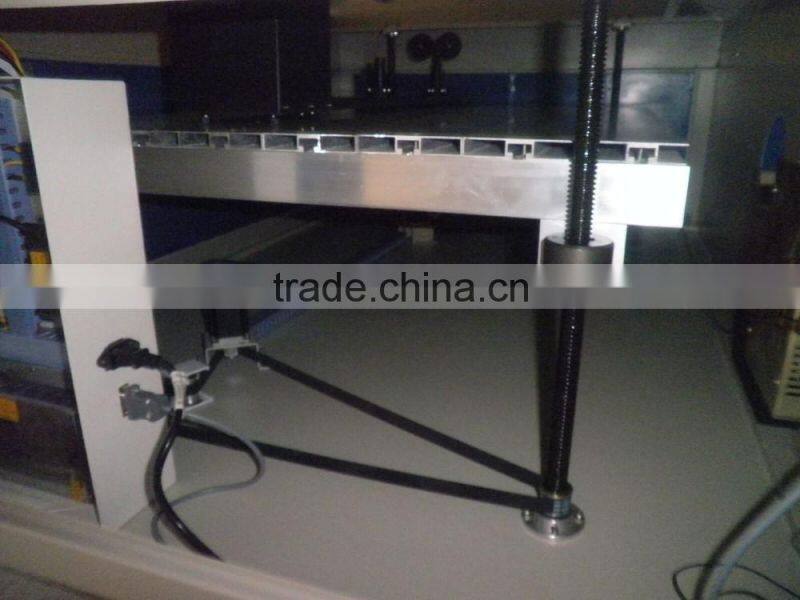

 up and down table                                                 rotary for 3d engraving

laser engraving machine 1390(51*35'' ) with rotary up and down tablelaser engraving machine 1390(51*35'' ) with rotary up and down table

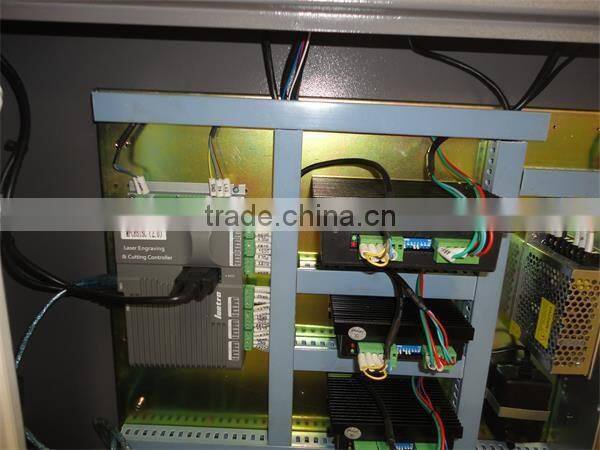

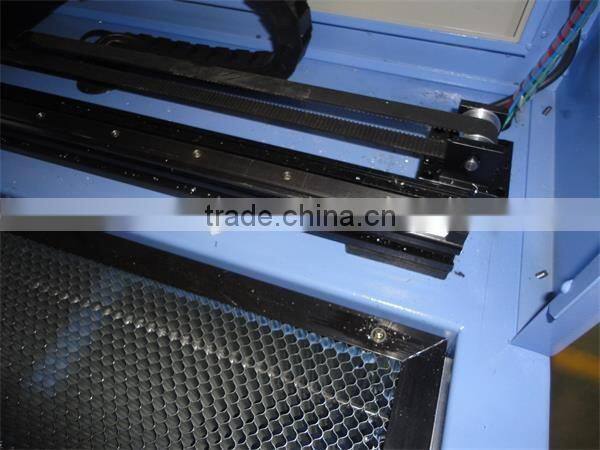

 electrical box (stepper motor  )                                        square linear guide

laser engraving machine 1390(51*35'' ) with rotary up and down table laser engraving machine 1390(51*35'' ) with rotary up and down table

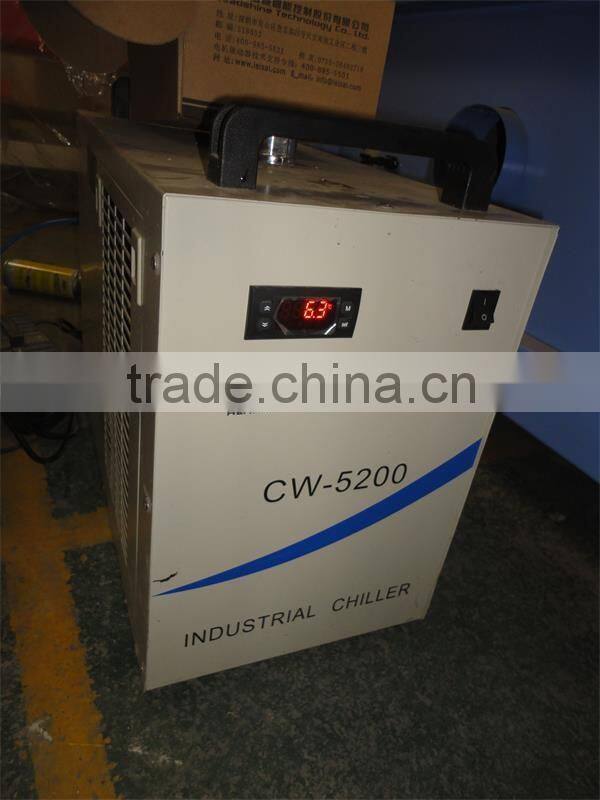

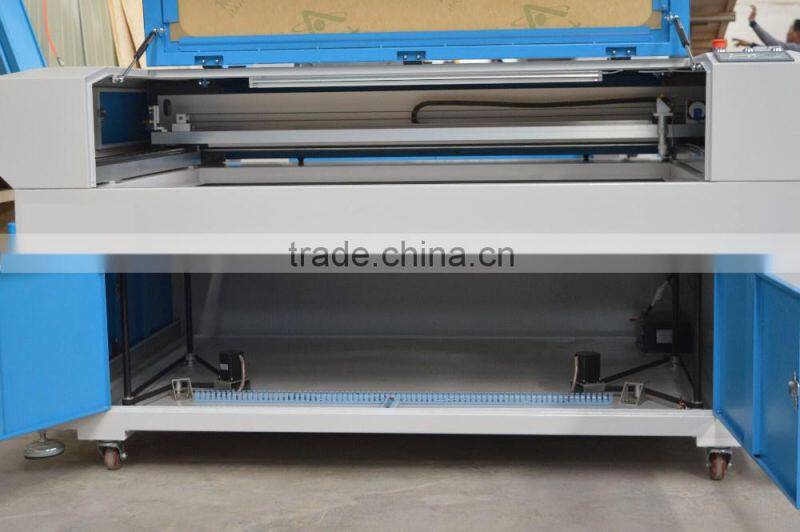

rotary  and up and down table                                           cw chiller

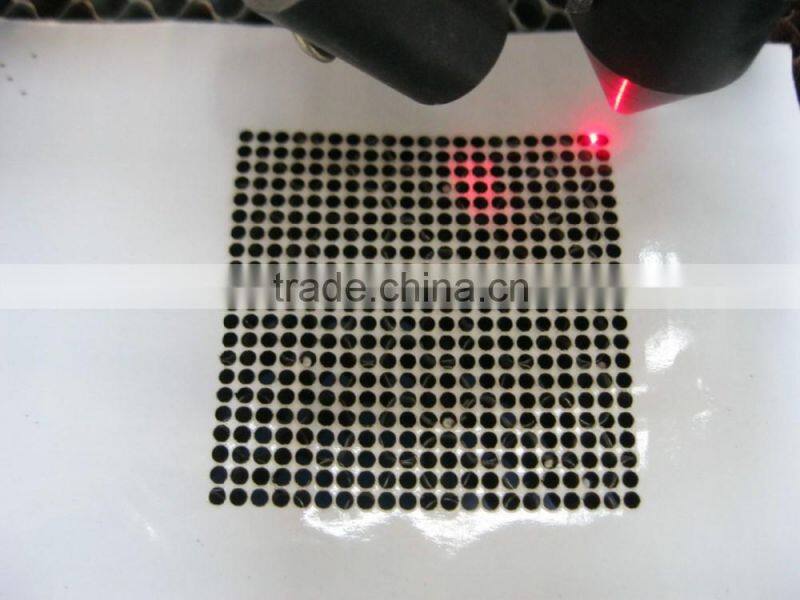

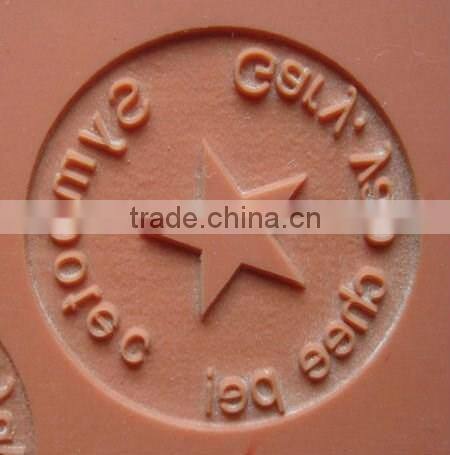

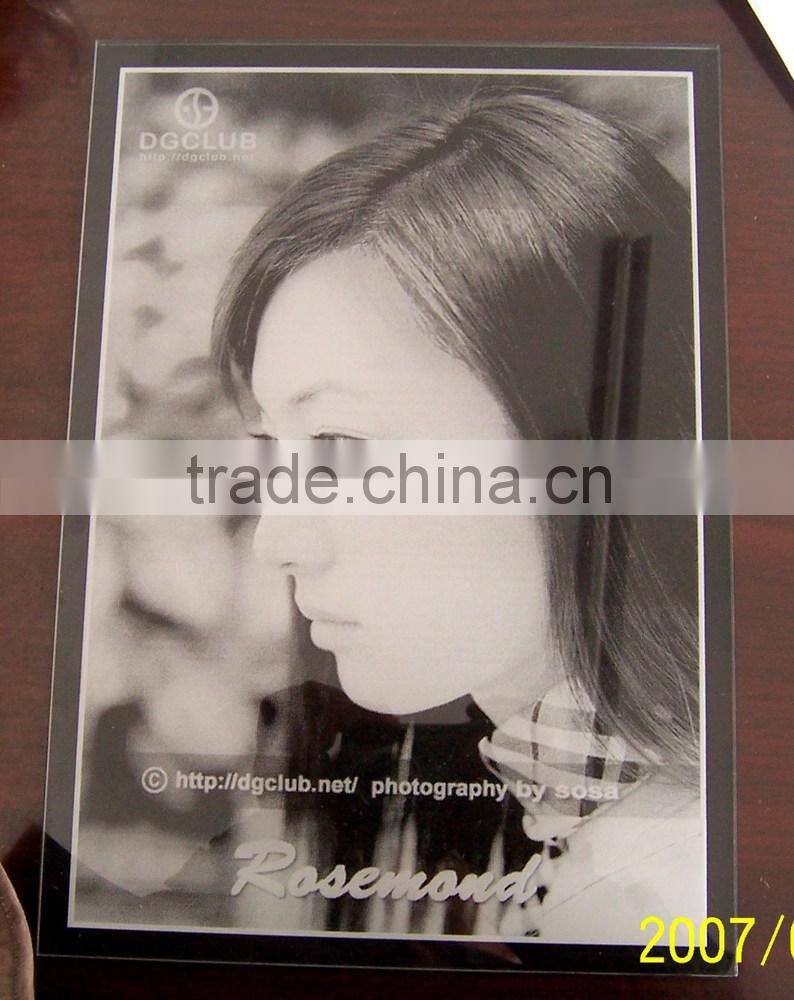

sample show

laser engraving machine 1390(51*35'' ) with rotary up and down tablelaser engraving machine 1390(51*35'' ) with rotary up and down tablelaser engraving machine 1390(51*35'' ) with rotary up and down tablelaser engraving machine 1390(51*35'' ) with rotary up and down tablelaser engraving machine 1390(51*35'' ) with rotary up and down tablelaser engraving machine 1390(51*35'' ) with rotary up and down table

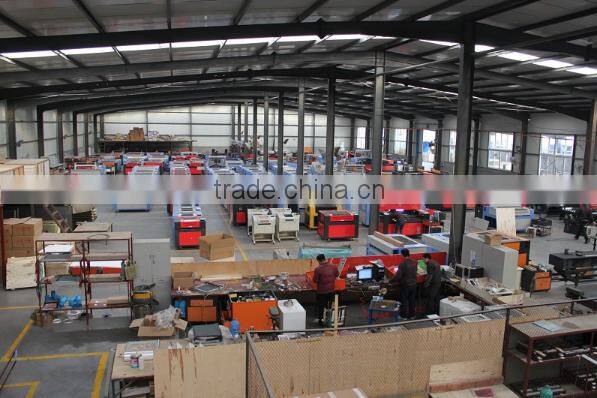

Factory
