laser marking machine
- 500 Set / Sets per Month
- Qingdao
- Credit Card
- Jinan XT LASER+Attractive & hot sale fiber laser marking machine
- Jinan XT LASER+Fiber Laser Marking Machine For Stainless steel/Copper
- Jinan XT LASER+fiber laser marking machine -Jinan XT LASERbrand
- Jinan XT LASER+Hot sale fiber laser marking machine!
- 0.2-1.2mm gold silver laser cutting machine | fiber laser marking machine
- 1mm gold silver laser cutting machine | 30W 50W fiber laser marking machine
Product Details
Condition: | New | Laser Type: | CO2 | CNC or Not: | Yes |
Cooling Mode: | Water Cooling | Control Software: | Win XP + AHLASER marker system | Graphic Format Supported: | AI |
Working Accuracy: | 0.01mm | Place of Origin: | Shandong, China | Brand Name: | TianJiao |
Model Number: | TJ30M | Power(W): | 30w | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CO2 laser marking machine 30w
Features:
it is equipped with original laser machine imported from America and the laser is discharged steadily
so it's seldom fall off and its life is as long as 45,000 hours. Its disposable investment is high but the
cost for use and maintaining is very low.
Other manufacturers adopt domestic CO2 glass tube which has to be changed every 1-3 months. CO2 gas will leak so even if it's not used it had to be discarded after one year. It will often
fall off and the cost for use is high.
Principles:
CO2 laser marking machine is a gas laser machine whose frequency band wave length of infrared
light is 10.64um.
CO2 gas is filled in the discharge tube as the medium to produce laser.
When high voltage is added to the electrode, it will produce glow discharge in the discharge tube and
then the gas molecule will discharge laser. After the energy of laser is strengthened, it will form the
laser beams to process the materials. Computer-controlled resonance mirror can change the path of the laser beams so that automatic marking can
be accomplished.
Performance:
With high speed scanning resonance mirror to get high precision and high speed,
the software controlling system has the interface of WINDOWS and comprises files output by
software such as CorelDraw, AutoCAD and Photoshop.
It can support graphic file formats such as PLT, PCX, DXF, and BMP, etc. and use
fonts such as SHX, TTF directly.
It also can mark automatic code, sequence number, batch number, date, bar code and two-dimensional code. The software can mark the figures on the opposite side.
Product applications:
Wood, paper, PVC, ABS, epoxy resin Ep, PMMA, leather, glass, unsaturated polyester, etc.
It's also widely used in industries such as wood, foodstuffs, package, handicrafts, electronic
components, clothes, leather and paper.
Technology parameters:
Parameter: CO2-30W
Max. laser power (W): 30W
Laser wave-length (um): 10.064
Laser repetition frequency: <50kHz
Standard marking area (mm): 100 x 100 or 50 x 50 - 300 x 300
Marking depth (mm): <3
Linear speed (mm/s): <7,000
Min. line width (mm): 0.1
Min. character size (mm): 0.4
Repetition accuracy (mm): 0.01
Power consumed (kW): <1.2kW
Electrical source: 220V±15% AC, 50Hz, 20A
The outline size of the system (length x width x height): standards by the real size
Optical system: 1,200 x 430 x 1,200
Control system: 560 x 660 x 1,000
Soft ware: Win XP + AHLASER marker system
Remarks a set of machine is composed of the path of rays, control chest, monitor, worktable.
You can choose revolving worktable and automatic matching system

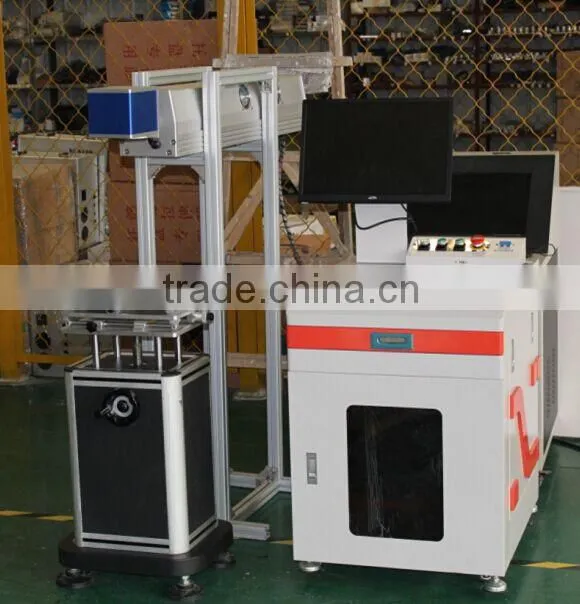

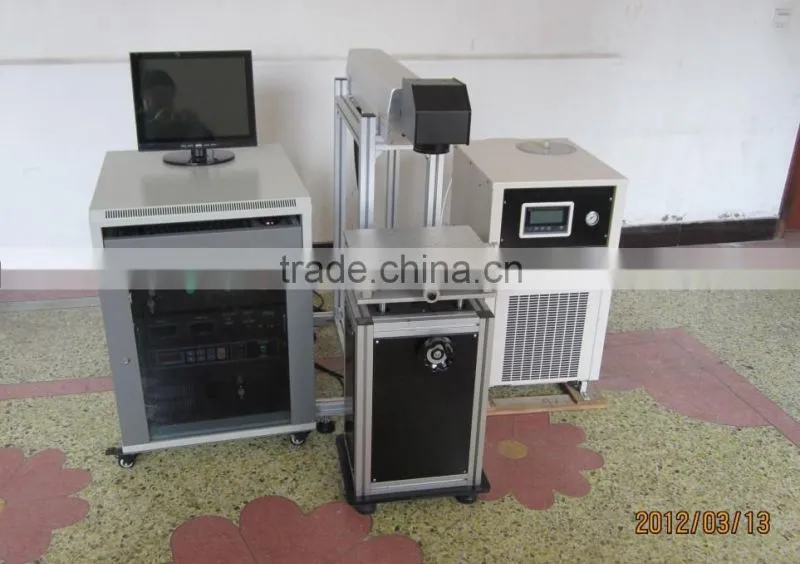

Picture show:
Video Link:
http://youtu.be/3KEFXTApC3k
http://youtu.be/dXiwZbvkDQ0

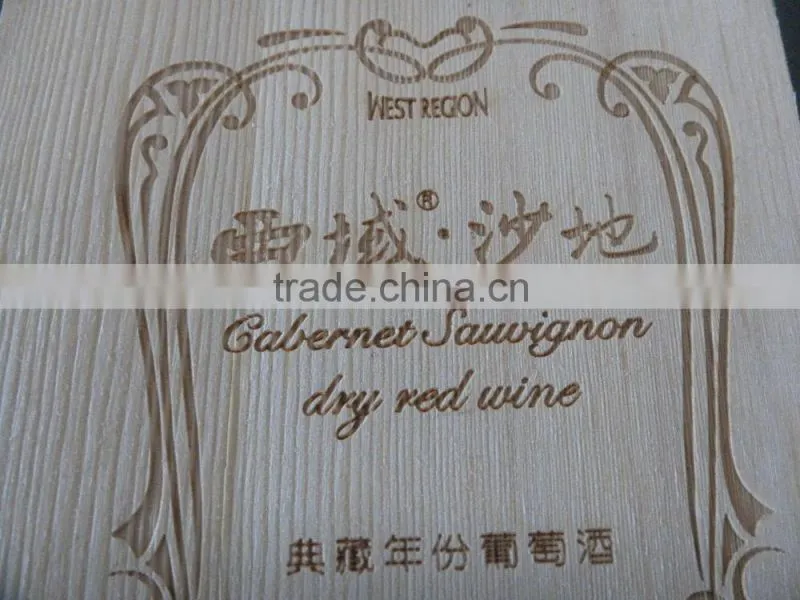

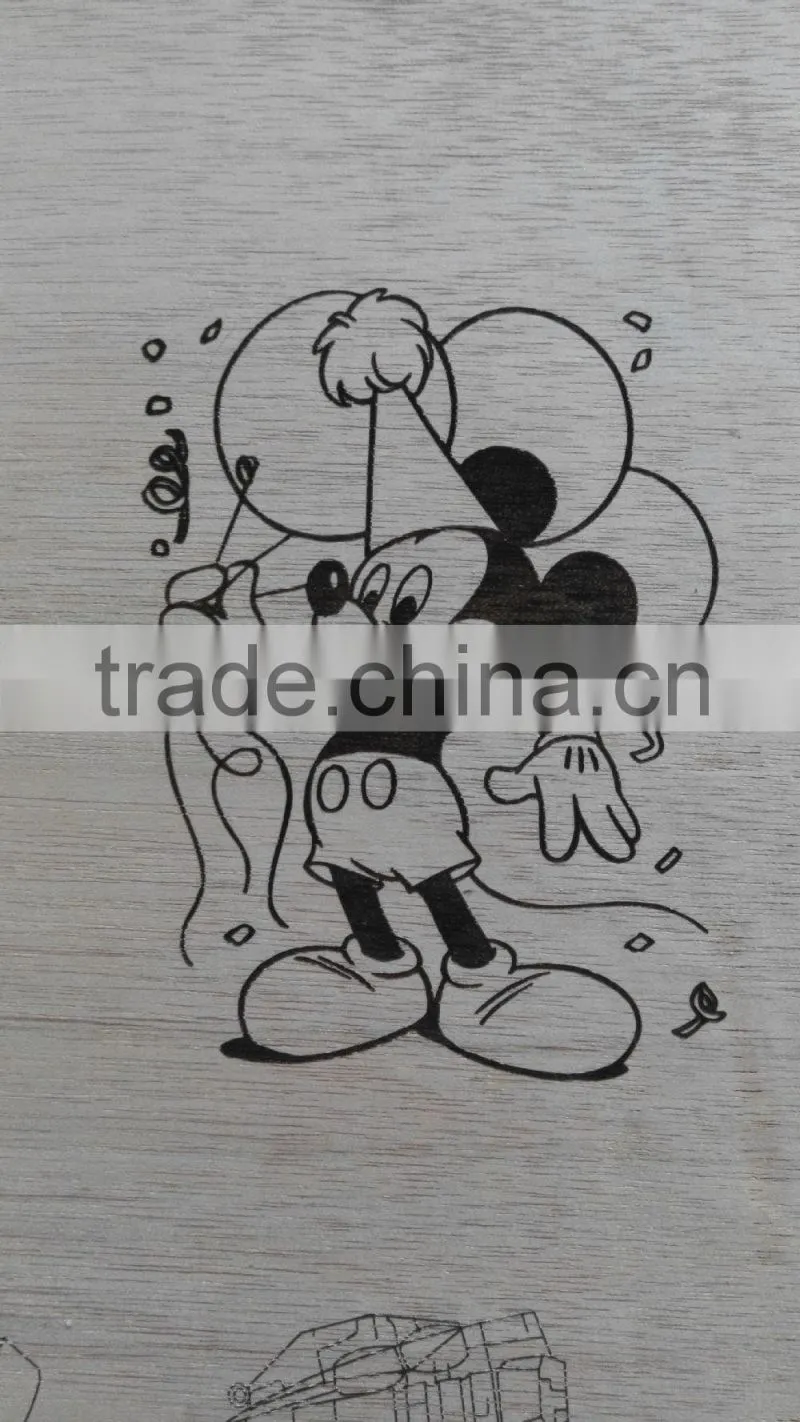

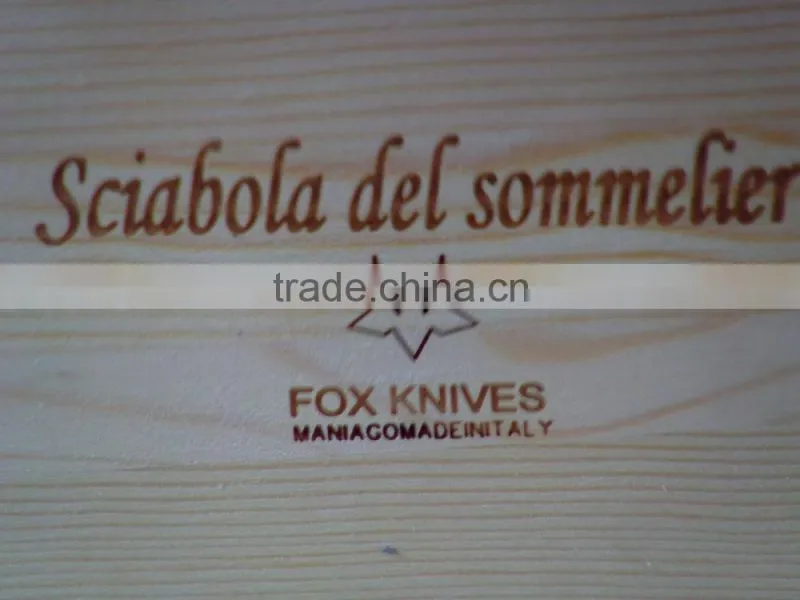

Samples:
Welcome to contact me:
isabella
wechat: isabella8689
whatsapple: 8615866646109
skype: xihong61
