ATC Multi-head Sculpture Wood Carving Cnc Router Machine

ATC Multi-head Sculpture Wood Carving Cnc Router Machine thumbnail-1
ATC Multi-head Sculpture Wood Carving Cnc Router Machine thumbnail-2
ATC Multi-head Sculpture Wood Carving Cnc Router Machine thumbnail-3
ATC Multi-head Sculpture Wood Carving Cnc Router Machine photo-1
ATC Multi-head Sculpture Wood Carving Cnc Router Machine photo-2
ATC Multi-head Sculpture Wood Carving Cnc Router Machine photo-3
US$ 2,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan Tian Jiao Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name tianjiao
Model Number TJ 1325
Voltage 380/50
Power(W) 3kw air cooling or water cooling
Dimension(L*W*H) 3700* 2200 *1600mm
Weight 1600kgs
Certification ce
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

                               ATC multi-head sculpture wood carving cnc router machine

1. Main features:



1 Japan gear reducer , which could increase output torque while decrease output speed,

guarantee the machine run smoothly in high speed.

2 Helical Racks and pinion:Compared with straight racks, helical racks run quieter , especially at high speeds, and increase higher load carrying capacity

3 Top brand guide rail from the world, HIWIN 25mm guide rail, with dust proof function and free of lubrication lifetime.

4 Delta or YASKAWA servo motors, high accuacry, long working life.

5 Taiwan Syntec control system with friendly operation interface, easy to learn.

6 Imported high precision ball screw with big lead.

7 T-slot table could use both vauum pump and clamps.

8 vacuum pump with big suction performance.

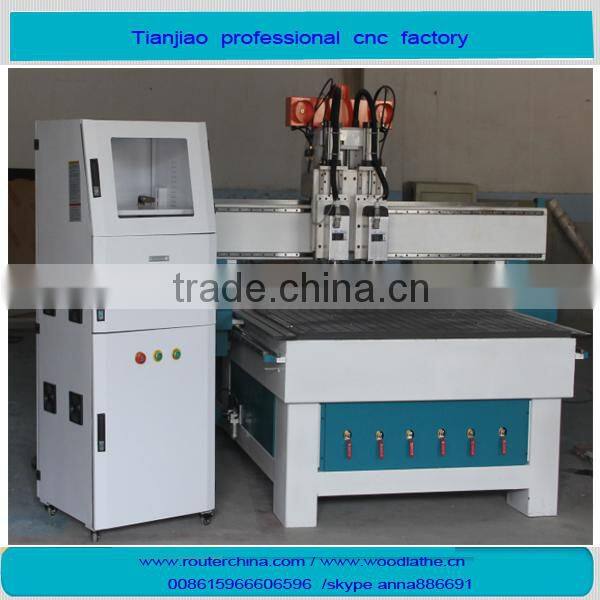

2. Picture of wood cnc router

ATC multi-head sculpture wood carving cnc router machine





3. Technical parameter



CNC Wood Router





Configuration

Parameter

Option

Model

Tj1325MT-2D

6090/1212/1224/1390 etc.

Working area

1300*2500*200mm

 1300*2500*300

Spindle

4.5KW

6KW/9KW for option

Lathe bed

T slot heavy profile steel& Vacuum adsorption



X-Y-Z Structure:

X/Y axis:Rack and Pinion

Z axis: Taiwan Ball screw



Control system

DSP

NC-Studio,Mach3,Syntec for choose

Cooling system

Italy Air cooling

 Domastic water-cooling

Travel speed

30000mm/min

According to the material

Engraving speed

15000mm/min

Rail

Taiwan HIWIN /PMI square linear guide rail

   20.25.30mm

Drive motor

Japan  Servo motor



Spindle speed

0-18000rpm/min



Software

Type3/Artcam/Wentai/Ucancam



Dust Collector Power

2.2KW

2.2 KW single bag / 3.0KW double bags

Vacuum pum

3KW

Chinese Vacuum pump,5.5 KW, 160 CBM/h

Inverter

Taiwan Delta  inverter(5.5KW)

 Fuling ,sifang etc





Command

G code



Repositioning Accuracy

0.05mm



Voltage

AC380V/3PH/50Hz



Running Environment

Temperature:0-45°C

Humidity:5%-95%





4.Suitable Materials and Industrial Applications

Furniture Decoration Industry

1)A large area flat plate engraving

2)panel furniture carving

3wood at murals

4)wood cabinet doors carving



Wood Products Processing

1)sewing machine table

2)electrical counter table

3) sports equipments

Musical Instrument Industry

1)instrument 3D surface engraving

2)shape cutting

Artwork

1)photo frame2)jewelry box

Electronic Industry

1)circuit board

2)insulation material

3)LED display screen

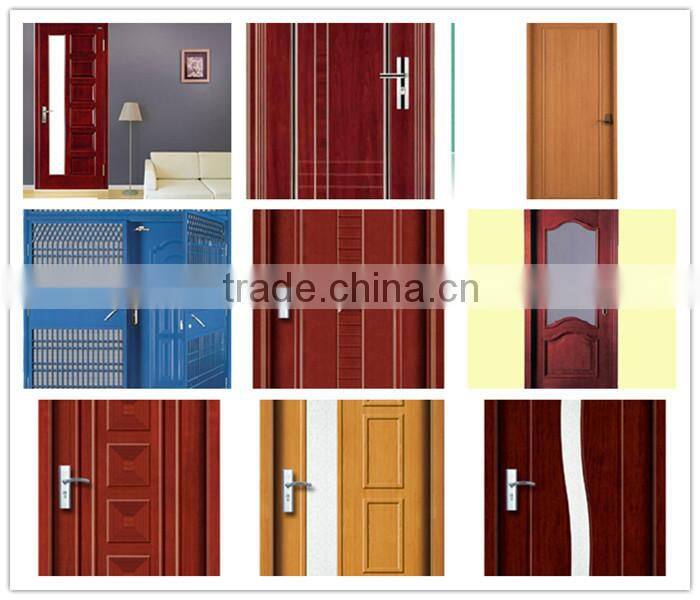

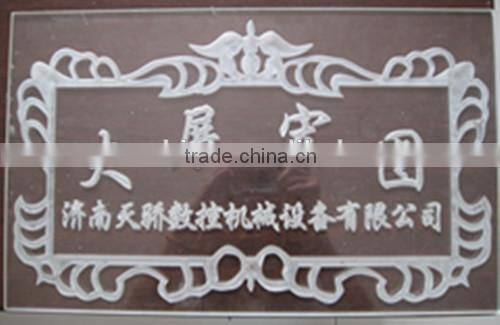

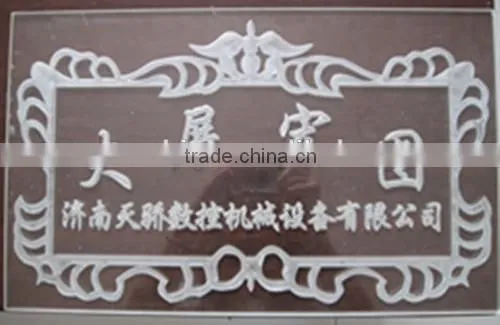

5.Sample Processing Show

ATC multi-head sculpture wood carving cnc router machineATC multi-head sculpture wood carving cnc router machineATC multi-head sculpture wood carving cnc router machine

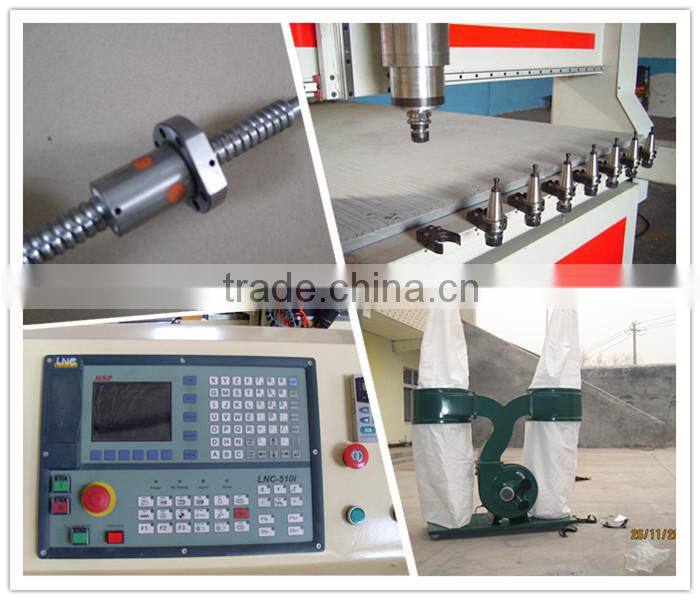

6 Main parts



ATC multi-head sculpture wood carving cnc router machineATC multi-head sculpture wood carving cnc router machine

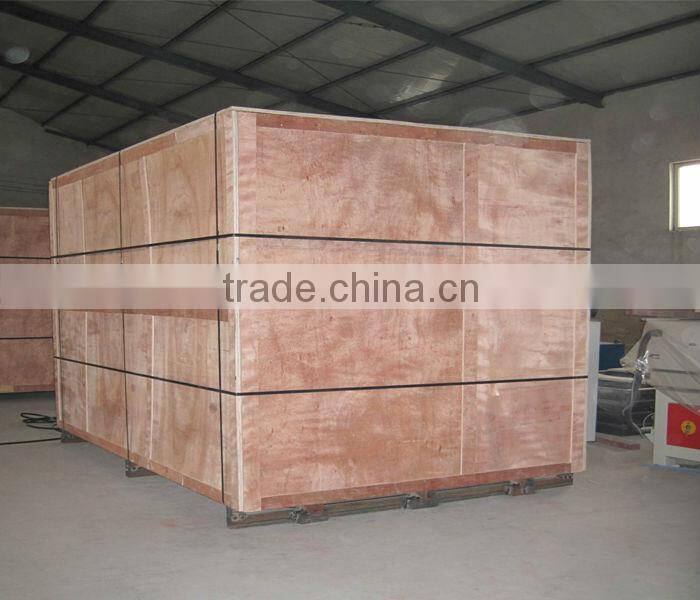

7.Packing Show:

ATC multi-head sculpture wood carving cnc router machine



8.Customer Visiting show:

ATC multi-head sculpture wood carving cnc router machine



9.company certificate

ATC multi-head sculpture wood carving cnc router machine



10.After-sale service






One year free warranty for the whole machine , lifelong maintenance.



Customer response service time within 12 hours.



After the expiry of the warranty , we continue supply life-long maintenance services.



After the expiry of the warranty , still to provide a wide range of software and hardware support , enjoy free lifelong upgrades . And supply the parts at agent price
