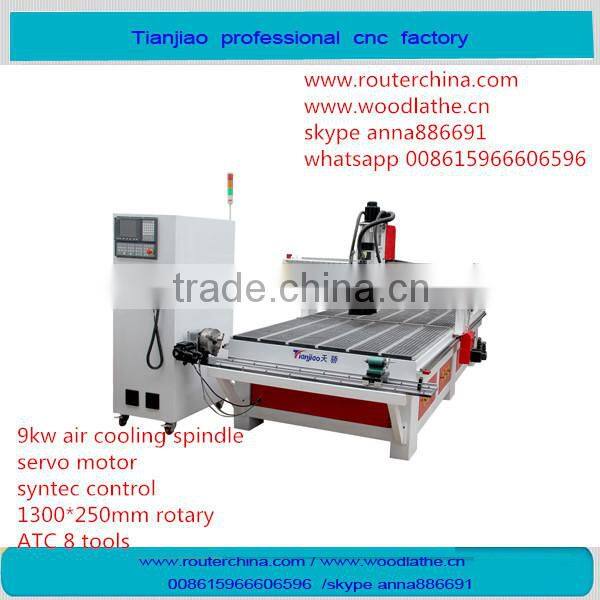

woodworking linear ATC automatic tool change TJ1325-8 cnc router
high efficiency =one machine can replace 36workers
.
Feature
T slot cast steel structure, CLOAK shape tool change , imported Taiwan square orbit, ball screw for Z axis,
rack&pinion for X axis and Y axis , 9 KW Italy HSD air cooling spindle , 1300W SERVO motor ,
Y axis adopt double motor to drive , Taiwan SYNTEC controller system , Artengraver software ,

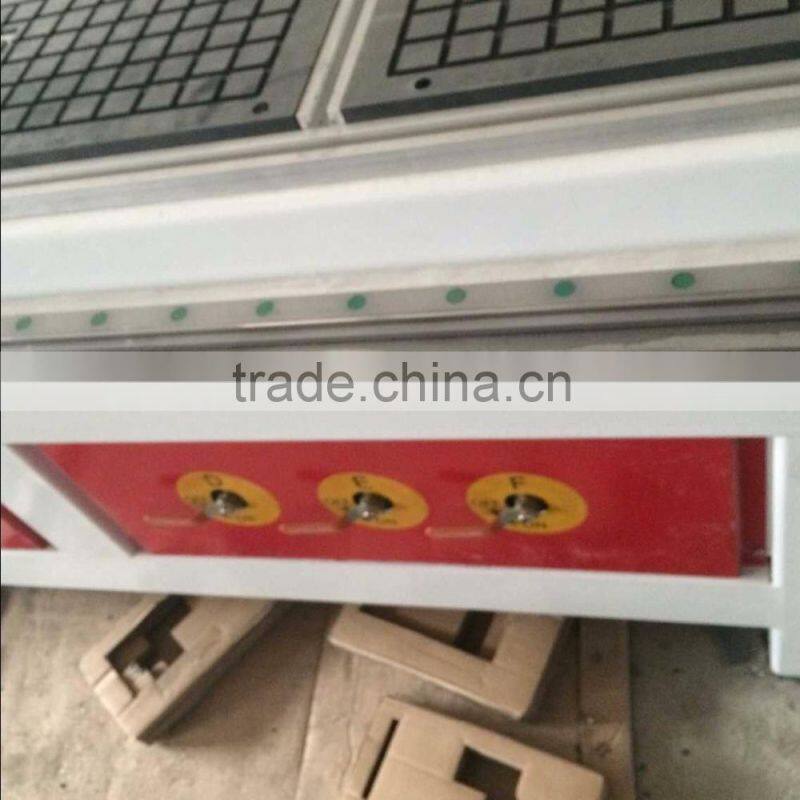

transformer, vacuum table with 6 zones separate vacuum zone , 5.5 KW vacuum pump ,
3 KW dust collector system, dust cover, 20 cutters( φ6, φ12.7), 2 collets
Machine model |
TJ 1325 -8tools |
XY working area |
1300*2500 mm |
Z working area |
300 mm |
Table size |
1600*3100 mm |
Max. speed |
60 m/min |
Max. working speed |
30 m/min |
Working delicacy |
0.05 mm |
Table |
vacuum working table or T-slot |
Command |
G code*u00* mmg*plt |
Surrounding for software |
Windows98/2000/xp |
power |
AC380 3 phases |
Spindle |
9 kw HSD air cooling spindle |
Speed of spindle |
0-18000 rpm/min |
Work mode |
servo motor , Y axis adopt double motors to drive . |
Structure |
Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle |
Engraving software |
Artengraver |
Control |
syntec |
Suitable Materials and Industrial Applications
Furniture Decoration Industry,Wood Products Processing,Musical Instrument Industry,Artwork,Electronic Industry
Main parts

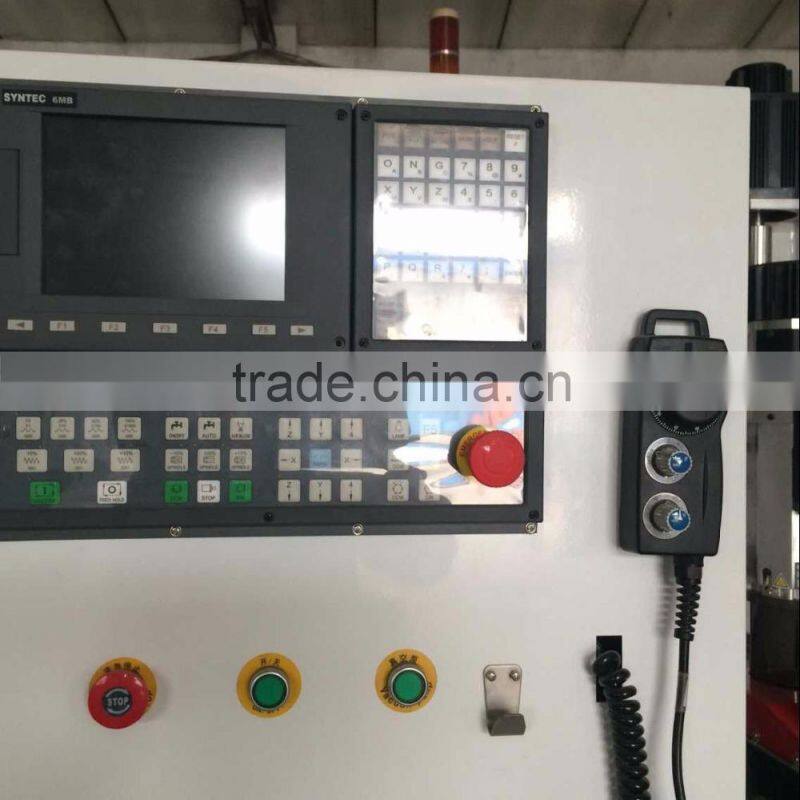

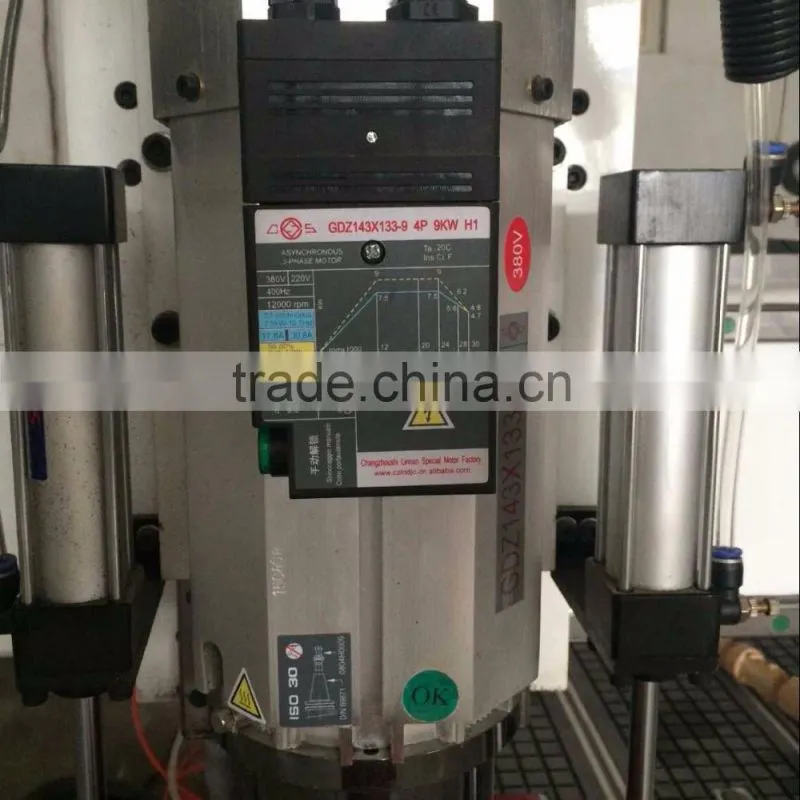

9kw air cooling spindle syntec contro with handwheel

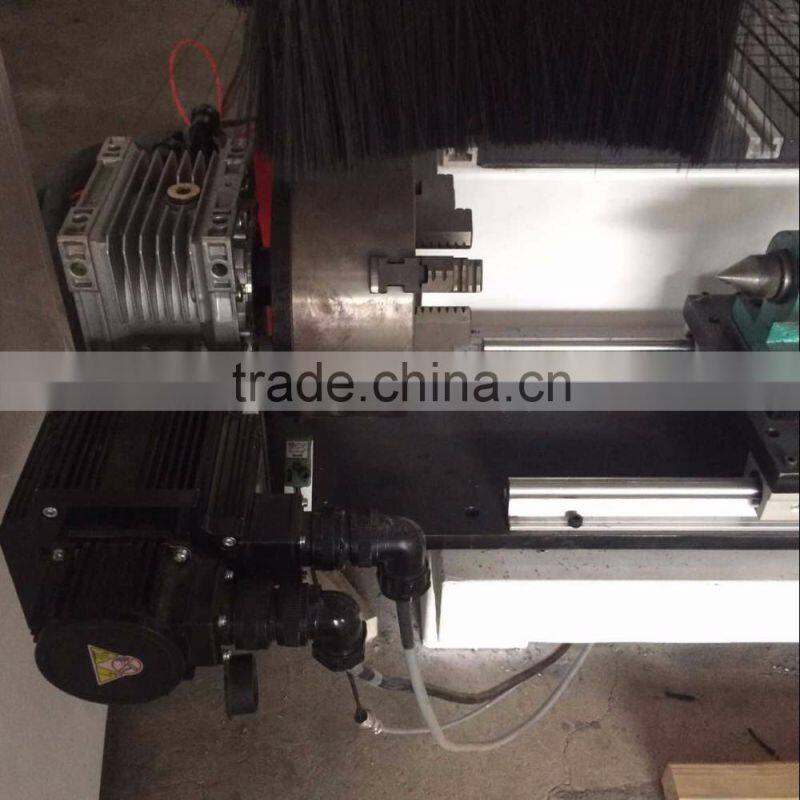

6 tools atc rotary

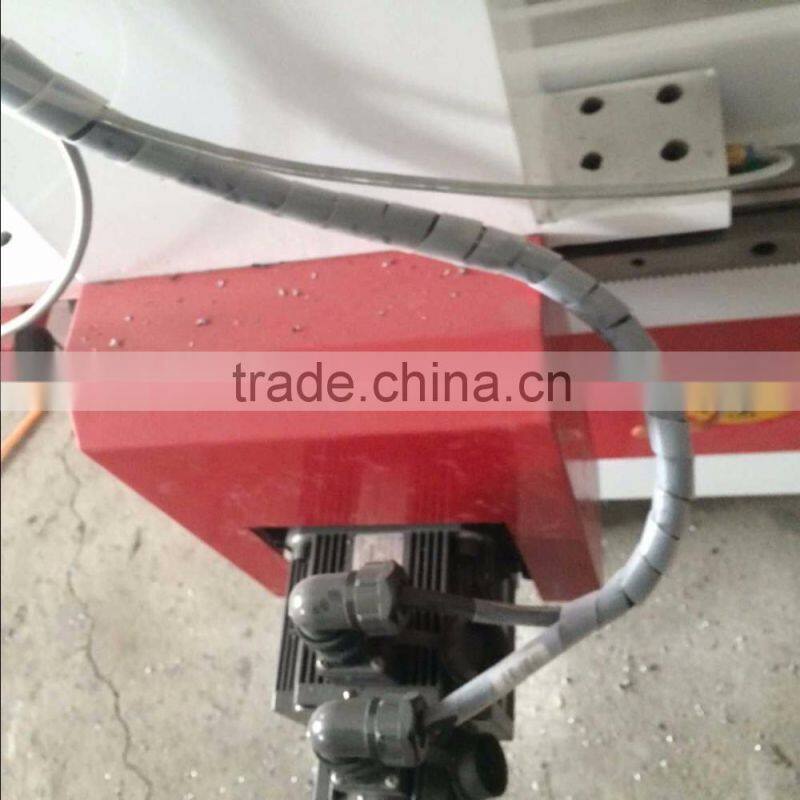

servo motor linear guide

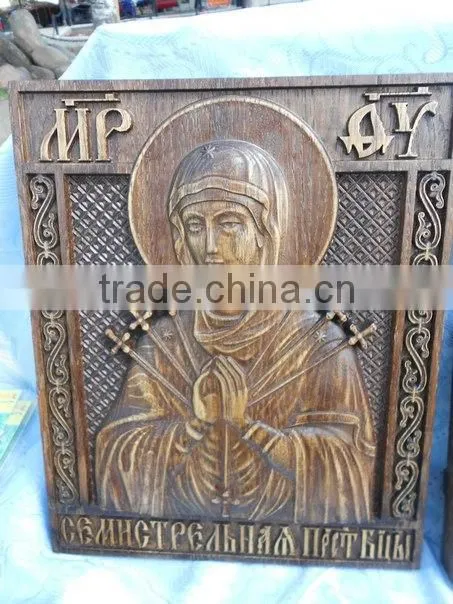

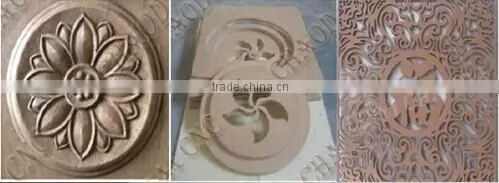

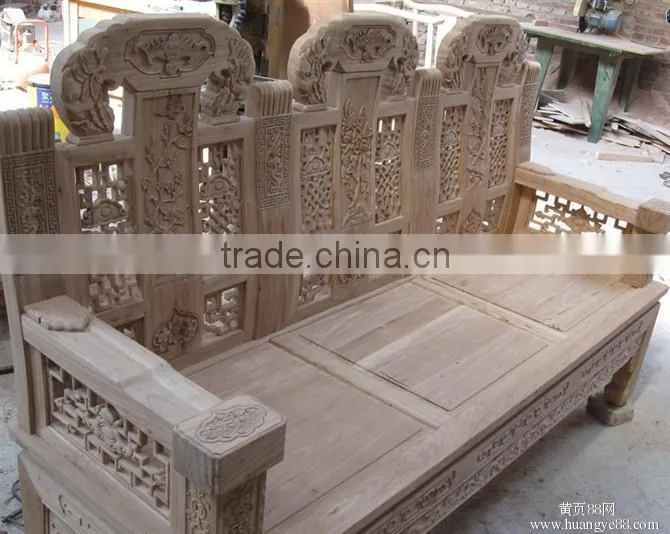

sample
After-sale service
One year free warranty for the whole machine , lifelong maintenance.
Customer response service time within 12 hours.
