professional wood door making ATC cnc router 9kw HSD air cooling spindle

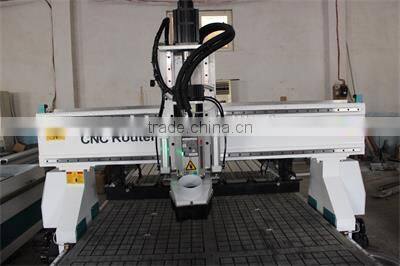

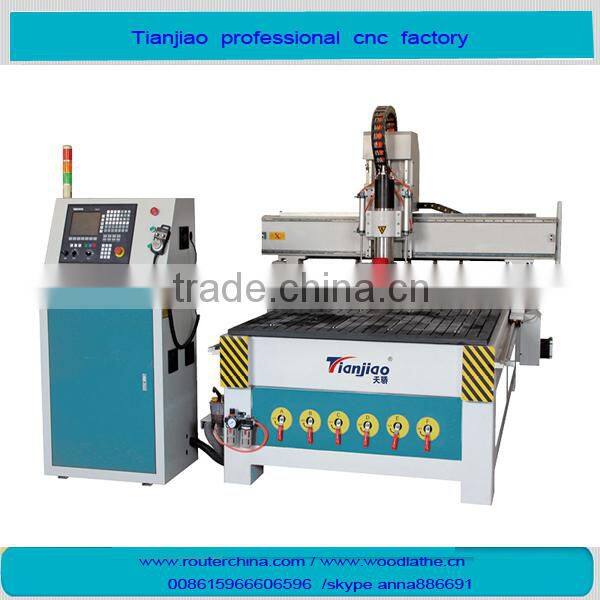

Machin pic
Details
Italy 9kw air cooling spindle with 8 tool change
Vacuum table with T-slot
Taiwan syntec NK260 control systerm with handwheel
Japan Yaskawa servo motor
Automatic oil systerm
NO. |
Description |
Parameter |
1 |
Table size |
336*228*205cm |
2 |
X,Y working area |
1300×2500mm |
3 |
Z working area |
250mm |
4 |
Processing precision |
0.01mm |
5 |
Reposition precision |
0.01mm |
6 |
Table structure |
Vacuum table |
7 |
X,Y,Z structure |
ZTaiwan TBI ballscrew X,Y gearwheel |
8 |
Self-consuming power |
2.8KW |
9 |
Max ilding speed |
50000mm/min |
10 |
Max working speed |
30000mm/min |
11 |
Spindle power |
Italy 9kw air cooling spindle with 8 tool change |
13 |
Working voltage |
AC380V/50Hz |
14 |
Spindle rotating speed |
0-24000rpm/min |
15 |
Drive Motor |
Japan Yaskawa servo motor |
16 |
Operation system |
NK260 |
17 |
Net weight |
2000kg |
18 |
Gross weight |
2300kg |
Main parts

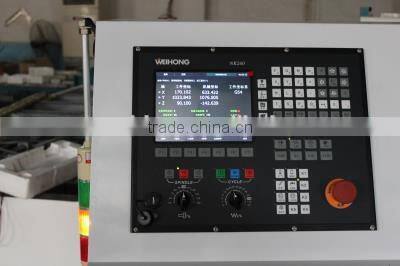

NK260 control systerm with handwheel control
Italy 9KW air cooling spindle 8 tool change under gantry easy to change

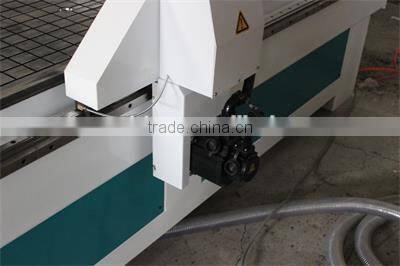

Japan yaskawa servo motor
Application
Furniture :wooden doors,cabinets,plate,office and wood furniture,tables,chairs,doors and window .
The wood products :voice box,game cabinets,computer tables,sewing machines table,instrument.
Plate processing :insulation parts,plastic chemical components,PCB,inner body of car,bowling tracks,stairs,anti-bate board,epoxy resin,ABS,PP,PE,and other carbon mixed compounds .
Decorate industry :Acrylic,PVC,MDF,artficial stone,organic glass,plastic and soft metals such as copper,aluminum plate engraving and milling process
