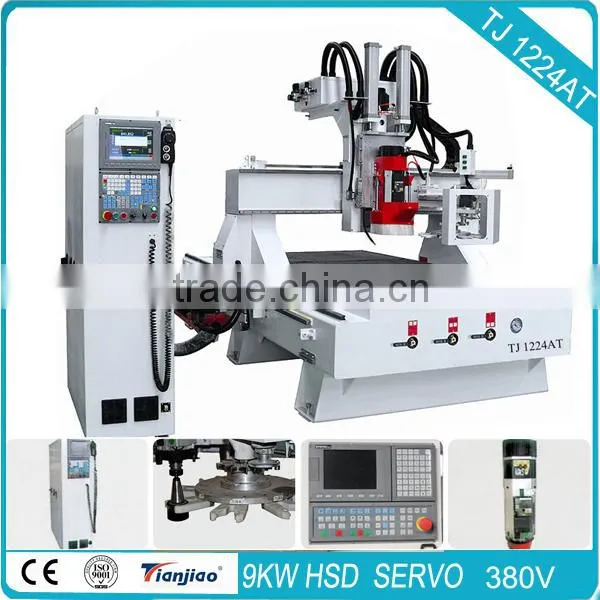

high precision 3D cnc woodworking machine with auto tool changer

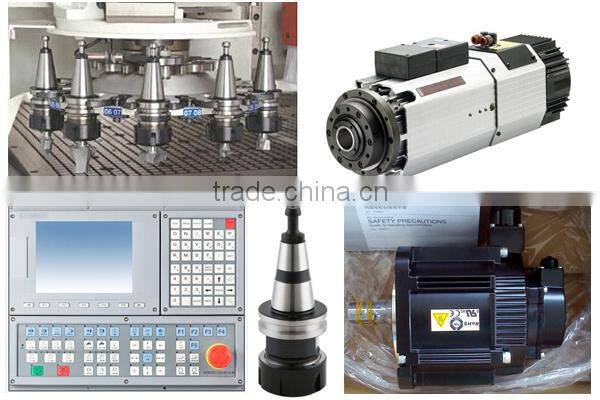

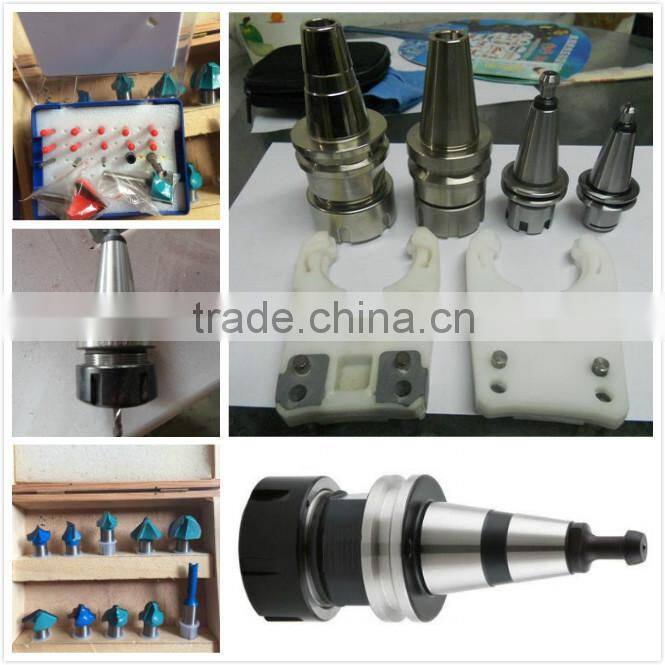

ATC cnc router TJ 1224AT with cloak shape tool liabrary , 8 pieces tools . can realize automatic tool change within 8 seconds . thus suit for complicated wood work , like door need different tool shape ,
- Whole steel structure adopt 6mm steel tube .
- Imported Italy 9KW tool change air cooling spindle , 24000 rpm
- Japan SERVO motor 1300W
- Original Taiwan HIWIN square orbit 30#
- each electric wire use WEIPU to connect
Machine model |
TJ 1224AT |
XY working area |
1200*2400 mm |
Z working area |
300 mm |
Table size |
3100*3100 mm |
Max. speed |
60 m/min |
Max. working speed |
30 m/min |
Working delicacy |
0.05 mm |
Table |
vacuum table with suction |
Command |
G code*u00* mmg*plt |
Surrounding for software |
Windows98/2000/xp |
power |
AC380 3 phases |
Spindle |
9KW Italy HSD air cooling atc spindle |
Speed of spindle |
0-24000 rpm/min |
Work mode |
Servo motor , Y axis adopt double motor to driver |
Structure |
Steel structure, square orbit |
X Y axis driver type |
Helical rack&pinion |
Z axis driver type |
Taiwan TBI ball screw |
Engraving software |
Option |
Control software |
Taiwan SYNTEC |
A wood CNC router can be used in the production of many different items, such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture, and so on. In addition, wood CNC router helps in the thermoforming of plastics by automating the trimming process. CNC routers can help ensure part repeatability and sufficient factory output
Application sample :
more information pls refer to :
