air cylinder atc cnc router wood door frame making machine
Air cylinder type auto tool chante cnc router
2 spindle, one is vertical and another is level
2 spindle can change automaticly, no need change cutter

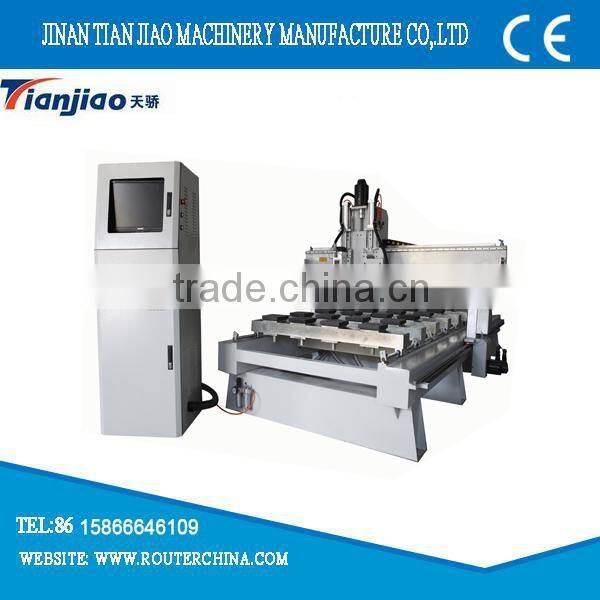

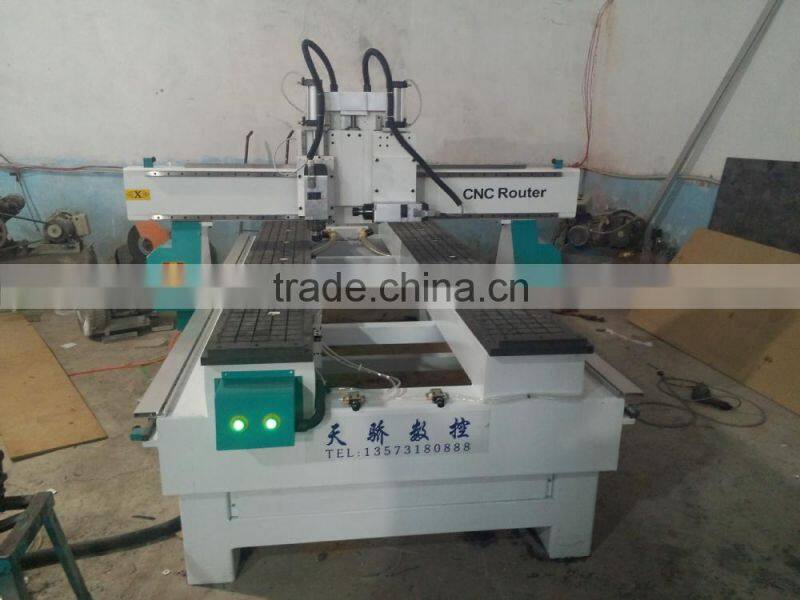

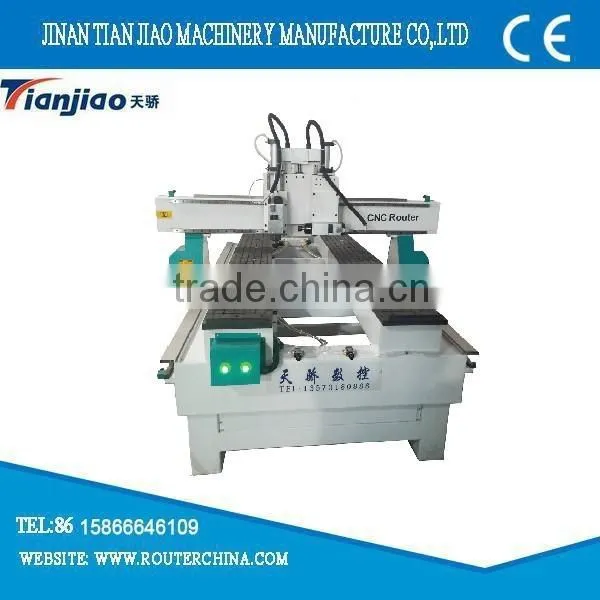

1.machine picture
2.parameters:
CNC Wood Router |
|
|
Configuration | Parameter | Option |
Model | Tj1325AT-2D | 6090/1212/1224/1530etc. |
Working area | 1300*2500*200mm | 1300*2500*300 |
Spindle | 4.5KW air cooling | 6KW/9KW for option |
Lathe bed | Vacuum adsorption |
|
X-Y-Z Structure: | X/Y axis:Rack and Pinion Z axis: Taiwan Ball screw |
|
Control system | NC studio system | NC-Studio,Mach3,Syntec for choose |
| ||
Travel speed | 30000mm/min | According to the material |
Engraving speed | 20000mm/min | |
Rail | Taiwan HIWIN /PMI square linear guide rail | 20.25.30mm |
Drive motor | China made large step mortor and driver |
|
Spindle speed | 0-18000rpm/min |
|
Software | Type3/Artcam/Wentai/Ucancam |
|
Dust Collector Power | 3KW | 2.2 KW single bag / 3.0KW double bags |
Vacuum pum | 5.5KW | Chinese Vacuum pump,5.5 KW, 160 CBM/h |
Inverter | Fuling inverter | Delta |
3.Application:
Widely used in wood door frame making, wooden floor carving,
if you also processing wood door, suggest follow model:
4. Features:
Thick steel structure and gantry
Two 4.5kw air cooling spindles automatic change, one is vertical one is level,
Large step motor and driver
Hiwin square orbit and slipper
Helical gear and pinion
vacuum table
Original NC studio control system
Water-Oil seperator
Air cylinder

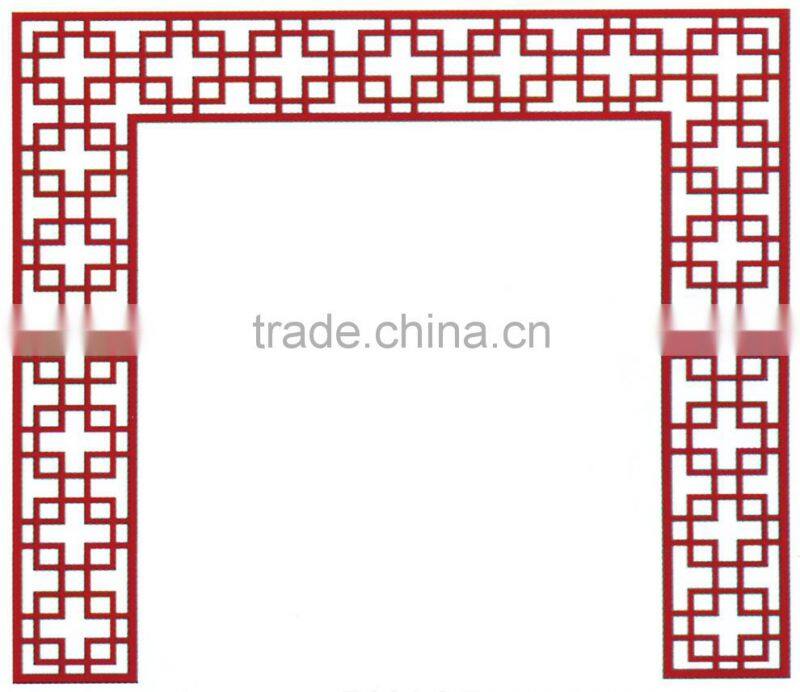

5.samples:
Before sale
1.Patient introduce and professional suggest buying selection
2.Real time report production situation
3.Take pictures and make videoes with your done machine
4. Strict test and debugg machine quality before shipping
After sale
24 hours on line service and phone on
2 years gurantee term
During gurantee term, repair or change damaged parts for free
Exceed gurantee term, offer at cost price
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
