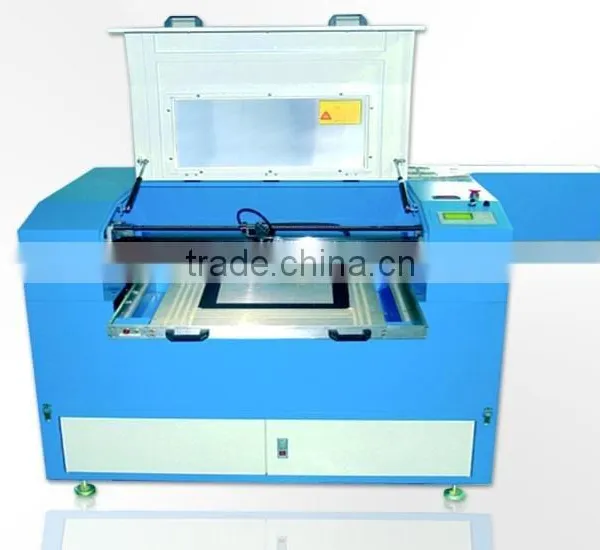

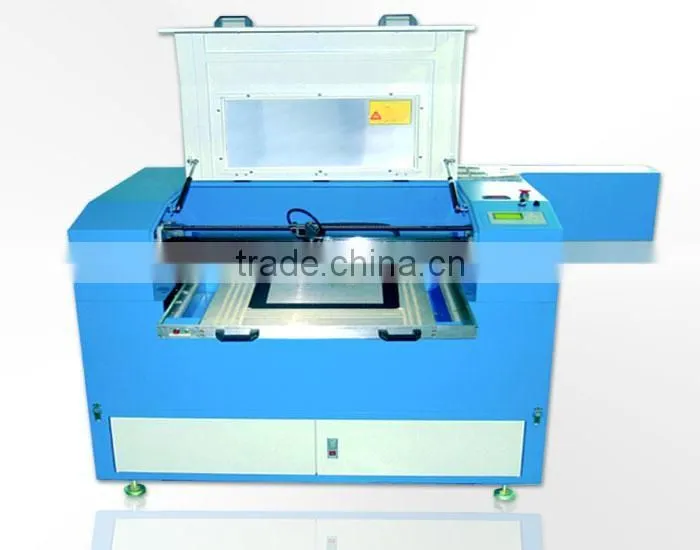

Help CenterHigh Precision Screw Laser Cutting Machine for Touch
Related Products
System characteristic
1. Mini, high cutting speed, high precision.
2. Fly light path, lift worktable.
3. Red light preview.
4. Adopt imported high class motor, Japanese high accurate belt and belt wheel, imported slide-rail in order to guarantee high precision in high speed movement. Max. Cutting speed 500mm/s, Max. Marking speed 1500mm/s, repetitive positioning precision.
5. Consist of optical system, motor system, control system, fume exhaust system, blow-through fan system and focus positioning device. Optional accessory: beehive absorption table. Front door and back door could be open. Max. Cutting scope: 800mm X any length.
6. Support PLT, BMP, DXF, AI and JPG, etc. Can make different cutting and marking by setting separated parameters layers.
Relative parameters:
Product model:MT-750
Laser power:80W
USB contact
Laser typeL:CO2 seraled off glass laser,water-cooling 10.6um
Effective width:700×500mm
Engraving scanning speed:0-64000mm/min
Maximum curvilinear motion speed:50000mm/min
Cutting speed: 0-40000mm/min
Laser energy control:0-100% software setup
Maximum scanning accuracy:2500DPI
Weight:200KG
Locating accuracy:≤0.01mm
Supporting column format:AI,DST,PLT,BMP,DXF
Supporting software:CO0RELDRAW,PHOTOSHOP,AUTOCAD/CAM
Color independent separation cutting:Label parameter can be set up according ti the color
Work remperature:0℃~45℃
External dimensions:1060*780*960mm
Packing external dimensions:1220*940*1200mm
Machine Configuration
Parts Name |
Description |
Quantity |
Software .and Control |
Taiwan laser cutting system and control system |
One |
Guide Rail |
Guide Rail imported from Taiwan | Three |
Screw |
High precision imported from Taiwan |
|
Motor |
Step motor imported from Japan |
Two |
Laser power supply |
Beijing laser power supply |
One |
Belt |
Belt imported from American |
Three |
Lens |
Lens imported from American |
Four |
Cooling Box |
Cooling box (3000 type) for laser cutter |
One |
Induced Draft Fan |
Centrifugal induced draft fan |
One |
Air Pump |
Hailea electromagnetic air compressor |
One |
Laser Tube |
Beijing laser tube |
One |
Honeycomb Sucker Plate |
Iron material for aviation |
One |
Chassis |
Chassis Welding of cold rolled plate |
One |
Guangzhou Myteck Machinery Co., Ltd represents a good Chinese laser equipment factory China on international market. We supply good quality and all categories of laser equipment, including cutting machines, laser engraving machines, laser marking machines, computerized bending machines and knife mold machines.
We take care of your demand and your investment and we offer caring service by good communication.
