Home > Manufacturing & Processing Machinery > Casting & Forging > Cold Forging > External Threading Machine

External Threading Machine

Name: External Threading Machine
Brand: xinggong
SKU: 124333305
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Application:

fastener

Production Capacity:

3m/min

Place of Origin:

Hebei, China

Contact Supplier Request Quote Chat Now

Xinggong Machine Manufacturing Co., Ltd. Of Hebei

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application fastener

Production Capacity 3m/min

Place of Origin Hebei, China

Brand Name xinggong

Model Number z28-80

Voltage 380v

Power(W) 4kw

Dimension(L*W*H) 1480*1330*1440mm

Weight 1700KG

Certification ISO9001, CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

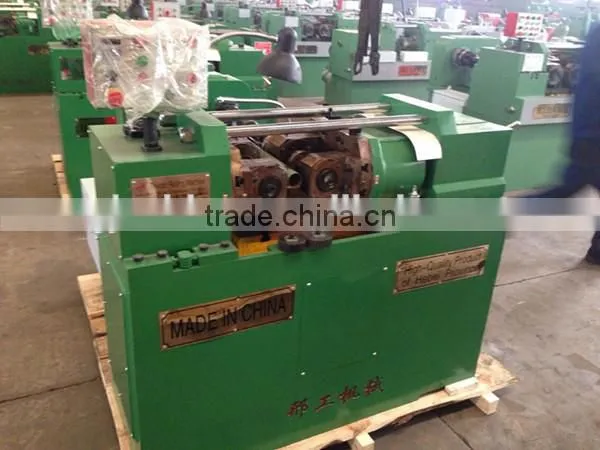

external threading machine

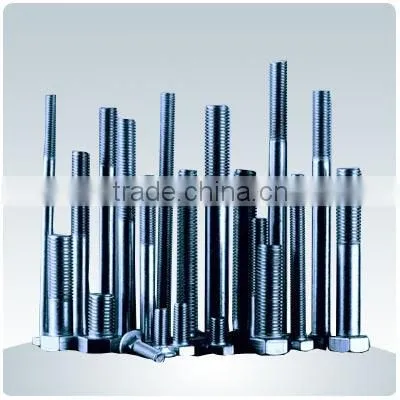

this model is widely praised for its rational price,easy maintenance and high quality.besides axial and radial process,it is used to process regular and irregular bolt,through screw etc.with optional embossing roller.the through screw made with this machine in ZheJiang Standard Parts base has been exported to US,Canada and Europe.

parameters:

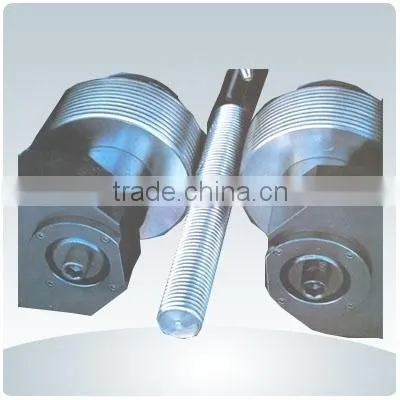

pressure of roller max:150KN

working dia:4-48mm

OD of roller:120-170mm

BD of roller:54mm

roller width max:100mm

dip angle of main shaft:+ -5degree

center distance of main shaft:120-240mm

rotary speed of main shaft:36,47,60,78(r/min)

feed speed of movable shaft:5mm/s

thread length:no limits

main power:4kw
