hex head bolts threaded machine

hex head bolts threaded machine

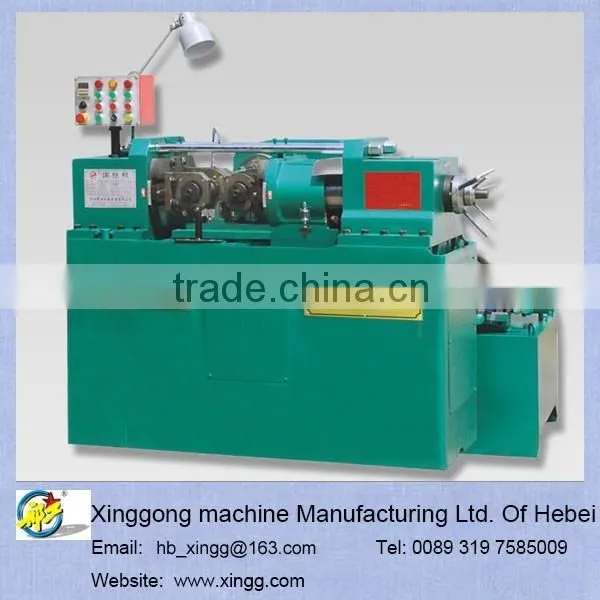

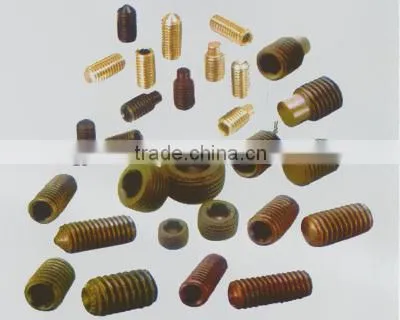

rolling machine is widely praised for its rational price,easy maintenance and high quality.besides axial and radial process,it is used to process regular and irregular bolt,through screw etc.with optional embossing roller.the through screw made with machine in zhejiang standard parts base has been exported to US,Canada and Europe.

Parameters:

Pressure of Roller max:150KN

 Rotary speed of main shaft:36,47,60,78(r/min)

Working Dia:4-48mm

 Feed speed of movable shaft: 5mm/s

OD of roller:120-170mm

Thread length(no limits)

BD od roller:54mm

main power:4KW

Roller width max:100mm

 Hydraulic power:2.2KW

Dip Angle of Main Shaft:5

 Weight:1700KG

Center Distance of Main shaft:120-240mm

 Size:1500*1380*1140mm
