Bolt Rod and Screw Threading Machine

FOB Price

US$ 3,000 - 23,000 / Set

1 Set(Min. Order)

Port China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Hebei, China
Brand Name	XINGGONG	Model Number	Z28-80
Machine Type	Roll Forming Machine	Raw Material	Other, casting
Material / Metal Processed	Carbon Steel	Power	Other
Automation	Automatic	Certification	ISO 9001:2000
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

bolt rod and screw threading machine

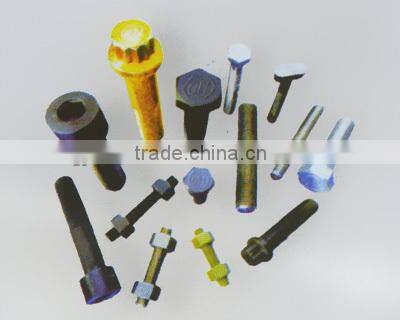

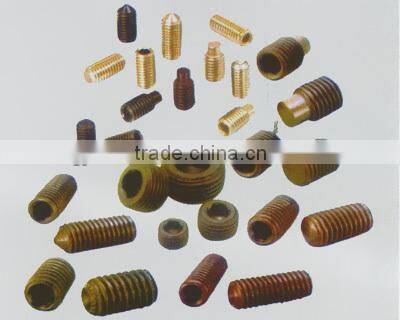

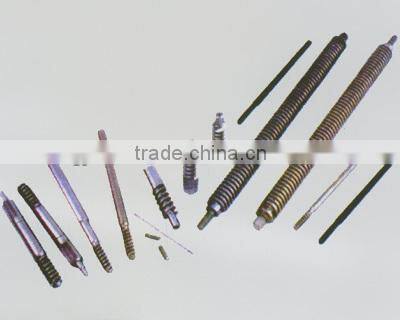

bolt rod and screw threading machine is widely praised for its rational price,easy maintenance and high quality.besides axial and radial process,it is used to process regular and irregular bolt,through screw etc.with optional embossing roller.the through screw made with machine in zhejiang standard parts base has been exported to US,Canada and Europe.

Parameters:

Pressure of Roller max:150KN

Rotary speed of main shaft:36,47,60,78(r/min)

Working Dia:4-48mm

Feed speed of movable shaft: 5mm/s

OD of roller:120-170mm

Thread length(no limits)

BD od roller:54mm

main power:4KW

Roller width max:100mm

Hydraulic power:2.2KW

Dip Angle of Main Shaft:5

Weight:1700KG

Center Distance of Main shaft:120-240mm

Size:1500*1380*1140mm
