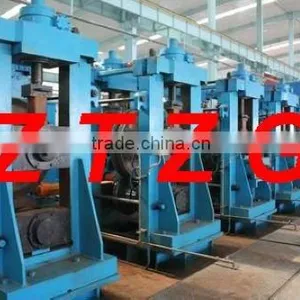

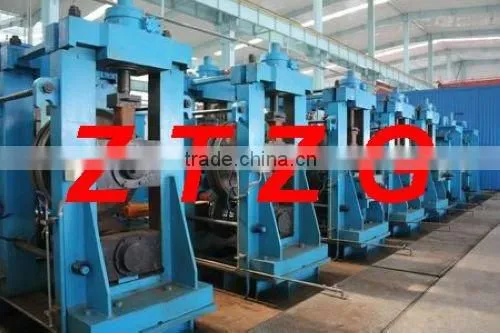

ERW 114 steel Pipe Making Machine

Specifications

Commodity: steel pipe making machine
Pipe OD: 50mm-114mm
Thickness: 1.5mm-5.0mm
Square tube: 40mm*40mm 90mm*90mm

Commodity: steel Pipe Making Machine For HG114



114mm welded pipe production line is designed to produce welded pipes of 50mm-114mm in OD and 1.5mm-5.0mm  in wall thickness, as well as corresponding square and rectangle tube.



II. Basic Technical Information:

1.Specification of pipes

Pipe OD: 50mm-114mm                  Thickness: 1.5mm-5.0mm

Square tube: 40mm×40mm 90mm×90mm, Thickness: 1.5mm-4.0mm

Length: 6 -12m                         Length Tolerance: ±3mm

2.Raw Material:

Material:   Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80

3. Tube mill

Production Speed : 20-50m/min

Direction : left to right or right to left from operator`s side decided by customers



III. The technical flow of the production line

Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →

Downloading → Packing →Warehousing



IV. Makeup of tube mill line

1. Double-reel Mechanical Uncoiler

2. Shear & Butt Welder

3. Cage Loop(Accumulator)

4. Tube mill

5. Solid State H.F. welder

6. NC Flying Saw

7. Output Rollway

8. Rollers
