Specifications
ERW76 round tube mill1,Pipe OD:32-76mm
2,Thickness:1.2-4.0mmmm
3,Length:6-12m
4,Material: low carbon steel

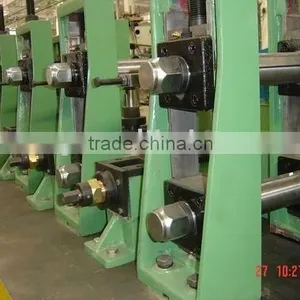

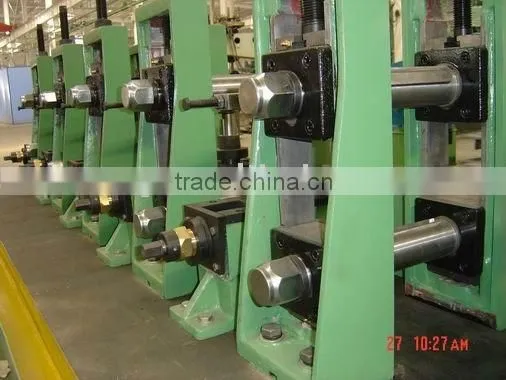

Commodity:ERW76 round tube mill
I.Brief introduction
erw76 high frequency longitudinal welded pipe production line / pipe making machine / tube forming machine is designed to produce welded pipes of 32mm-76mm in OD and 1.2mm-4mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 32mm-76mm Thickness: 1.2mm-4mm
Square & rectangle tube: 25mm×25mm – 60mm×60mm, Thickness: 1.5mm-3mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil Q235B(ASTM GR·D,σs 230)
3. Tube mill
Production Speed : 20-100m/min
Direction : left or right decided by customers.
Following is the main specification which we can produce:
Model |
Specification(mm) |
Thickness (mm) |
Working Speed (M/min.) |
|
Circular |
Rectangular/Square |
|||
HG20 |
8-20 |
10mm×10mm -15mm×15mm |
0.5-1.5 |
100 |
HG32 |
10-32 |
10mm×10mm -25mm×25mm |
0.3-2.0 |
100 |
HG50 |
20-50 |
20mm×20mm – 40mm×40mm |
0.8-3.0 |
100 |
HG76 |
32-76 |
25mm×25mm – 60mm×60mm |
1.2-4.0 |
100 |
HG89 |
42-89 |
25mm×25mm – 70mm×70mm |
1.5-4.5 |
70 |
HG114 |
48-114 |
40mm×40mm – 90mm×90mm |
1.5-4.5 |
65 |
HG140 |
60-140 |
40mm×40mm 110mm×110mm |
2-5 |
60 |
HG165 |
76-165 |
60mm×60m 130mm×130mm |
2-6 |
50 |
HG219 |
89-219 |
60mm×60mm – 180mm×180mm |
2-8 |
50 |
HG273 |
114-273 |
80mm×80mm – 200mm×200mm |
3-10 |
45 |
HG325 |
140-325 |
90mm×90mm – 250mm×250mm |
4-12.7 |
40 |
HG377(355) |
165-377(355) |
90mm×90mm – 280mm×280mm |
4-14 |
35 |
HG406 |
219-406 |
130×130mm-330mm×330mm |
6-16 |
30 |
HG508 |
273-508 |
|
6-18 |
25 |
HG660 |
325-660 |
|
6-20 |
20 |
