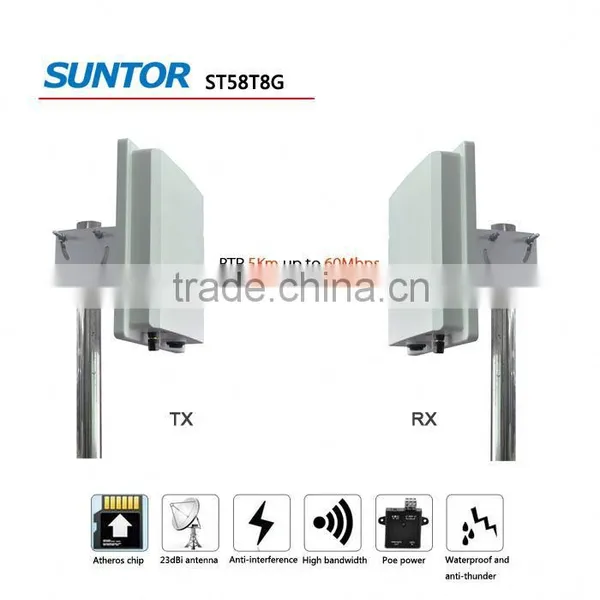

7km 5GHz Outdoor Audio Video Transmitter and Receiver CPE
Modulation: OFDM
Frequency: 5150-5825MHz
Transmit Power: 29±2dBm

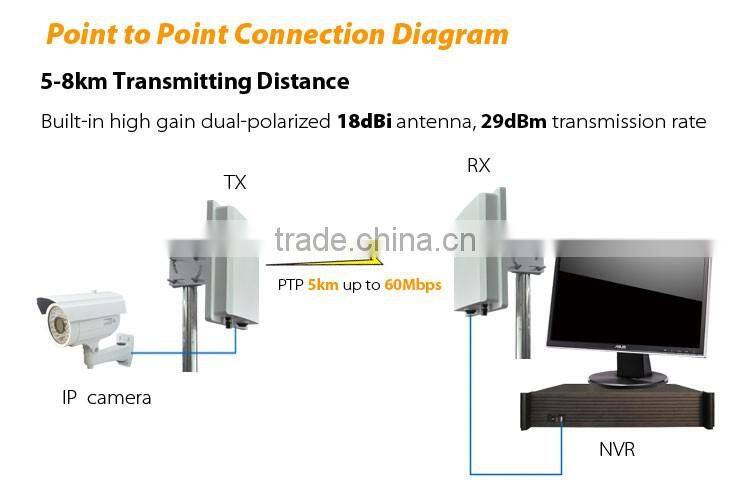

Wireless Mode:PTP and PTMP
Support Range: 5-8km(LOS)

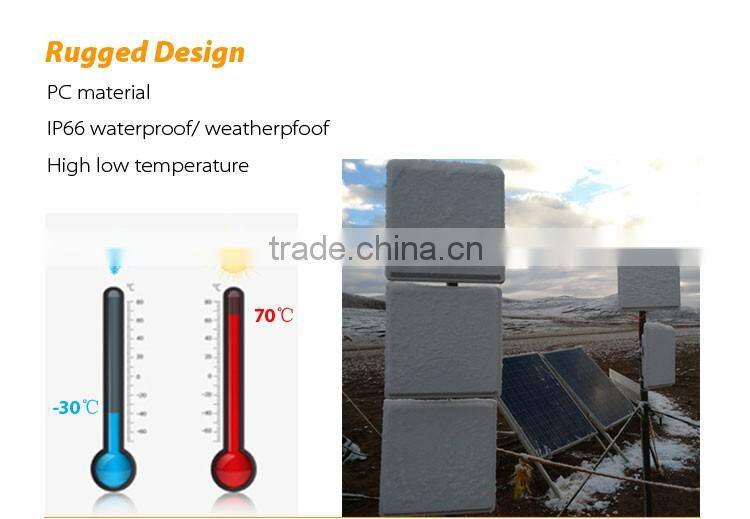

Operation temperature: -30°C~ +70°C
Function: Audio video and network signal
Features

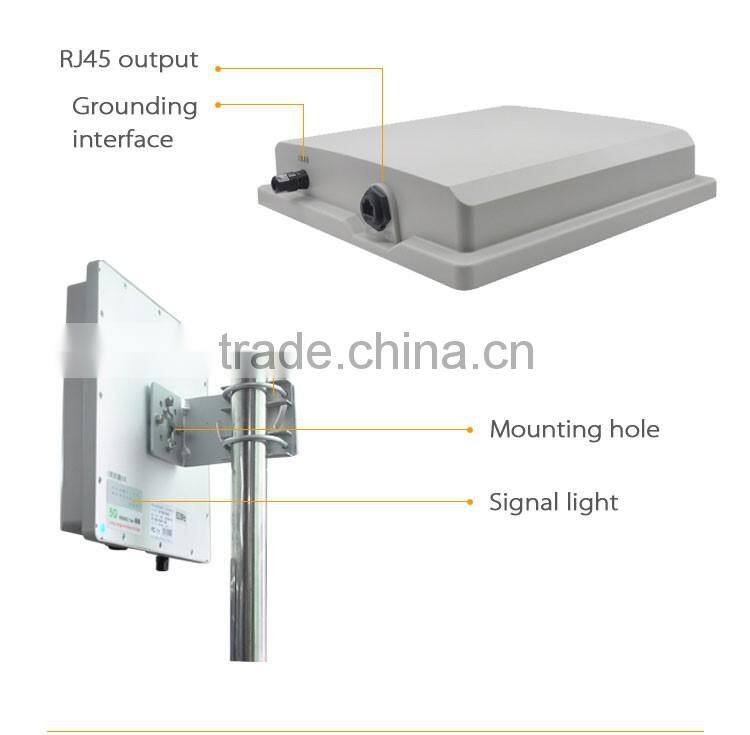

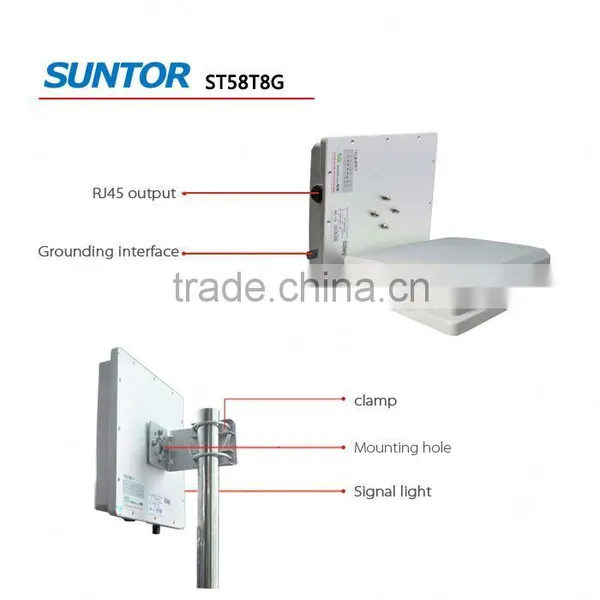

- Built-in 18dBi panel antenna, more convenient in installing.
- High Transmission Power up to 29dBm and Extended excellent Range and Coverage(fewer APs)

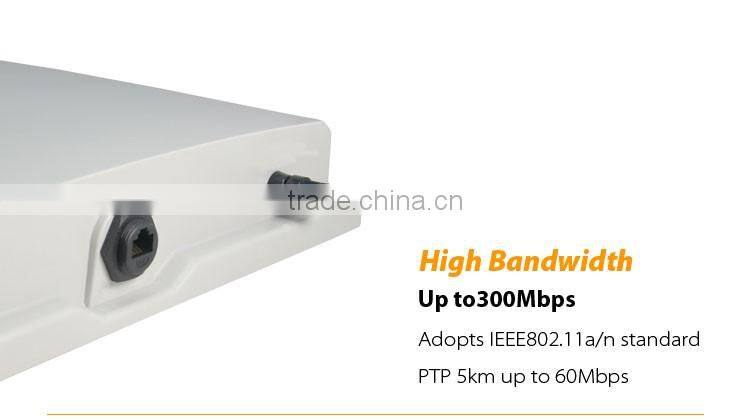

- High Speed Data Rate Up to 300Mbps 2T2R, the transmission signal is strong and stable.

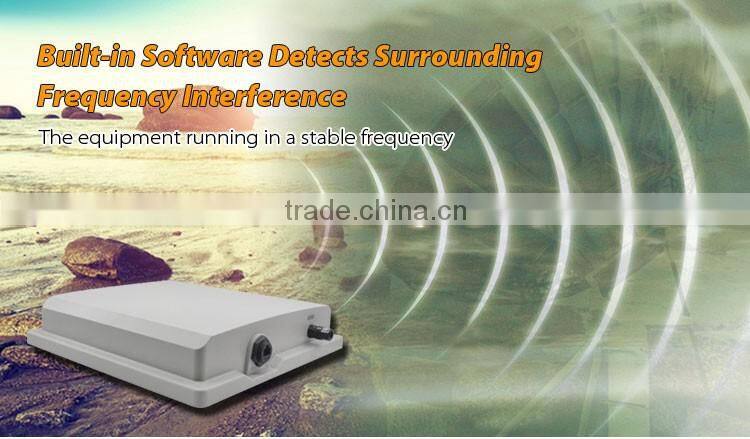

- Built-in Software Detects Surrounding Frequency Interference, use the best channel to transmit stable
- Simultaneously as a wireless repeater up to 8 links
- Multifunction application Access Point/WDS Bridge/Client Bridge + Repeater mode
Product Name |
7km 5GHz Outdoor Audio Video Transmitter and Receiver CPE |
Model |
ST58T8G |
Standards Compliance |
IEEE 802.11a/n; IEEE802.3; IEEE802.3u |
CPE Processor |

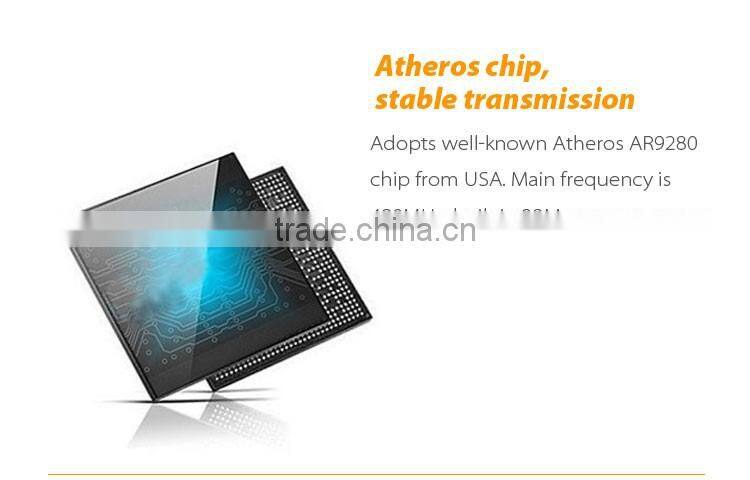

Atheros AR7240+AR9280 |
SDRAM |
32 M Byte |
Flash |
8 M Byte |
Radio Frequency Type |
OFDM |
Modulation |
IEEE 802.11a: OFDM with BPSK, QPSK, 16QAM, 64QAM |
Frequency Band |
5.15 ~ 5.25 GHz (lower band) 5.25 ~ 5.35 GHz (middle band) 5.725 ~ 5.825 GHz (hi-band) |
Transmission Power |
29±2dBm |
Transmission Rate |
IEEE 802.11a: 6/9/12/18/24/36/48/54/108 Mbps |
Access Point Interfaces |
Auto sensing MDI/MDI-X Ethernet 10/100Base-T x 2: RJ-45 |
Sensitivity |
IEEE 802.11a:-94dBm @ 6Mbps; -74dBm @ 54Mbps, PER<10% |
Antenna Type |
Integrated 18dBi dual-polarized directional antenna |
Security Systems |
64-bit/128-bit/152-bit WEP encryption; WPA/ WPA2 (-PSK or -EAP with TKIP/AES encryption); 802.1x Authenticator, EAP-PEAP/EAP-TTLS support for client mode; Hide SSID in beacons |
Wireless Setting |
Operation Mode – AP/ Client Bridge/ WDS Bridge PtP and PtMP (up to 16 links)/ Client Router Auto/Fixed Channel Selection (Setting varies by Country) Adjustable transmit power by 1dBm step |
Operating Temperature |
-30 ~ +70°C |
Power |
Passive PoE DC18 Volt + 5%; 20Watt (Max.); AC adapter AC 100V ~ 240V |
Network Management |
Windows 2000/XP/Vista Home Basic/Windows 7 |
Warranty |
One year limited |
7km 5GHz Outdoor Audio Video Transmitter and Receiver CPE
7km 5GHz Outdoor Audio Video Transmitter and Receiver CPE
7km 5GHz Outdoor Audio Video Transmitter and Receiver CPE
Exhibition
Certificate
Q1: Is the Wireless bridge stability? Do they support lightning protection?
A: Yes. All the bridges adopt USA Atheros CREE XLamp, All of them have been experienced many time times testing. All the products built in anti-thunder module and with interface from where you can connect with a lightning protection equipment.
Q2: Can you make us a detailed solution?
A: Yes, we can. SUNTOR have done over 1,000 successful solutions in different field. We can provide a complete solution according to different requirement.
Q3: How to install?
A: Each product will be tested & debugged by QC so that each of them support plug and play. Besides that each package will have a CD to show you clearly how to install.
Q4: How to supply power?
A: All the wireless bridges support to be powered by DC48V PoE switch.
Q5: In remote area without internet, how does the bridge work?
A: The wireless bridge transmit signal by microwave and it no need of internet.
Q6: How long is the warranty?
A: As usual it is 1year. If you have special requirement, we can offer 2 years warranty.
Q7: What is its application filed?

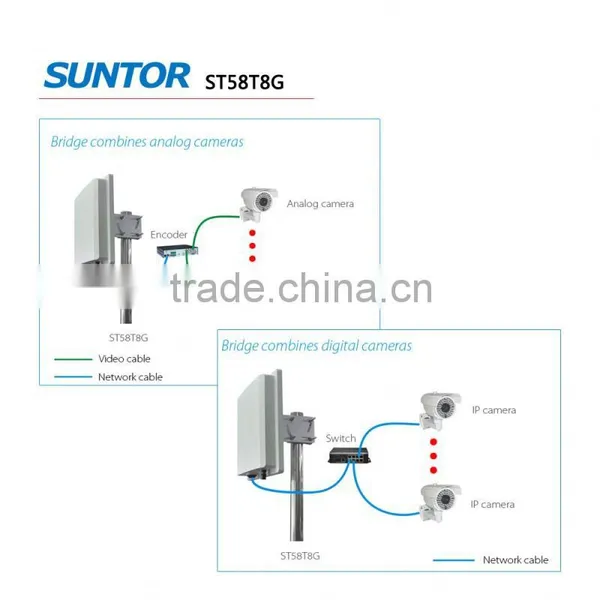

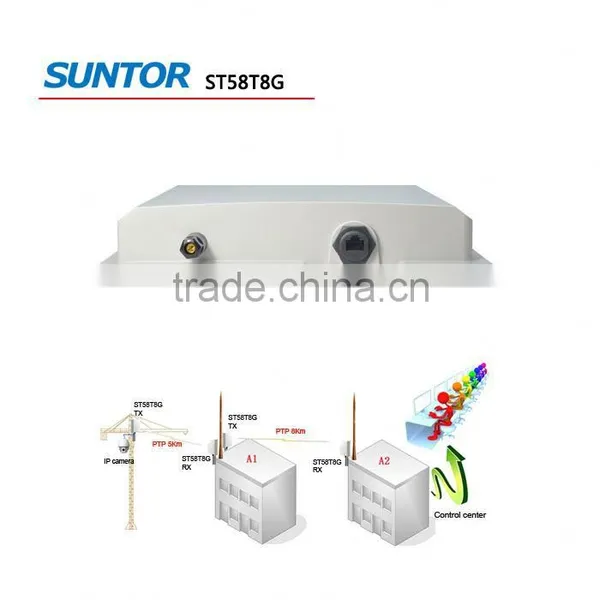

A: Wireless bridge transmit signal by microwave to instead cable. It have advantage in long distance transmitting. CCTV Projects we ever did are large scale building site, Mine, Petroleum, Forest Fire protection
system, Tunnel Construction, high way, safe city, parking lost, harbors and wharfs, military exercises and etc.
