Waterproof IP68 Metal Access Control Keypad with RFID 13.56Mhz Reader Quality Choice

FOB Price

USD $5 - $50 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Zhongshan
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Elock Security
Model Number	ES2000ESMF

Product Description

Waterproof IP68 Metal Access Control Keypad with RFID 13.56Mhz Reader

Features

1. Waterproof: Conforms to IP68

2. Strong Zinc Alloy Electroplated anti-vandal case

3. Full programming from the keypad

4. 2000 uses, supports Card, PIN, Card + PIN

5. Can be used as a stand alone keypad

6. Backlight keys

7. Wiegand 26 input for connection to external reader

8. Wiegand 26 output for connection to a controller

9. Adjustable Door Output time, Alarm time, Door Open time

10. Very low power consumption (30mA)

11. Fast operating speed, <20ms with 2000 users

12. Lock output current short circuit protection

13. Easy to install and program

14. Built in light dependent resistor (LDR) for anti tamper

15. Built in buzzer

16. Red, Yellow and Green LEDS display the working status

17. Certificate: CE, Rosh, CMA

Specification

Product	Waterproof IP68 Metal Access Control Keypad
Model	ES2000ESMF
Size	120 x 56 x18mm
Frequency	13.56Mhz Mifare Card
User Capacity	2000
Card Reading Distance	3-10 cm
Operating Voltage	DC 12V±10%
Active Current	<60mA
Idle Current	25±5 mA
Voltage	12-18VDC
Lock Output Load	Max 3A
Alarm Output Load	Max 20A
Operating Temperature	-45°C~60°C
Operating Humidity	10%- 90% RH
Waterproof	IP68
Adjustable Door Relay time	0 -99 seconds
Adjustable Alarm Time	0- 3 minutes
Wiegand Interface	Wiegand 26 bit
Wiring Connections	Electric Lock, Exit Button, External Alarm,External reader
Weight	Approx. 0.5 kg
Standard Packing	10pcs

Packing

Carton Size: 40x32x16cm

Qty/Carton: 10pcs

N.W: 5 KG

G.W: 6 KG

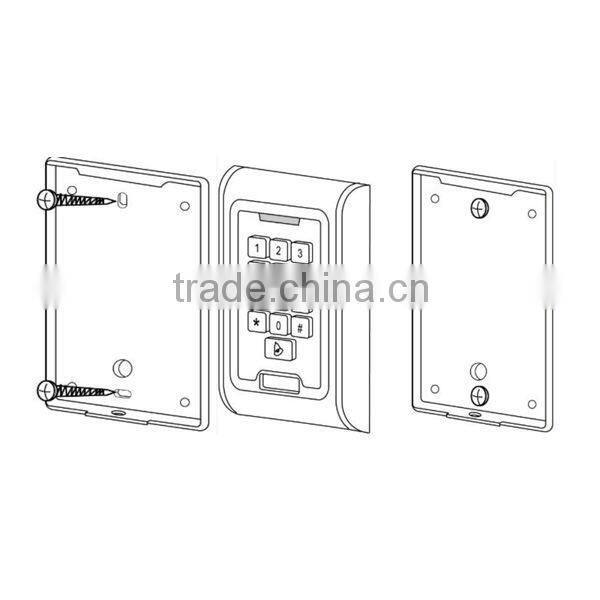

Installation

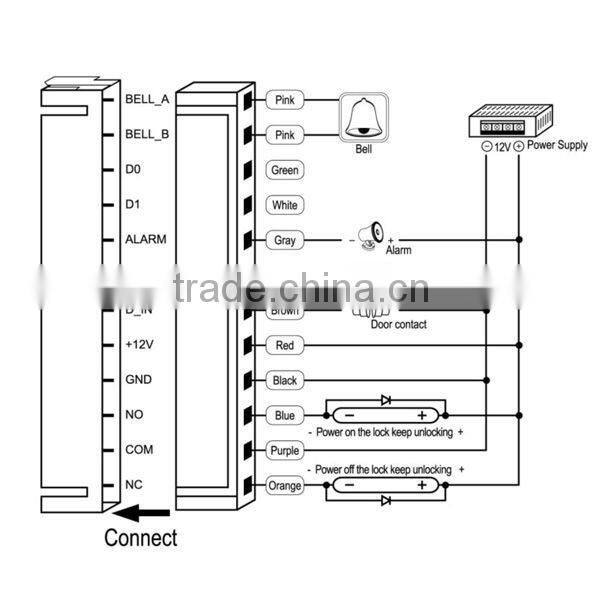

Wiring diagram

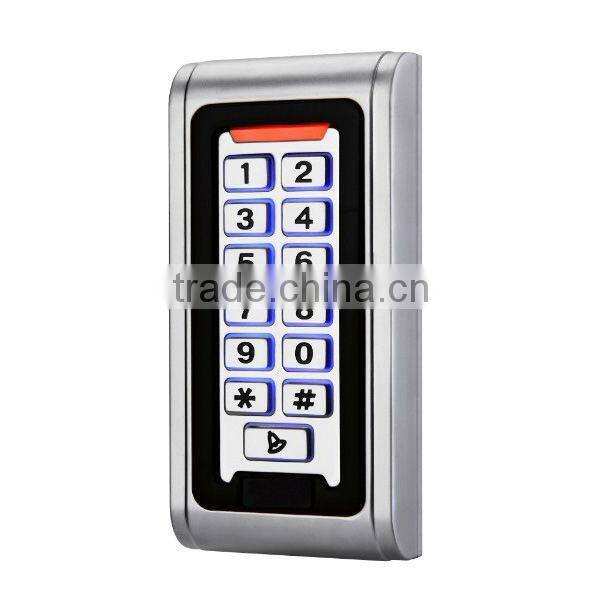

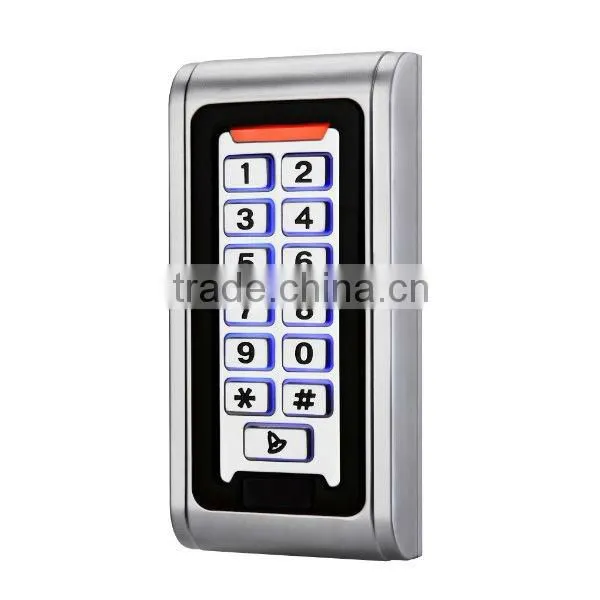

Sample photo

Payment

If the total payment is less than 500USD, we usually accept Western Union or Paypal.

For big amount we accept bank transfer.

Shipment

Normally we will use UPS, DHL, FEDEX or EMS express. Shipping usually takes 3-7 working days depending on the country delivered to.

Warranty

Warranty for two years if the damage is not caused by human.
