Specifications
1) Metal Standalone Access Control2) Waterproof IP68
3) Frequency: 13.56Mhz
4) Capacity: 2000 users
5) CE Approved

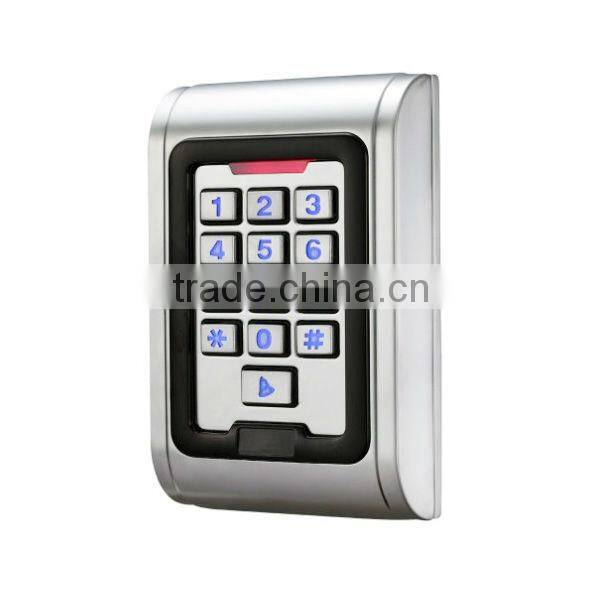

Metal Standalone Access Control with RFID 13.56Mhz Reader, Waterproof IP68
Features
1. Waterproof: Conforms to IP68
2. Strong Zinc Alloy Electroplated anti-vandal case
3. Full programming from the keypad
4. 2000 uses, supports Card, PIN, Card + PIN
5. Can be used as a stand alone keypad
6. Backlight keys
7. Wiegand 26 input for connection to external reader
8. Wiegand 26 output for connection to a controller
9. Adjustable Door Output time, Alarm time, Door Open time
10. Very low power consumption (30mA)
11. Fast operating speed, <20ms with 2000 users
12. Lock output current short circuit protection
13. Easy to install and program
14. Built in light dependent resistor (LDR) for anti tamper
15. Built in buzzer
16. Red, Yellow and Green LEDS display the working status
17. Certificate: CE, Rosh, CMA
Specification
Product | Metal Standalone Access Control |
Model | ES2000EMF |
Size | 120 x 80 x 25mm |
Frequency | 13.56Mhz Mifare Card |
User Capacity | 2000 |
Card Reading Distance | 3-10 cm |
Operating Voltage | DC 12V±10% |
Active Current | <60mA |
Idle Current | 25±5 mA |
Voltage | 12-18VDC |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45°C~60°C |
Operating Humidity | 10%- 90% RH |
Waterproof | IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bit |
Wiring Connections | Electric Lock, Exit Button, External Alarm,External reader |
Weight | Approx. 0.75 kg |
Standard Packing | 10pcs |
Packing
Carton Size: 40x32x16cm
Qty/Carton: 10pcs
N.W: 7.5 KG
G.W: 8.5 KG
Installation
Wiring diagram
Sample photo
Payment
If the total payment is less than 500USD, we usually accept Western Union or Paypal. |
For big amount we accept bank transfer. |
Shipment
Normally we will use UPS, DHL, FEDEX or EMS express. Shipping usually takes 3-7 working days depending on the country delivered to. |
Warranty
Warranty for two years if the damage is not caused by human. |
