supply most popular p16 outdoor full color stage rental ed display
- 3000 Square Meter / Square Meters per Month
- Guang zhou Shen zhen
- Credit Card
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Cheng wen | Model Number: | p16 outdoot full color |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 16mm, 16mm | Screen Dimension: | for buyers, 256*256mm 128*256mm ..... |
Product Description
Specifications p16 outdoor full color led display stage rental
1.high brightness Stable capability
2.Easy operate,light weight
4.Long Life Span,1years warranty
> 16mm physical pixel pitch and virtual pixel pitch for delivering picture more clear and vivid, no flicker and blind dots.
> Easy maintaining, front service access or rear service access is available.
> Manufactured in a waterproof and dust-proof design, working very well in rain and sunshine.
> Each module mask provides shades to DIP LED’s and allows for more visibility while the sun is shining.
> Static constant driving and >2800Hz high refresh rate, against reducing video quality by camera.
Visual Parameter | |
Pixel Pitch: | 16 mm |
Pixel Density: | 3906 pixels/m2 |
Pixel Configuration: | DIP346 |
Module Dimension: | 256*256 mm |
Cabinets Dimension: | 1024*1024 mm |
Cabinets weight: | 45 kg/cabinet |
Cabinet Material: | Aluminum alloy |
Performance Parameter | |
Brightness: | >6,500nits |
Best Viewing Distance: | 16m ~ 48m |
Average Power Consumption: | 450 w/m2 |
Max Power Consumption: | 980 w/m2 |
Scan Mode: | Constant static |
Viewing Angle: | Horizontal angle: 120 degree, Vertical angle: 60 degree |
Gray Scale Level: | 14 bit |
Refresh Rate: | >2,800Hz |
LED Lifetime: | >50,000 hours |
Environment Parameter | |
Input Voltage: | 100~240vAC, 50/60Hz |
Operating Temperature: | -20°C~50°C |
Operation Humidity: | 10%~90%RH |
Ingress Protection: | Front IP65, rear IP54 |
Control Parameter | |
Control System: | NOVA / LINSN |
Compatible video interface: | YC, VGA, DVI, YUV, SDI, RGB, CVBS, HD-SDI |
All product specifications are for reference only and subject to change without prior notice;
Please contact sales for details
High Brightness P16 Led display stage rental Advantage
1)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal
2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.
3)The brightness can be adjustable to meet the need of changing requirement of customer in environment
4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
6) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
7) Steady and reliable system, with strong anti-interference ability and long service life that can continually work for over 24 hours,and it’s easy to operate the system.
8) Convenient installation and maintenance of display modules
Trade Terms:
1.Payment: T/T , 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2.Production lead time for 100~500pcs: 10days, 500~1000pcs:15days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Guangzhou Mainland China
6.Discounts are offered based on order quantities
Our service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information .
Basic knowledge of led screen:
A. What is LED?
LED is the abbreviation leds (LIGHT EMITTING DIODE), it’s emit visible wavelengths led in the led video display industry
B. what is a pixel and pixel pitch?
The pixel is the smallest unit of light-emitting, consists of red, green and blue colors. The same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
C. what is the DIP, SMT and SMD?
DIP is DOUBLE IN - LINE PACKAGE, dual-in-line assembly
SMT is FACE SURFACE MOUNTED technology, Is currently one of the most popular technology in the electronic assembly industry;
SMD is SURFACE MOUNTED DEVICE.
P2.5 mini led display screen adopt SMD technology
D. what is the LED display module?
The base unit determined by circuit and installation structure, has the display function, can simple assembling.
E. What is 3 in 1? What is its advantages and disadvantages?
is the RGB color of LED chips encapsulation SMT light vertical tied together according to certain spacing.
The advantages are: simple production, display effect is good,
The disadvantage is spectral color separation difficult, high cost;

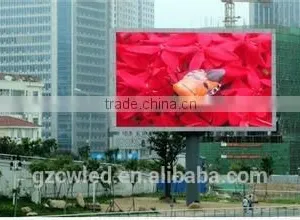

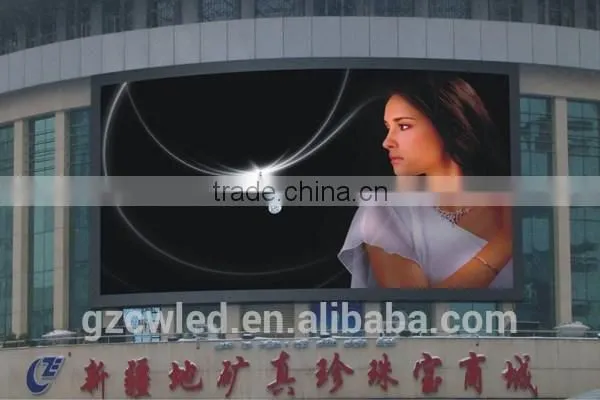

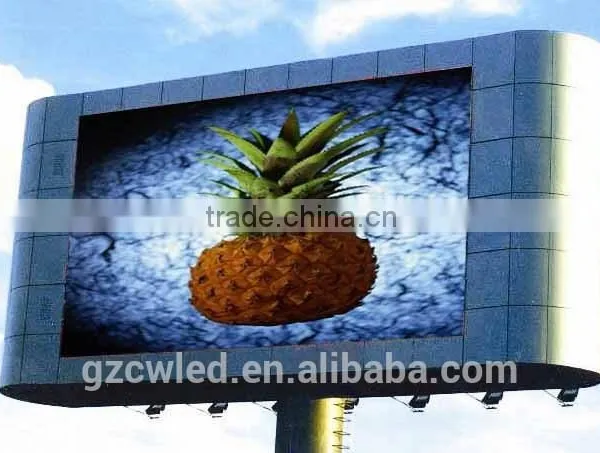

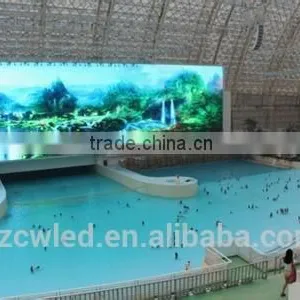

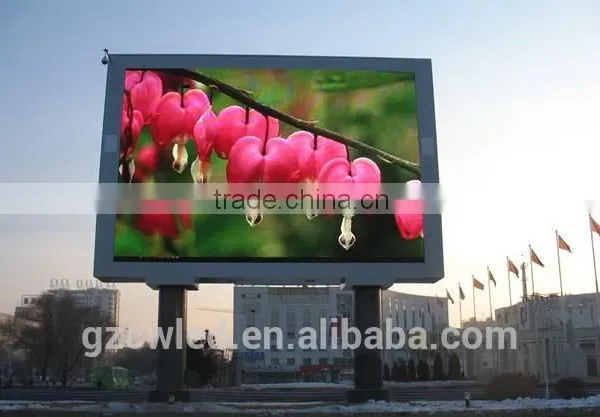

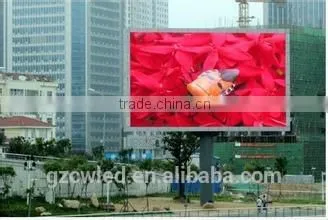

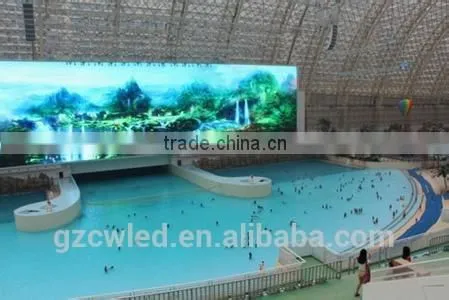

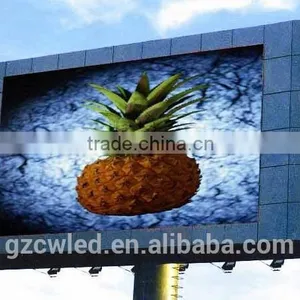

production picture
