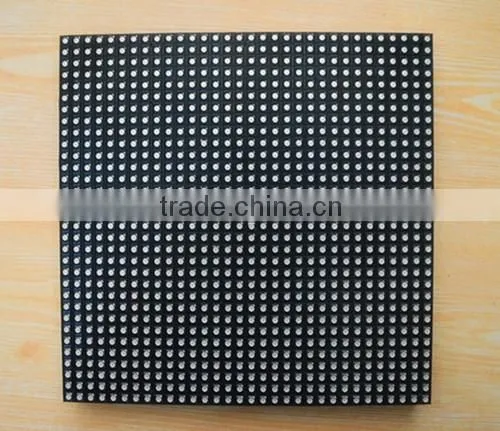

full color P6 indoor LED stage display
specification
number |
Item name | Parameter and index |
| 1 | LED encapsulation mode | SMD 3528 Surface mounted |
| 2 | Horizontal axis | 160° |
| 3 | Vertical axis | 160° |
| 4 | Pixel composition | 1R1G1B |
| 5 | Pixel pitch | 6mm |
| 6 | Scan method | 1/8 Scan |
| 7 | Drive method | Constant current |
| 8 | Module resolution | 32dots× 32dots |
| 9 | Module dimensions | 192x192mm |
| 10 | Module working voltage | +5V |
| 11 | Average Power Consumption | 6.25W |
| 12 | Cabinet Maximum Power Consumption | 25W |
| 13 | Module shell material | PC |
| 14 | Module mask material | PC |
| Entire screen | ||
| 1 | Application environment | indoor |
| 2 | White balance brightness | >1800cmd |
| 3 | White balance coordinates | X=0.29,Y=0.31 |
| 4 | contrast | 64000:1 |
| 5 | Color temperature | 8000K |
| 6 | Pixel density(pixels/m2) | 27777 |
| 7 | Average consumption(W/m2) | 212Hz |
| 8 | Maximum consumption(W/m2) | 848Hz |
| 9 | Power source | AC220V/50HZ or AC110V/60HZ |
| 10 | Operating temperature | -10°C~ +45°C |
| 11 | Operating humidity | 10%~90% |
| 12 | Storage humidity | -30°C ~ +50°C |
| 13 | Refresh frame rate | 60Hz |
| 14 | Refresh rate | 480Hz |
| 15 | Viewing distance | 6-100m |
| 16 | grayscale/color | 16.7M |
| 17 | Brightness adjustment | 100 manual levels /100 auto levels |
| 18 | Control method | synchronous with the computer display |
| 19 | signal transfer distance | Network cable:100m |
| 20 | Computer operating system | WINDOWS(98,2000,XP,Vista,7) |
| 21 | Video signal | VGA,DVI,RF,Video,RGB,RGBHV,YUV,YC,COMPOSITION and so on. |
| 22 | MTBF | ≥10000 hours |
| 23 | Longevity | ≥100000 hours |
product features
1. Seamless - precision die casting aluminum panel, light weight and more durable.
2. Quality SMD LEDs - with wide viewing angle to ensure vivid and sharp images and video.
3. Energy saving- lower power consumption and protect environment.
4. High refresh rate and high gray scale - ensures the LED display to take on more perfect images.
5. Noiseless - silence with no fan design.
6. Easy and fast installation- no tool assembly and disassembly with patented quick lock for seamless
assembly and performance.
product show
our company
display box
package
our services
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information .
FAQ
What kind of payment can you choose?
T/T ,Western Union
What kind of package can you choose?
wooden case, carton, air flight case, etc.And if you choose wooden case or air flight case ,there will be extra charge.
How long will it take before our delivery?
Less than one week
Can you visit our factory in china?
Warmly welcomed you to visit us ,and the person who is responsible will guide you to scan the workshop every step, you will know the rough producing situation, then you will trust us .
