Specifications
1.On-line double conversion UPS2.IGBT and SPWM technologies
3.Wide input voltage range
4.Built-in isolation transformer

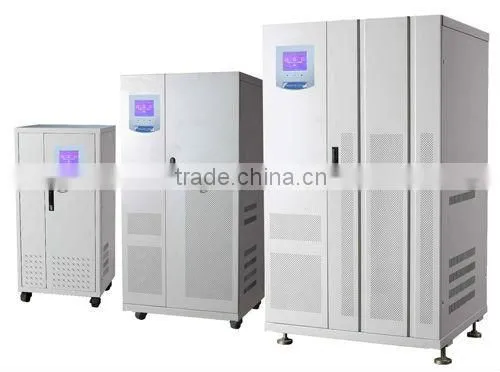

Product Description:
1.True on-line double conversion UPS.
2.Extremely wide input voltage range and ultra-strong capability against overload.
3.Low frequency online UPS with IGBT and SPWM technologies applied.
4.Built-in isolation transformer.
5.User-friendly digitized LCD with system information available at a glance.
6.Strong self-diagnosis and protective functions.
7.Smart RS232 port for computer monitoring.
8.Can cold-start directly and smart operation for users.

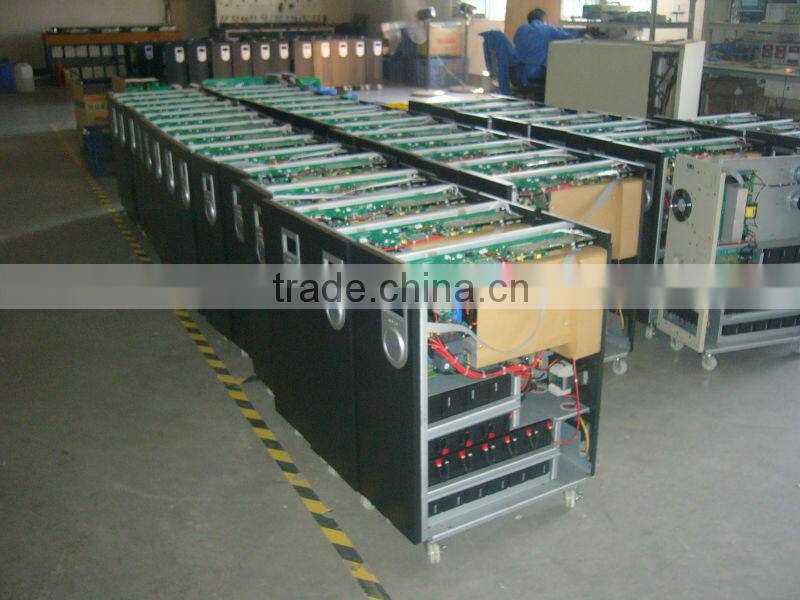

Our factory production line, warehouse:
Online low frequency UPS technical data specs:
Three phase in/single phase out (10KVA-50KVA)
ModelLP-B**** |
1034L |
1534L |
2034L |
3034L |
4034L |
5034L |
|
Capacity |
10KVA/8KW |
15KVA/12KW |
20KVA/16KW |
30KVA/24KW |
40KVA/32KW |
50KVA/40KW |
|
Input |
3PH 4W+G 380V±20% 50Hz/60Hz±5% |
||||||
Efficiency |
>90% |
>92% |
>93% |
||||
Battery voltage |
384VDC |
||||||
surrounding |
Audible noise |
<60dB |
<65dB |
||||
|
Size W×D×H( mm) |
265×570×730 |
396×640×1100 |
396×922×1100 |
||||
Weight (kg) |
85/110 |
125/155 |
155/185 |
215/245 |
320/350 |
380/410 |
|
Output |
Waveform |
Genuine sine wave THD<3% |
Voltage stability |
220V±1.5% |
|
Frequency |
come after input (commercial mode) 50Hz/60Hz±0.5Hz(battery mode) |
|
Temporary reaction |
100%load change±4% |
|
Crest ratio |
3:1 |
|
Power factor |
0.8lagging |
|
Protection |
overload protection |
|
battery voltage-lack protection,overheat protection | ||
Display |
LED |
USP normal;inverter;bypass;fault; |
LCD |
Input and output voltage/frequency,battery voltage,load. |
|
Audible alarm |
power-off:keeping sound every 4 seconds; |
|
|
Voltage-lack:keeping sound every 4 seconds; failure or battery use up:continuously keeping | ||
Port |
Communication Port |
RS232/RS485 |
Surrounding |
Temperature Humidity |
0-40°C,90% |
