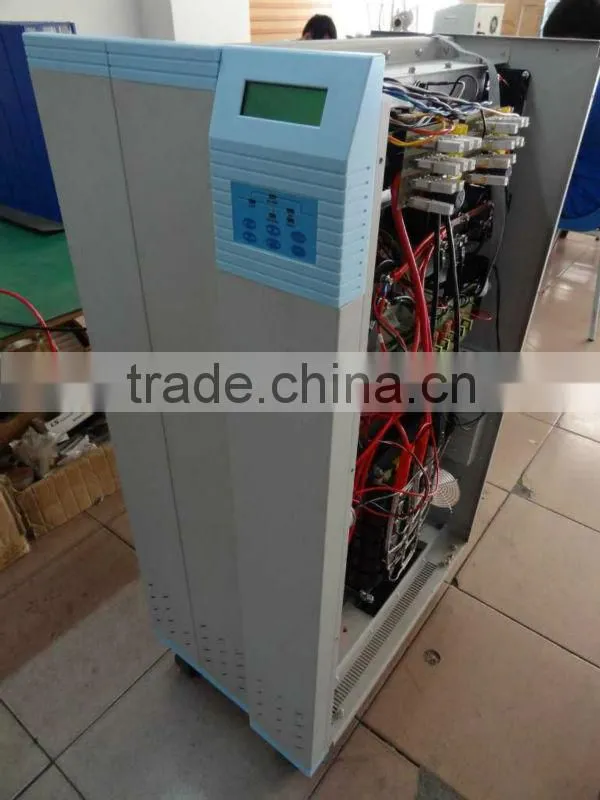

Three phase in single phase out LP-B10KVA-50KVA low frequency online UPS

FOB Price

USD $1,200 - $3,500 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Foshan

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Greentechy
Model Number	LP-B10KVA-50KVA	Phase	Three Phase
Protection	Other, Overload,overheat,battery voltage-lack	Weight	85-410
Output Voltage	220V±1.5%	Type	Other, On-line, Low frequency online
Application	Other, Industry,bank,telecom,hospital

Product Description

Specifications

1. On-line double conversion UPS
2. IGBT and SPWM technologies
3. Wide input voltage range
4. Built-in isolation transformer

Product Description:

1.True on-line double conversion UPS.
2.Extremely wide input voltage range and ultra-strong capability against overload.
3.Low frequency online UPS with IGBT and SPWM technologies applied.
4.Built-in isolation transformer.
5.User-friendly digitized LCD with system information available at a glance.
6.Strong self-diagnosis and protective functions.
7.Smart RS232 port for computer monitoring.
8.Can cold-start directly and smart operation for users.

Technical Specification:

Three phase in/single phase out (10KVA-50KVA)

ModelLP-B****		1034L	1534L	2034L	3034L	4034L	5034L
Capacity		10KVA/8KW	15KVA/12KW	20KVA/16KW	30KVA/24KW	40KVA/32KW	50KVA/40KW
Input		3PH 4W+G 380V±20% 50Hz/60Hz±5%
Efficiency		>90%			>92%		>93%
Battery voltage		384VDC
surrounding	Audible noise	<60dB			<65dB
Size W×D×H( mm)		265×570×730	396×640×1100			396×922×1100
Weight (kg)		85/110	125/155	155/185	215/245	320/350	380/410

Output	Waveform	Genuine sine wave THD<3%
	Voltage stability	220V±1.5%
	Frequency	come after input (commercial mode) 50Hz/60Hz±0.5Hz(battery mode)
	Temporary reaction	100%load change±4%
	Crest ratio	3:1
	Power factor	0.8lagging
Protection		overload protection
Protection		battery voltage-lack protection,overheat protection
Display	LED	USP normal;inverter;bypass;fault;
Display	LCD	Input and output voltage/frequency,battery voltage,load.
Audible alarm		power-off:keeping sound every 4 seconds;
Audible alarm		Voltage-lack:keeping sound every 4 seconds; failure or battery use up:continuously keeping
Port	Communication Port	RS232/RS485
Surrounding	Temperature Humidity	0-40°C,90%
