Home > Electrical & Electronics > Power Supply & Distribution > UPS > HP-C1K-3K High Frequency True Online UPS/Genuine Sine Wave Best Service in China

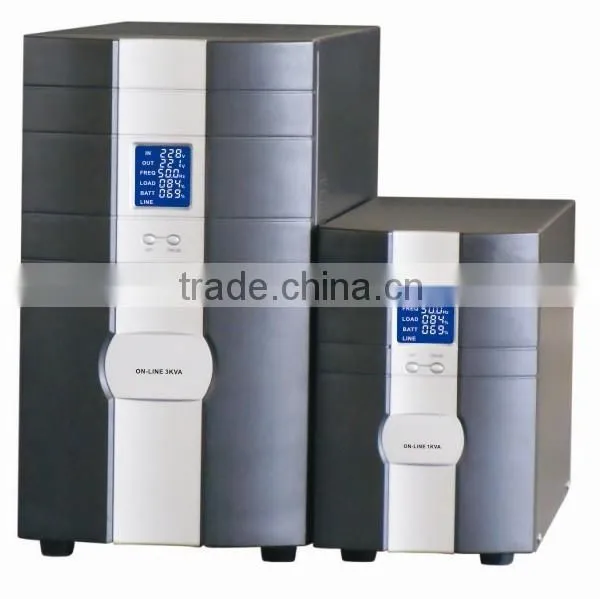

HP-C1K-3K High Frequency True Online UPS/Genuine Sine Wave Best Service in China

HP-C1K-3K High Frequency True Online UPS/Genuine Sine Wave Best Service in China thumbnail-1
HP-C1K-3K High Frequency True Online UPS/Genuine Sine Wave Best Service in China photo-1
US$ 100 - 280 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Greentechy
Model Number:
HP-C1K-3K
Contact Supplier Request Quote Chat Now
Foshan Greentechy Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Greentechy
Model Number HP-C1K-3K
Phase Single Phase
Protection Other, Short Circuit, Overload
Weight 7-34.5
Output Voltage 220/230VAC
Type Other, On-line, High frequency online indoor UPS
Application Other, All kinds office equipment,ATM,network

Specifications

1. Genuine on-line design
2. High input power factor
3. DC start & Auto restart function
4. compatible with the generator

Features:

  1. Genuine on-line design.
  2. Advanced IGBT power components,enhancing the ocerall reliability and inverting efficiency of the machine.
  3. Wide input voltqge and frequency range,compatible with the generator.
  4. High input power factor.
  5. Zero transfer time.
  6. Smart local and distant monitoring capability with RS232 port,and compatible with SNMP.
  7. Controlled by fully digitized microprocessor.
  8. Completely purified sine wave power output.Aborative function design,convenient for the users.
  9. Self diagnosis and protectin.
  10. On-battery power-on funation.Auto start on when the mains comeback.
  11. Site wiring fault warning.
  12. LCD display with information available at a glance.



Model: HP-
E1022M/L,JE1022L
E2022M/L,JE2022L
E3022M/L,JE3022L
C1022M/L,JC1022L
C2022M/L,JC2022L
C3022M/L,JC3022L
Max.capacity
(cosΦ=0.7)
1000VA
2000VA
3000VA



Input

Input wiring

Single-phase line two+Ground line

Voltage range
118-300 LOAD<50%, 140-300VAC 50%≤LOAD<70%%
160-300VAC LOAD≥70%

Frequency range
46--54 Hz

Power factor
>0.95


Output
Voltage
220VAC±2%
Frequency

Input synchronized the supply frequency(line mode), 50 Hz±0.2%(Battery mode)

Power factor
0.7
Current crest ratio
3:1
Wavefrom
Sine wave

Overload capacity
 110%-150% load, change to bypass after 30 seconds, 150% load holds 300ms
Efficiency
>90%
>91%
>91%

Voltage of the battery
36VDC
96VDC
Transfer time
Zero interruption
Automatic Bypass
Integrated
Indicator

Indicates load/battery capacity,UPS running states etc

Audible alarm
Battery discharge

Sounding every 4 seconds when mains fails
 Sounding every 1 second when battery exbausts
Abnormal
Beeping continuously
Communication interface

RS232+SNMP(option)

Operating environment
Temperature
0--40
Humidity
20%-90%,No condensate
External/Shipping Size
(W×D×H)
482×450×88/550×535×215
External/Shipping Size
(W×D×H)
145×400×220/
230×485×315
192×460×340/
330×590×470
Net/Gross weight(kg)
9/11
11.5/13.5
12.5/14.5
Net/Gross weight(kg)
12.1/13.7
31/33
31.5/33.5
Net/Gross weight(kg)
5.7/7.7
14.8/16.8
15/17
Option
(SNMP Adapter),(Battery cubicle)
