Unique Products Around World Dual Color 5.0 Indoor Led Display

Unique Products Around World Dual Color 5.0 Indoor Led Display photo-1
Unique Products Around World Dual Color 5.0 Indoor Led Display photo-2

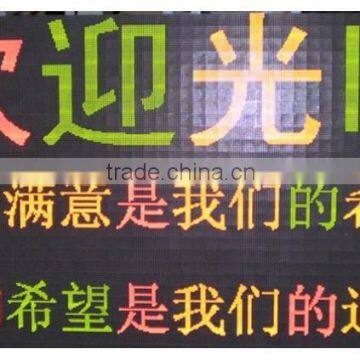

Unique Products Around World Dual Color 5.0 Indoor Led Display photo-3

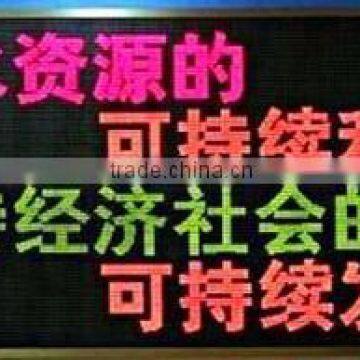

Unique Products Around World Dual Color 5.0 Indoor Led Display photo-4

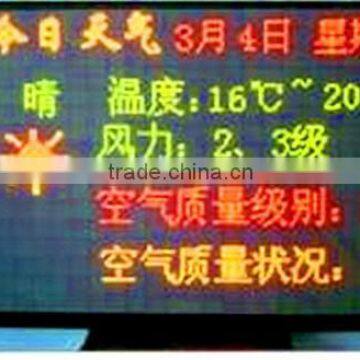

Unique Products Around World Dual Color 5.0 Indoor Led Display photo-5

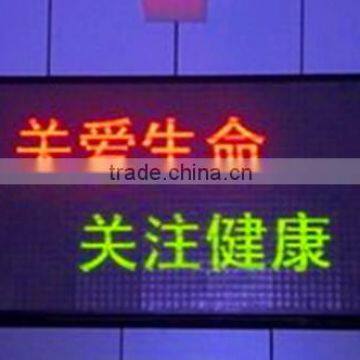

Unique Products Around World Dual Color 5.0 Indoor Led Display photo-6
US$ 1 - 5 MOQ: 2 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Cheng Wen
Model Number:
5.0
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Cheng Wen
Model Number 5.0
Usage Indoor
Tube Chip Color Other, 1R1G
Display Function Graphics
Pixels Other, 7.62mm
Screen Dimension customized size

  dual color 5.0 indoor led display

specification

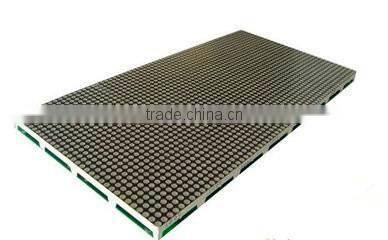

Φ5.0 Double Color Indoor Module
ItemUnitParameter
Pixel Pitchmm7.62
Resolution of Moduledots 64×32
Module Sizemm488×244
Module Weightkg1.14-1.16
Pixel Configuration                   1R1G
Chip Brand of LEDsEpistar
Pixel Densitydots/sqm17,222
Brightness (White Balance)nits(cd/sq.m)500
Red Wavelengthnm620-625
Green Wavelengthnm520-525
Blue Wavelengthnm470-475
Scan Mode                           1/16 Scan
Viewing Distance M2--24
Best View DistanceM5--8
Viewing Angle-Horizontaldeg.120
Viewing Angle-Verticaldeg.120
Module Maximum PowerW33.3
Max. Power ConsumptionW/sq.m250
Avg. Power ConsumptionW/sq.m75
Working Voltage                         40A 5V
Power Supply                         AC 110/220V
Refresh RateHz/S300
Frame RateHz/S 60
Gray Scale                           256 grade
Display Function                       Text
Input Signal                 RS232/485, USB,Ethernet
Luminance Degradation Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25°C.
Defective Dot Rate                            <0.0001
Life Spanhours100,000
MTBFhours>5,000
Storage Temperature°C-35 -- +80
Working Temperature°C         -20 -- +60
Working Humidity                             10-90%RH
Warrenty1 Years
Working EnvironmentIndoor
Note: The above parameter is just for reference. Changes can be made according to customers' requirements.

product features

1. Seamless - precision die casting aluminum panel, light weight and more durable.

2. Quality SMD LEDs - with wide viewing angle to ensure vivid and sharp images and video.

3. Energy saving- lower power consumption and protect environment.

4. High refresh rate and high gray scale - ensures the LED display to take on more perfect images.

5. Noiseless - silence with no fan design.

6. Easy and fast installation- no tool assembly and disassembly with patented quick lock for seamless

 assembly and performance.

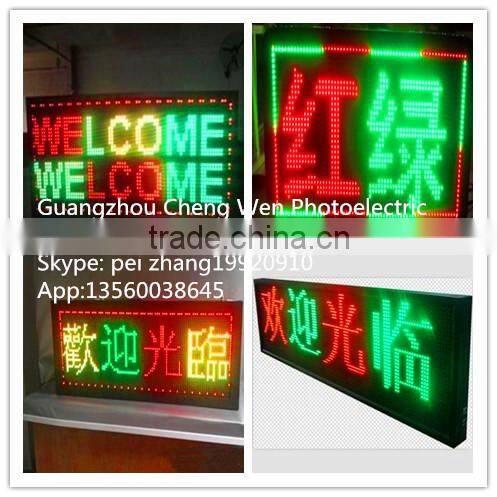

product show



unique products around world dual color 5.0 indoor led displayunique products around world dual color 5.0 indoor led display

 our company

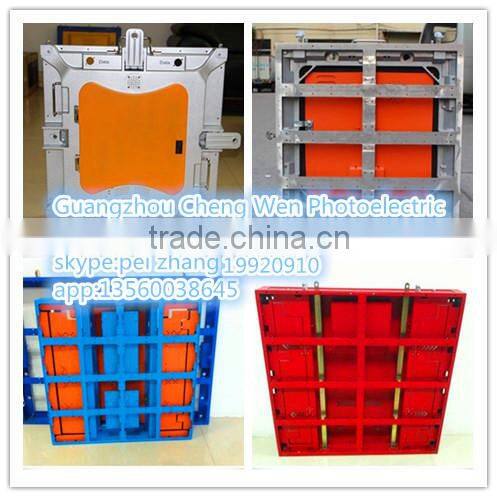

display box
