Paper Edge Protector Line

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Product Type:

Other

Processing Type:

Other

Amc (Shanghai) Industrial Development Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Product Type Other

Processing Type Other

Place of Origin Shanghai, China

Brand Name AMC

Model Number ZJK150DPU

Voltage 380V

Power(W) 12.25KW

Dimension(L*W*H) 22600x1400x1925mm

Weight 5800KGS

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

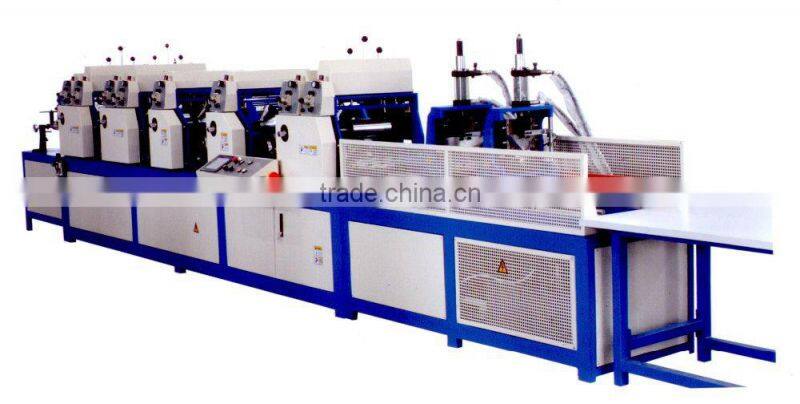

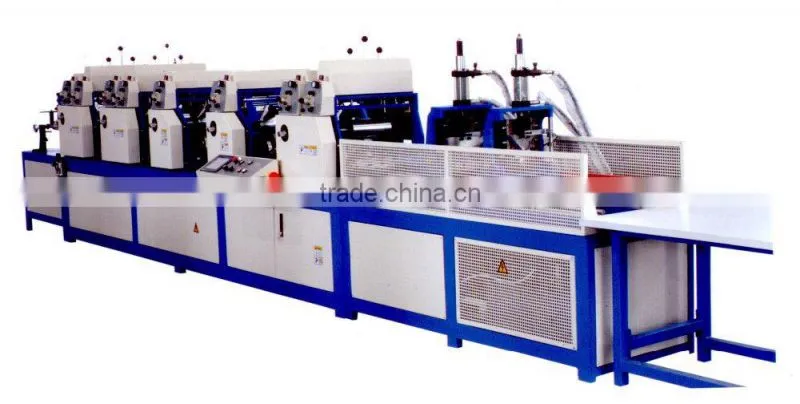

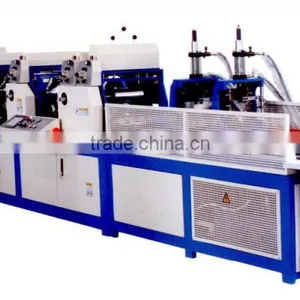

ZJK150DPU Paper Protector line

(For making L profile, U profile edge protector and flat board)

Characteristics:

ZJK150DPU model is for making L profile edge protector, U profile edge protector and flat board and maximum working speed is 30m/min for making L profile edge protector, 20m/min for making U profile protector and 25m/min for making flat board.
Only adjust position of forming moulds for producing edge protector of different profile, doesn’t need to change moulds.
Air cylinder for forming pressure regulating.
Touch screen and servo system make ZJK150DPU machine easy for operating and with cutting precision of ±1mm per meter.
With function of automatic malfunction alarm.
Automatic counter for calculating production.
It is easy to disassemble and change the forming wheel.
Gluing section can supply glue with fixed volume automatically.
